1981 Yamaha XJ550R (XJ550RH) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1981 Yamaha XJ550R (XJ550RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

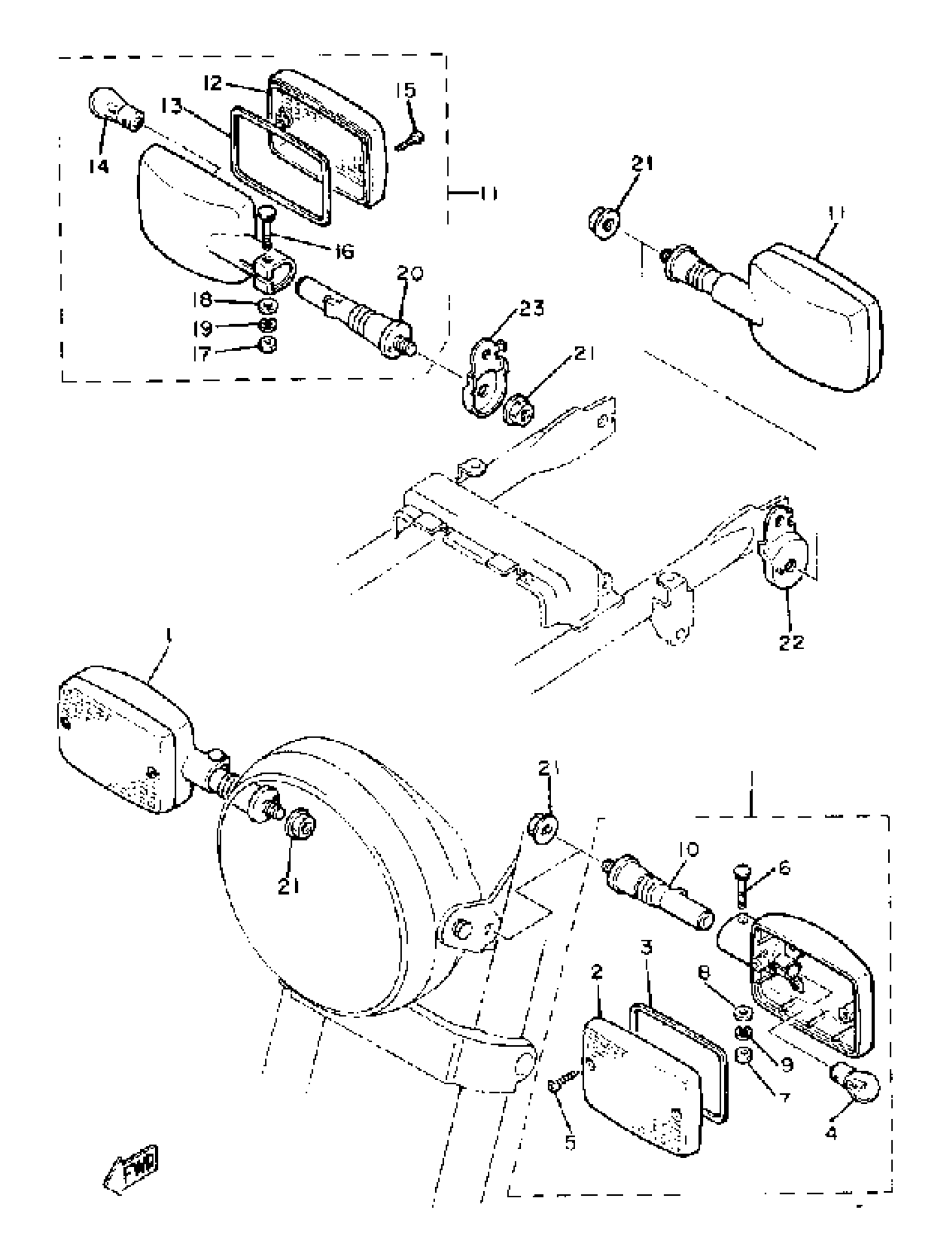

1981 Yamaha XJ550R (XJ550RH) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT FLSHR LITE ASY

4G0-83310-20-00

1
Out of stock

2

. LENS, FLASHER

4G0-83312-00-00

1
Out of stock

3

. GASKET, FLASHER LENS

4G0-83313-00-00

1
Out of stock

4

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

5

SCREW,TAPPING

97701-40618-00

1
Out of stock

6

. BOLT, FLASHER 1

4G0-83317-00-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

STAY, FLASHER 1

4G0-83318-00-00

1
Out of stock

11

FRT FLSHR LITE ASY

4G0-83310-20-00

1
Out of stock

12

. LENS, FLASHER

4G0-83312-00-00

1
Out of stock

13

. GASKET, FLASHER LENS

4G0-83313-00-00

1
Out of stock

14

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

15

SCREW,TAPPING

97701-40618-00

1
Out of stock

16

. BOLT, FLASHER 1

4G0-83317-00-00

1
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

18

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

19

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

20

STAY, FLASHER 1

4G0-83318-00-00

1
Out of stock

21

NUT(3GG)

90179-12588-00

—

$5.65

In stock

22

STAY, FLASHER

4G0-83368-00-00

1
Out of stock

23

STAY, FLASHER

4G0-83369-00-00

1
Out of stock
