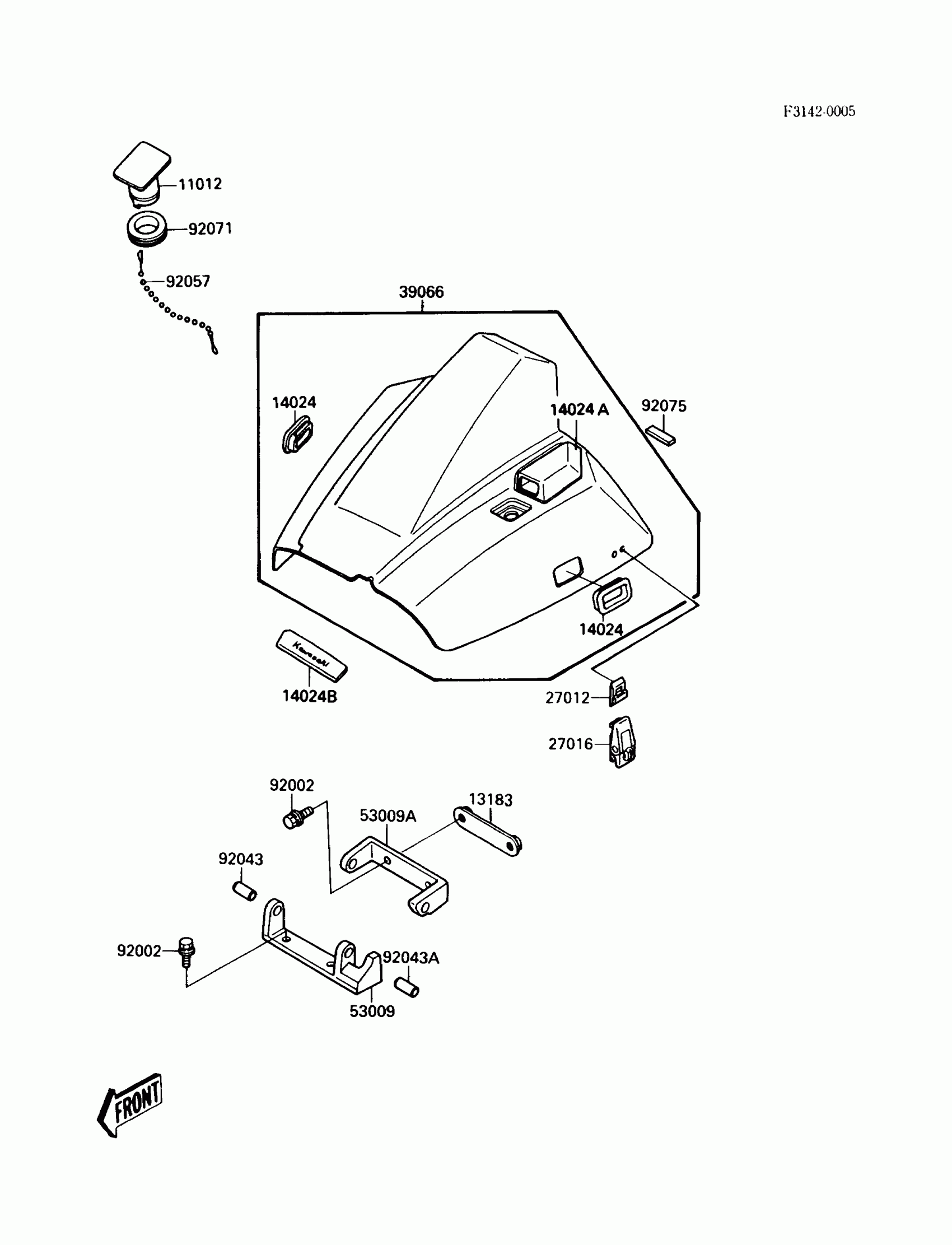

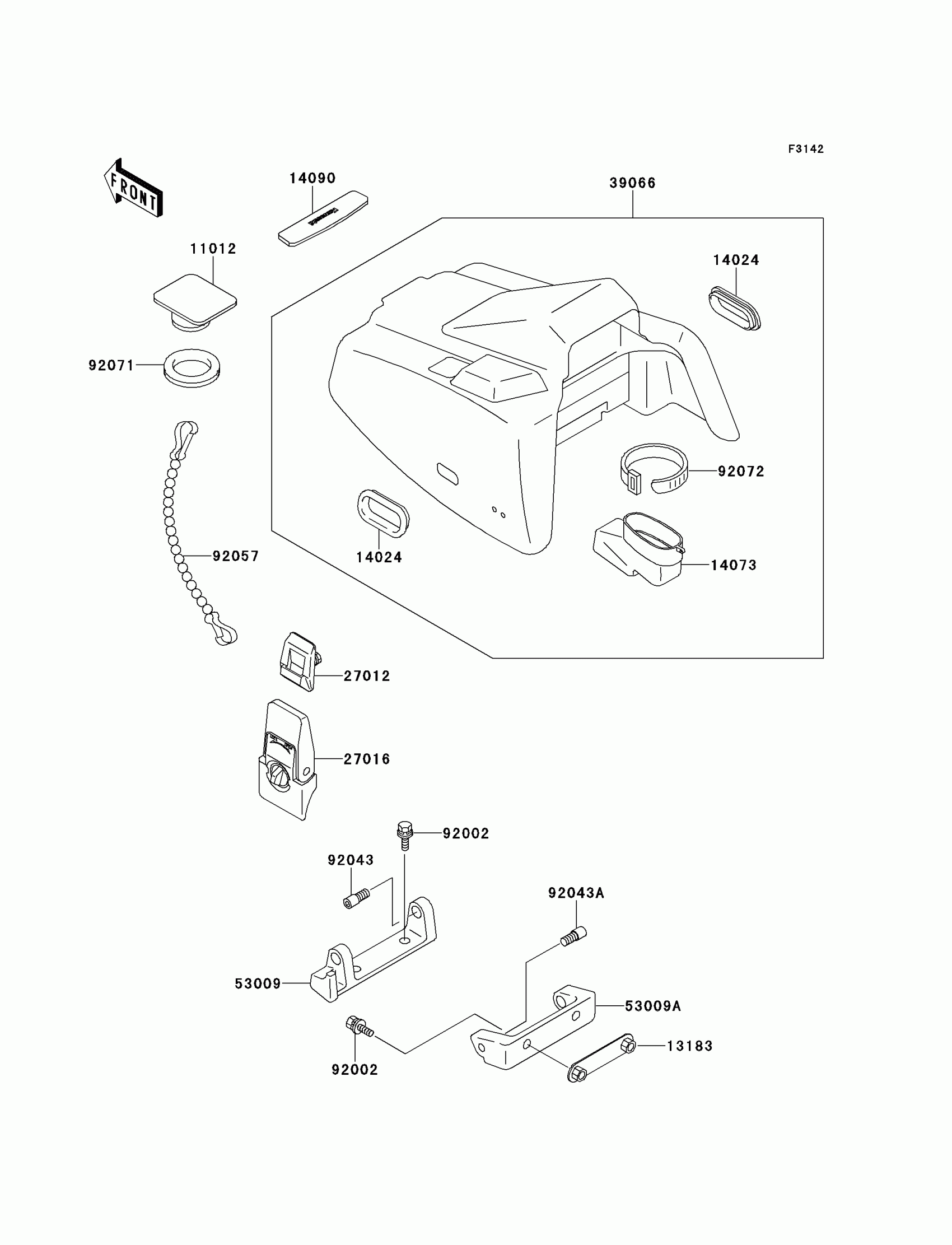

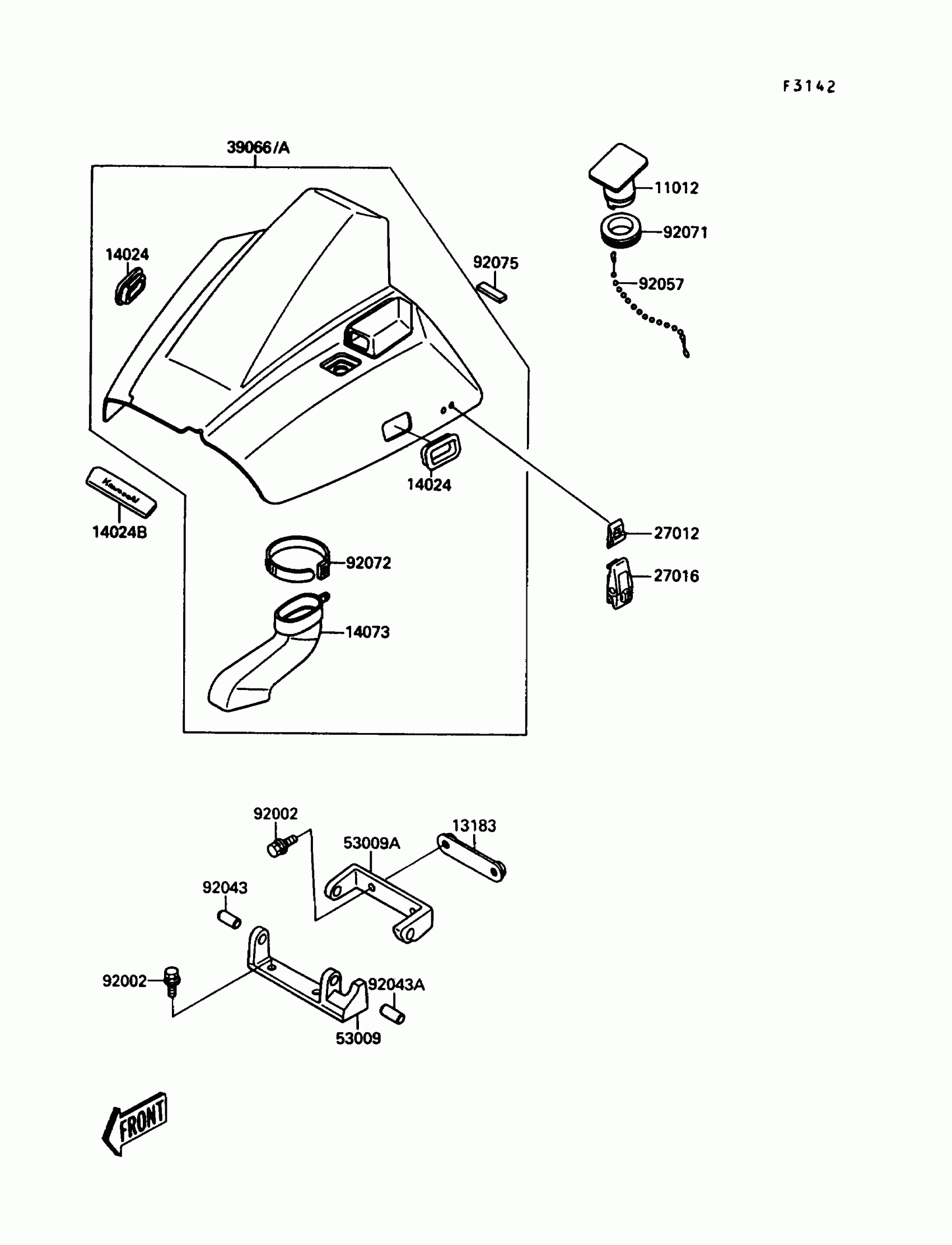

Kawasaki X2 Engine Hood Diagram

#

Description

Price

11012

CAP,ENGINE HOOD,JET WHITE

11012-3711-8C

Unavailable

13183

PLATE

13183-3706

Unavailable

14024

COVER,ENGINE HOOD,JET WHITE

14024-3714-8C

Unavailable

14024A

COVER,ENGINE HOOD,JET WHITE

14024-3730-8C

Unavailable

14024B

COVER,ENGINE HOOD,FR

14024-3740

Unavailable

27012

HOOK,ENGINE HOOD LOCK

27012-3719

$34.80

27016

LOCK-ASSY,ENGINE HOOD

27016-3706

Unavailable

39066

HOOD-ASSY-ENGINE,JET WHITE

39066-3703-8C

$467.95

53009

HINGE,DECK

53009-3703

Unavailable

53009A

HINGE,ENGINE HOOD

53009-3704

Unavailable

92002

BOLT,8X25

92002-3774

$7.76

92043

PIN,10X23

92043-3710

Unavailable

92043A

PIN,10X25

92043-3711

Unavailable

92057

CHAIN,COVER,L=250

92057-3701

Unavailable

92071

GROMMET

92071-3731

Unavailable

92075

DAMPER

92075-3757

Unavailable
