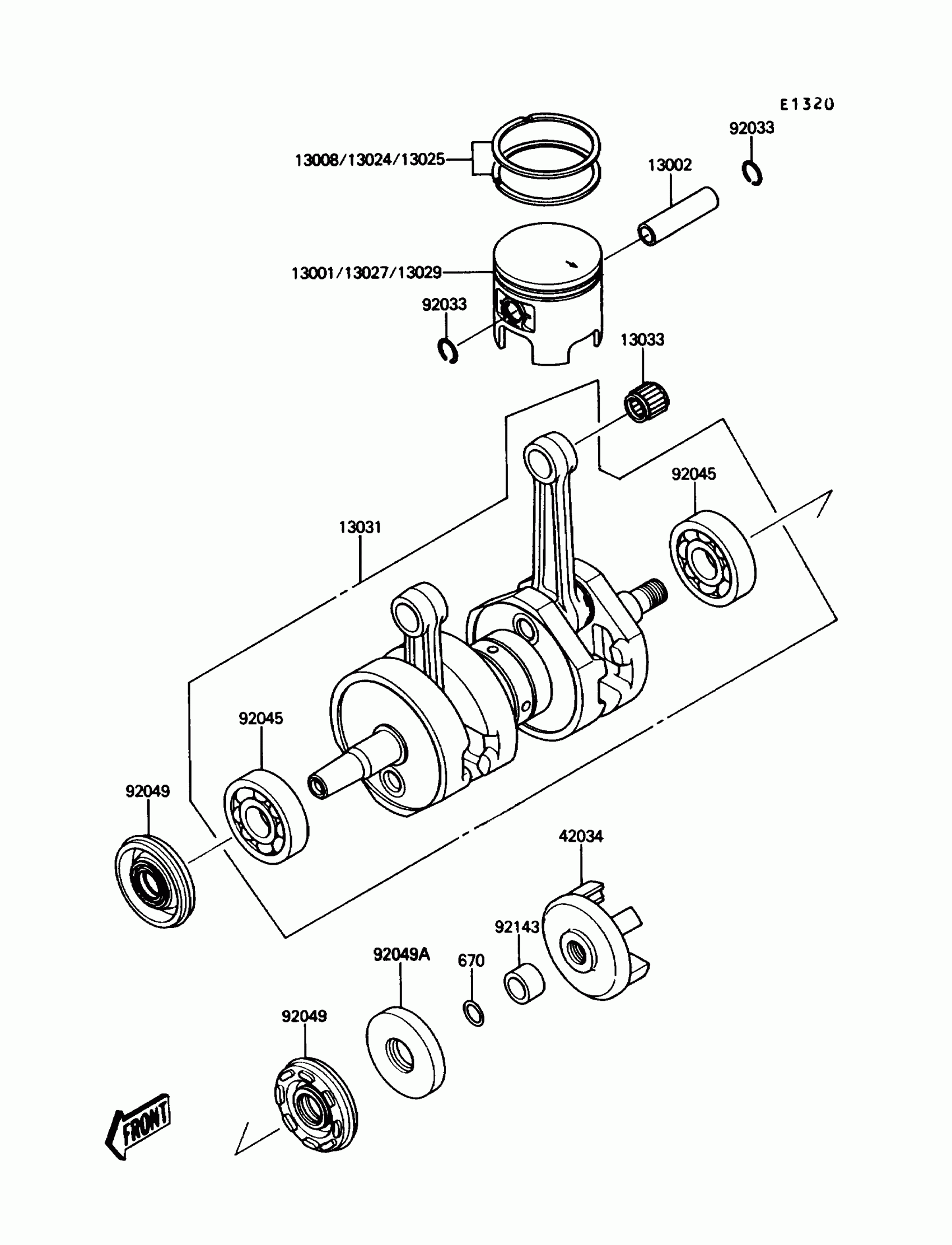

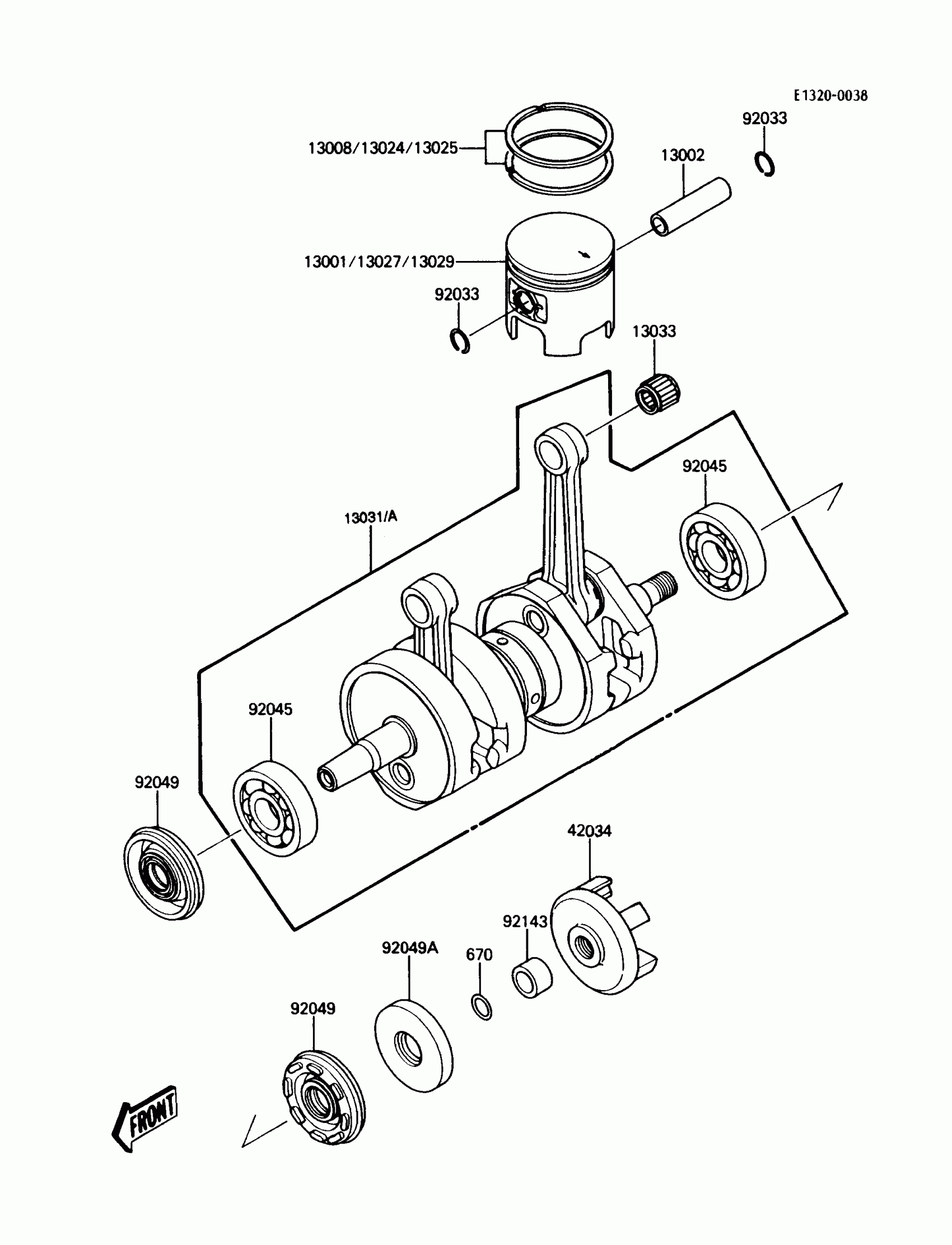

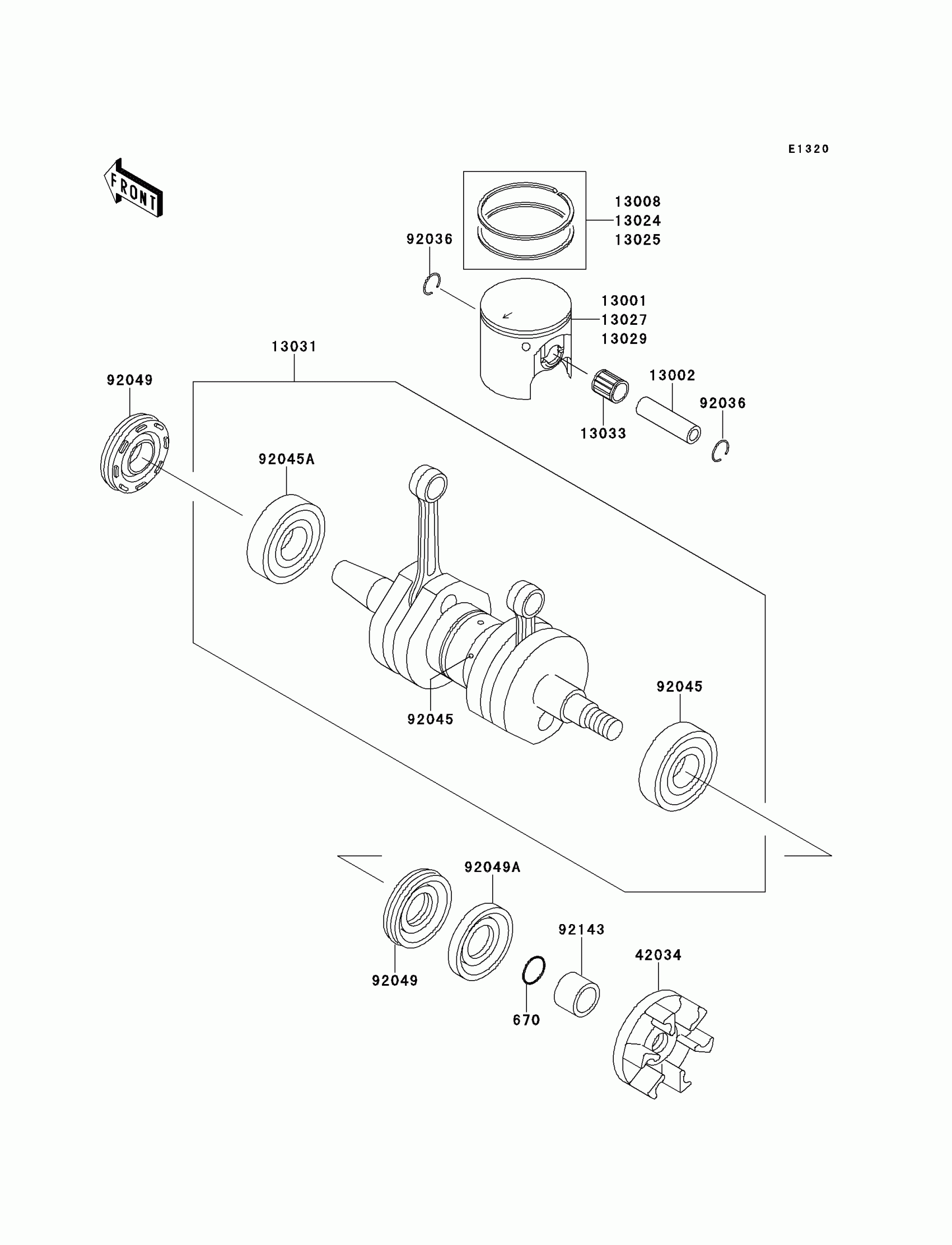

Kawasaki X2 Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-3701

Unavailable

13002

PIN-PISTON

13002-017

$30.56

13008

RING-SET-PISTON,STD

13008-5066

Unavailable

13024

RING-SET-PISTON LL,O/S 1.00

13024-5029

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-5030

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3701

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3701

Unavailable

13031

CRANKSHAFT-COMP

13031-3704

Unavailable

13031A

CRANKSHAFT-COMP

13031-3705

Unavailable

13033

BEARING-SMALL END

13033-1010

$20.40

42034

COUPLING

42034-3705

$65.75

92033

CIRCLIP-PISTON PIN

92036-015

$3.77

92045

BEARING-BALL,#6306

92045-037

$43.48

92049

SEAL-OIL,FWJ15307210

92049-3705

Unavailable

92049A

SEAL-OIL,S30726

92049-3706

$14.27

92143

COLLAR

92027-3713

Unavailable

670

O RING,14MM

670B2014

$0.93
