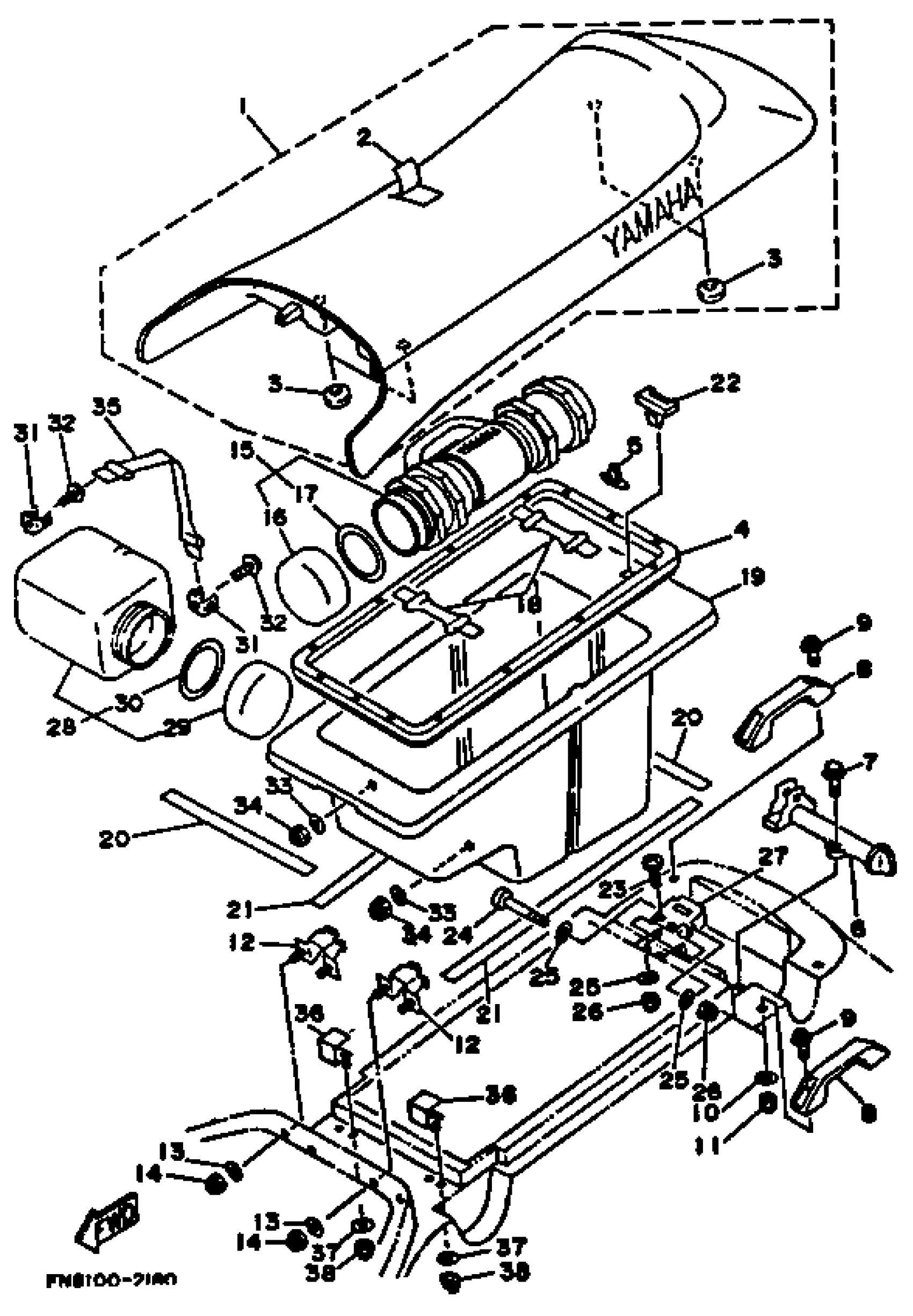

Find the part on the Seat diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha WRB650RA Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

GD0-U371A-00-00

1
Out of stock

2

. COVER, SEAT 1

GD0-U371B-00-00

1
Out of stock

3

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

4

PACKING 1

FN8-U2663-00-00

1
Out of stock

5

RIVET

90269-06916-00

1
Out of stock

6

SEAT, LOCK ASSY

FJ0-63850-31-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

8

GRIP, HAND

EU0-6271B-00-00

1
Out of stock

9

SCREW, WITH WASHER

90159-06904-00

1
Out of stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

12

STAY, SEAT 1

FN8-6378C-00-00

1
Out of stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

15

CASE 2 ASSEMBLY

EW2-65920-00-00

1
Out of stock

16

. CAP, CASE

EW2-65912-30-00

1
Out of stock

17

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock

18

BAND

EU0-67569-02-00

1
Out of stock

19

LOCKER,UNDER 2

FN8-U4742-02-00

1
Out of stock

20

PACKING 3

FN8-6266B-00-00

1
Out of stock

21

PACKING 4

FN8-6266C-00-00

1
Out of stock

22

LOCK, LID

FN8-65172-00-00

1
Out of stock

23

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

24

SCREW, PAN HEAD

90149-05977-00

1
Out of stock

25

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

26

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

27

HOOK, LID LOCK

FN8-U5174-00-00

1
Out of stock

28

CASE 1 ASSEMBLY

FN8-65910-00-00

1
Out of stock

29

. CAP, CASE

EW2-65912-00-00

1

$23.99

In stock

30

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock

31

HOOK A

EU0-65772-30-00

1

$10.49

In stock

32

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

33

WASHER, PLAIN (FJ0)

90201-06930-00

—
Out of stock

34

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

35

BAND

FJ0-67569-00-00

1
Out of stock

36

GUIDE

FN8-64744-00-00

1
Out of stock

37

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

38

NUT, FLANGE

95720-05300-00

1

$1.38

In stock
