1993 Yamaha WRB650RA Graphic Diagram

← All diagrams

Find the part on the Graphic diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

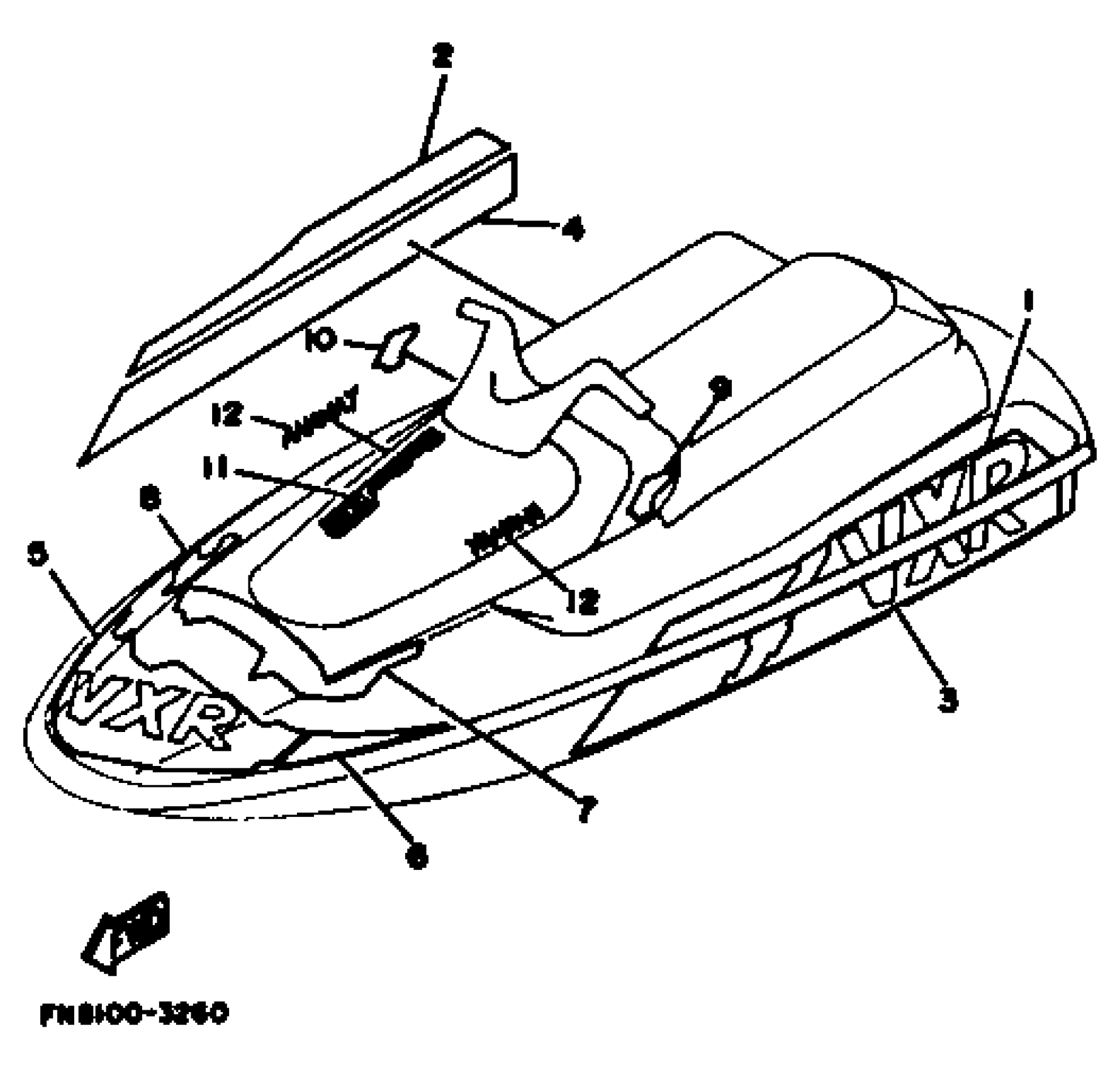

1993 Yamaha WRB650RA Graphic Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1 (L.H)

FN8-6417B-30-00

1
Out of stock

2

GRAPHIC A

FN8-64173-20-00

1
Out of stock

3

GRAPHIC B

FN8-64174-00-00

1
Out of stock

4

GRAPHIC 2 (R.H)

FN8-6417C-20-00

1

$136.99

In stock

5

GRAPHIC 3

FN8-6417D-00-00

1
Out of stock

6

GRAPHIC 4

FN8-6417E-00-00

1
Out of stock

7

GRAPHIC 5

FN8-6417F-00-00

1
Out of stock

8

GRAPHIC 6

FN8-6417G-00-00

1
Out of stock

9

GRAPHIC 7 (L.H)

FN8-6417H-10-00

1
Out of stock

10

UNAVAILABLE IN PRICE BOOK (R.H)

FN8-6416H-20-00

1
Out of stock

11

EMBLEM A

FN8-64121-30-00

1
Out of stock

12

EMBLEM, YAMAHA

99241-00160-00

1

$26.92

In stock
