1993 Yamaha WRB650RA Ventilation Diagram

← All diagrams

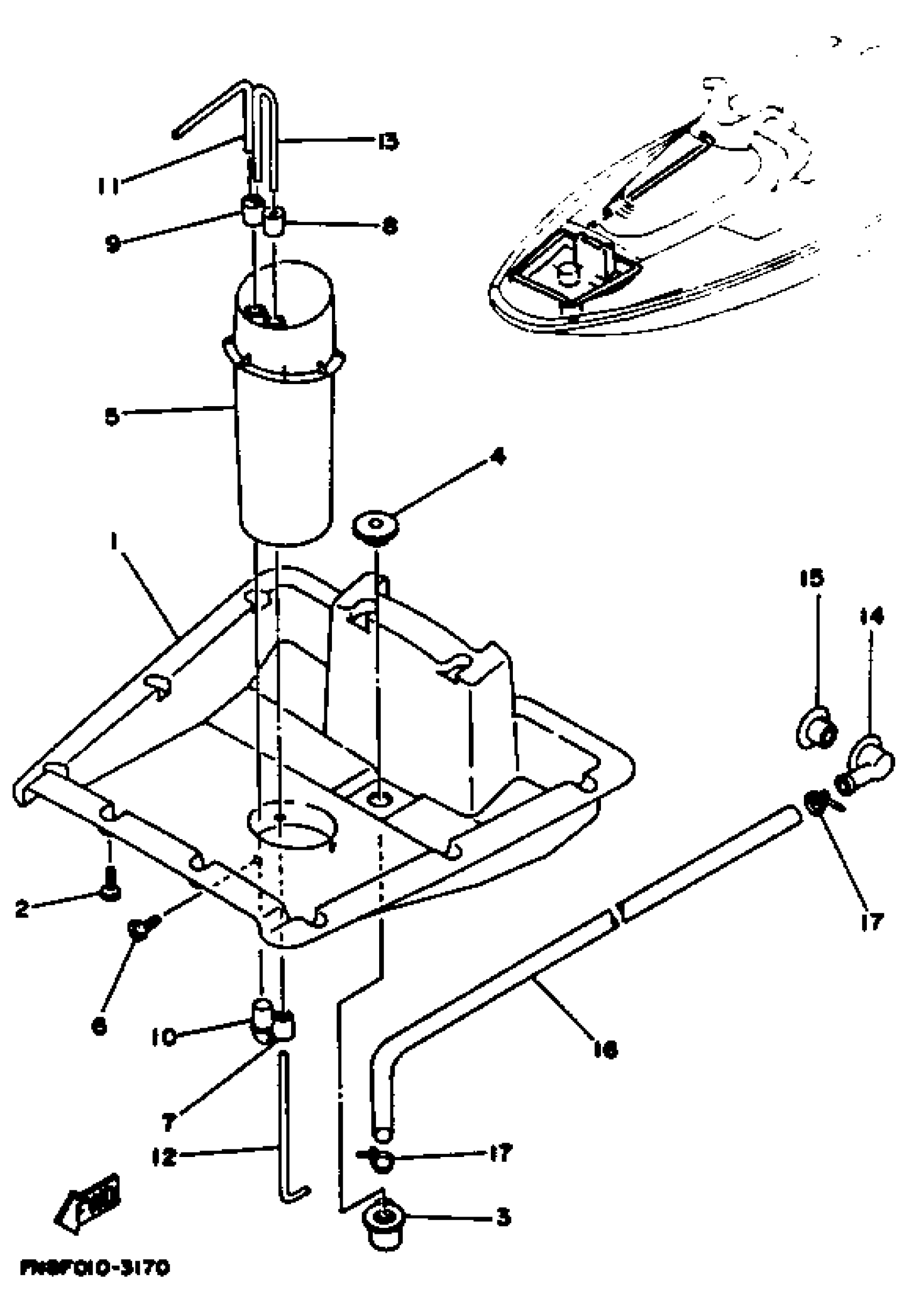

Find the part on the Ventilation diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha WRB650RA Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER VENTILATOR 1

FN8-U2131-00-00

1
Out of stock

2

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

3

BODY, DRAIN 3

FN8-6224E-00-00

1
Out of stock

4

BODY, DRAIN 4

FN8-6224F-01-00

1
Out of stock

5

PIPE, VENTILATION

EU0-U2149-40-00

1
Out of stock

6

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

7

CAP

EU0-62155-00-00

1
Out of stock

8

CAP

FN8-62155-00-00

1
Out of stock

9

CAP

FN8-62155-30-00

1
Out of stock

10

CAP

FN8-62155-50-00

1
Out of stock

11

ELBOW, VENTILATOR 11

FN8-62156-00-00

1
Out of stock

12

ELBOW VENT 12

EU0-62156-32-00

1
Out of stock

13

ELBOW, VENTILATOR 13

FN8-62156-40-00

1
Out of stock

14

BODY, DRAIN 3

FN8-6224E-00-00

1
Out of stock

15

BODY, DRAIN 4

FN8-6224F-01-00

1
Out of stock

16

HOSE 1

FN8-62249-00-00

1
Out of stock

17

BAND

90601-200U1-00

1

$2.89

In stock
