1993 Yamaha WRB650RA Hull - Deck Diagram

← All diagrams

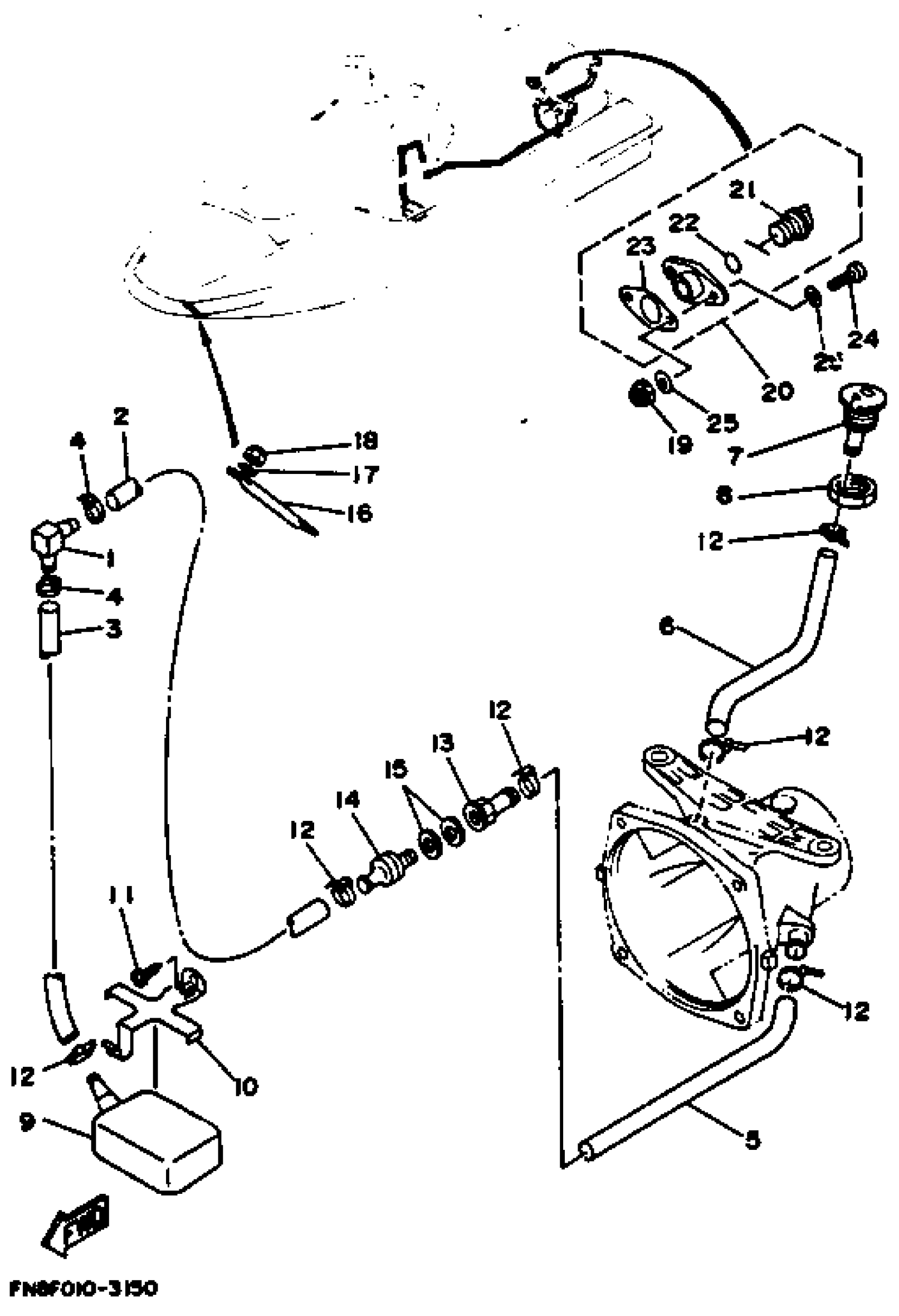

Find the part on the Hull - Deck diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha WRB650RA Hull - Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, HOSE

6K8-51162-00-00

1

$11.49

In stock

2

HOSE

90445-14M03-00

1
Out of stock

3

HOSE (L380)

90445-14M25-00

1

$19.46

In stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

PIPE

61L-51385-00-00

1

$17.49

In stock

6

HOSE

90445-16M00-00

1
Out of stock

7

SPOUT

FN8-6269B-00-00

1

$17.81

In stock

8

NUT

EU0-61652-00-00

1

$12.27

In stock

9

STRAINER, BILGE

F4R-6761D-00-00

1

$31.99

In stock

10

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

11

1

$4.15

In stock

12

CLAMP

90465-10098-00

1

$2.24

In stock

13

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

14

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

15

GASKET

90430-13909-00

1
Out of stock

16

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

19

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

20

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

21

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

22

. O-RING

EU0-62283-00-00

1

$3.95

In stock

23

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

24

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

25

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock
