1993 Yamaha WRB650RA Exhaust 2 Diagram

← All diagrams

Find the part on the Exhaust 2 diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

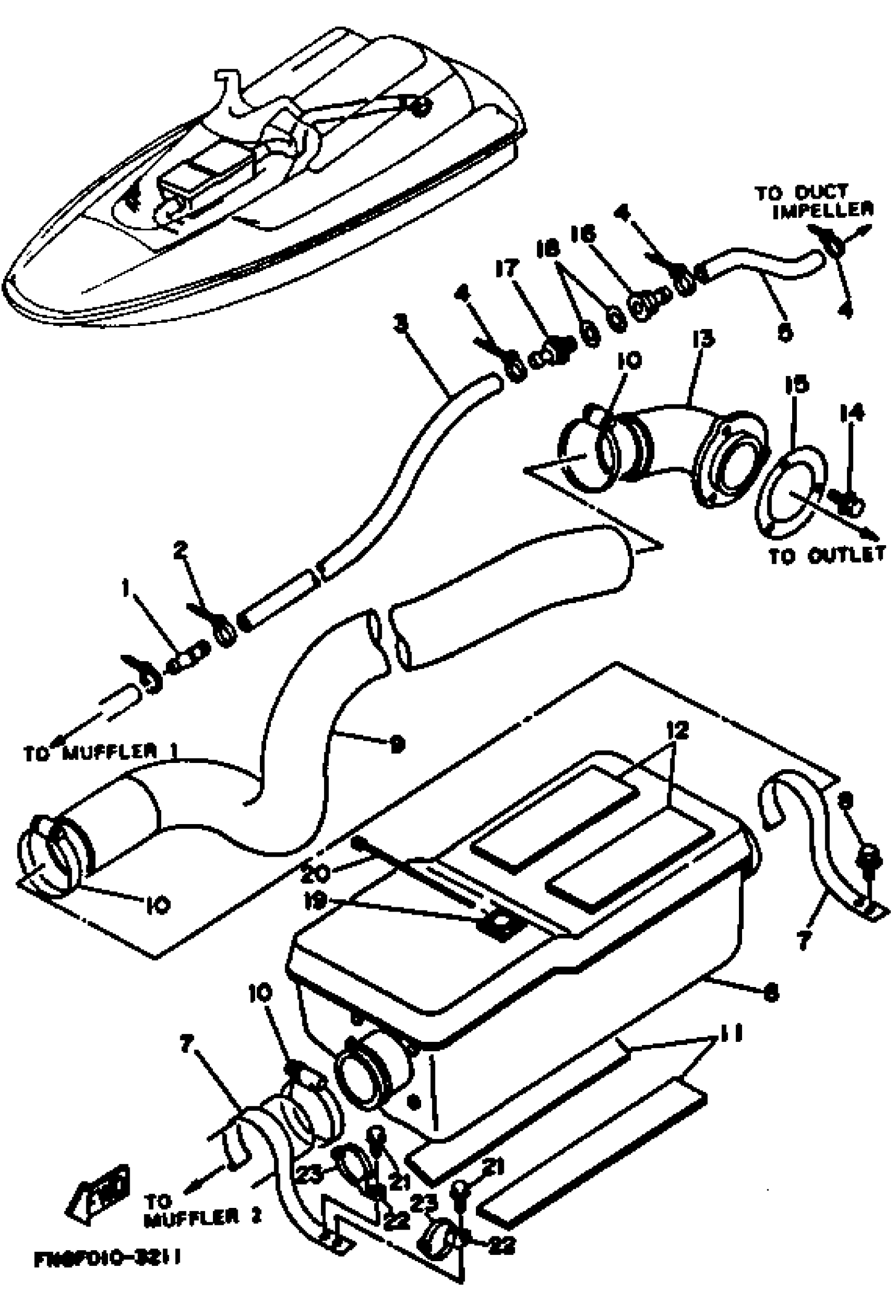

1993 Yamaha WRB650RA Exhaust 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CONNECTION

6M6-51142-00-00

1
Out of stock

2

CLAMP

90465-10098-00

1

$2.24

In stock

3

HOSE

90445-14M03-00

1
Out of stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

HOSE

90445-14M17-00

1
Out of stock

6

WATER LOCK COMP.

FN8-U7550-30-00

1
Out of stock

7

CLIP, HOSE EXHAUST

FN8-67559-00-00

1
Out of stock

8

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

9

HOSE, EXHAUST

GD0-U7555-00-00

1
Out of stock

10

BAND, HOSE 68

90601-168U7-00

1
Out of stock

11

MAT 2

EU0-U7593-30-00

1
Out of stock

12

MAT

EU0-U7593-50-00

1
Out of stock

13

THRU-HULL

FN8-67565-01-00

1
Out of stock

14

BOLT, WITH WASHER (EW3)

90119-05912-00

1

$4.00

In stock

15

PACKING

FN8-U7525-01-00

1
Out of stock

16

CONNECTION, THRU-HULL 1/4

90604-80757-00

1
Out of stock

17

CONNECTION, THRU-HULL 1/4

90604-80758-00

1
Out of stock

18

GASKET

90430-13909-00

1
Out of stock

19

BASE, CLAMP (FA8A)

90600-90004-00

—

$3.77

In stock

20

BAND

90601-20024-00

1

$6.46

In stock

21

BOLT, WITH WASHER

90119-06908-00

1

$2.77

In stock

22

BASE CLAMP

90600-90005-00

1
Out of stock

23

CLAMP

90465-10098-00

1

$2.24

In stock
← Exhaust 1 Gasket Kit →
