1993 Yamaha WRB650RA Engine Hatch Diagram

← All diagrams

Find the part on the Engine Hatch diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

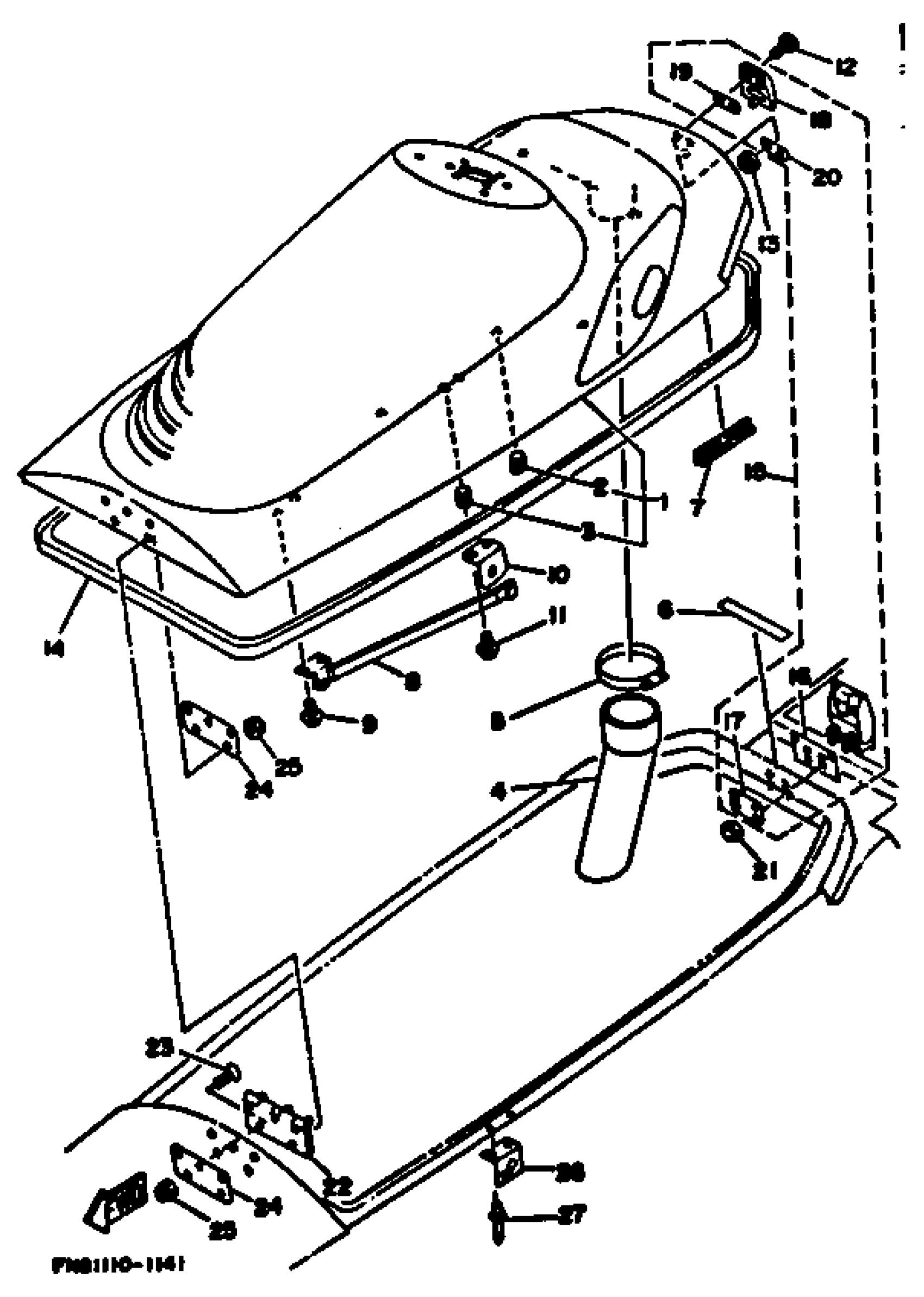

1993 Yamaha WRB650RA Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

FN8-U516D-00-00

1
Out of stock

2

. NUT

90179-08927-00

1
Out of stock

3

NUT

90179-069U4-00

1
Out of stock

4

HOSE, VENTILATOR 1

EW2-62136-01-00

1
Out of stock

5

BAND, HOSE 68

90601-168U7-00

1
Out of stock

6

TRIM

FN8-U5162-00-00

1
Out of stock

7

TRIM 1

FN8-6516C-00-00

1
Out of stock

8

SUPPORT, HATCH

FN8-62891-01-00

1
Out of stock

9

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

10

FIX, PLATE

FN8-62892-00-00

1
Out of stock

11

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

12

SCREW

90149-05970-00

1
Out of stock

13

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

14

PACKING

FN8-U2664-00-00

1
Out of stock

15

HATCH LOCK ASSY

FN8-62840-01-00

1
Out of stock

16

. PACKING, HATCH LOCK

EW2-62845-00-00

1

$6.46

In stock

17

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

18

. HOOK, HATCH LOCK

FN8-62843-00-00

1
Out of stock

19

. PACKING, HOOK

EW2-62847-00-00

1

$4.62

In stock

20

. PLATE, HOOK

EW2-62848-00-00

1

$4.62

In stock

21

.. NUT

95380-05800-00

1

$2.77

In stock

22

HINGE

90600-70069-00

1

$109.99

In stock

23

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

24

PLATE

FN8-U5193-00-00

1
Out of stock

25

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

26

BRACKET, HATCH SUPPORT

FN8-62884-00-00

1
Out of stock

27

RIVET, BLIND

90267-48940-00

1

$10.99

In stock
