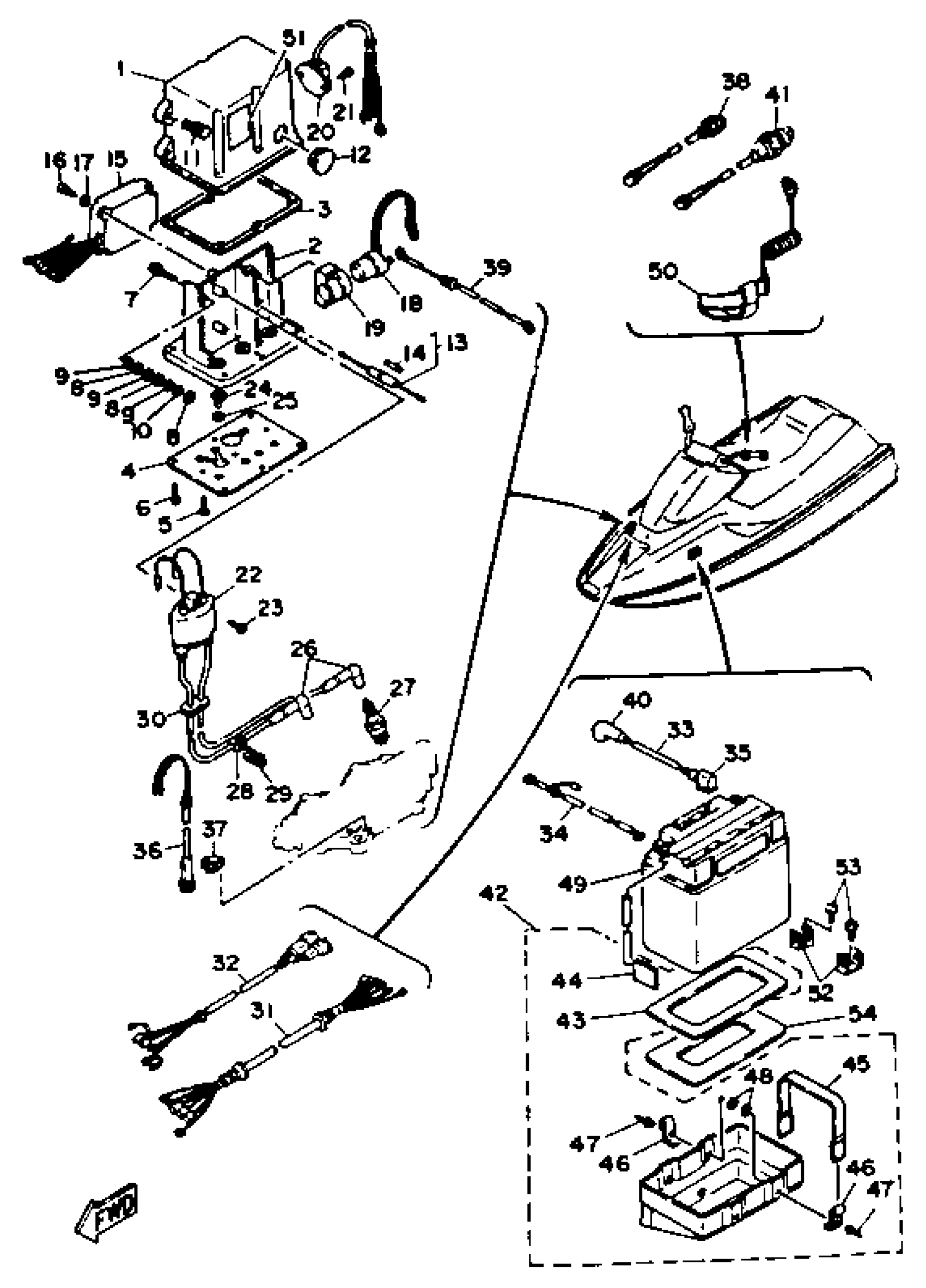

Yamaha WR500F (WAVE RUNNER) 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

6K8-8552A-00-00

Unavailable

2

COVER CASE

6K8-8552E-00-00

Unavailable

3

GASKET, TERMINAL

6K8-81921-00-00

$27.99

4

COVER

6K8-85599-00-00

Unavailable

5

SCREW, TAPPING

97780-60535-00

Unavailable

6

SCREW, TAPPING

97780-60520-00

$4.09

7

BOLT,WITH WASHER (6K8)

90119-06M34-00

$2.41

8

NUT

95313-06700-00

$2.32

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

WASHER, SPRING

92995-06100-00

$2.95

11

BOLT,WITH WASHER

90119-06940-00

Unavailable

12

COVER, UPPER CASIN

647-45151-02-00

Unavailable

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

CDI UNIT ASSEMBLY

6K8-85540-10-00

Unavailable

15

CDI UNIT ASSEMBLY

6K8-85540-11-00

Unavailable

16

SCREW, TAPPING(65J)

97780-60625-00

$2.64

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

19

HOLDER, RELAY

6G1-81952-01-00

Unavailable

20

RECTIFIER/REG ASSEMBLY ASSY

6K8-81960-A0-00

Unavailable

21

SCREW, TAPPING

97780-60512-00

Unavailable

22

IGNITION COIL

6K8-85570-19-00

Unavailable

23

SCREW, TAPPING(65J)

97780-60625-00

$2.64

24

GROMMET

90480-18M21-00

Unavailable

25

COLLAR

90387-18M00-00

Unavailable

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

27

B7HS NGK 4PK

B7H-S0000-00-00

$4.09

28

GROMMET

90480-25161-00

$3.96

29

CLAMP

90464-07M05-00

$2.80

30

GROMMET

90480-25M18-00

$12.86

31

EXT, WIRE HARNESS

6K8-8258A-02-00

Unavailable

31

EXT, WIRE HARNESS

6K8-8258A-02-00

Unavailable

32

EXTENSION, WIRE

6K8-82553-00-00

Unavailable

33

WIRE, LEAD

6K8-82117-01-00

$57.56

34

WIRE,LEAD

6K8-82117-11-00

Unavailable

35

COVER, LEAD WIRE

6K8-82119-10-00

Unavailable

36

THERMO SWITCH ASSEMBLY

6K8-82560-00-00

Unavailable

37

PLATE

6K8-82588-00-00

Unavailable

38

START SWITCH ASSEMBLYASSY

6K8-81870-00-00

Unavailable

39

WIRE,LEAD

6K8-82117-11-00

Unavailable

40

COVER, LEAD WIRE

6K8-82119-00-00

Unavailable

41

ENGINE STOP SWITCHSWITCH ASSY

EU0-68347-00-00

Unavailable

42

BATTERY CASE

EU0-68211-09-00

Unavailable

43

PAD, BATTERY

F1S-U8221-00-00

$2.75

44

PAD, BATTERY 2

EU0-68221-30-00

$46.95

45

BAND,BATTERY

EU0-68218-04-00

$45.44

46

. HOOK

EU0-65772-00-00

Unavailable

47

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

48

. WASHER, PLATE

90201-05328-00

Unavailable

49

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

50

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

51

MARK 1

6K8-83621-00-00

Unavailable

52

HOOK A

EU0-65772-30-00

$10.49

53

SCREW, WITH WASHER

90159-06901-00

$9.08

54

PLATE, BATTERY

EU0-68219-00-00

Unavailable
