1989 Yamaha Wave Runner (WR500F) Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1989 Yamaha Wave Runner (WR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

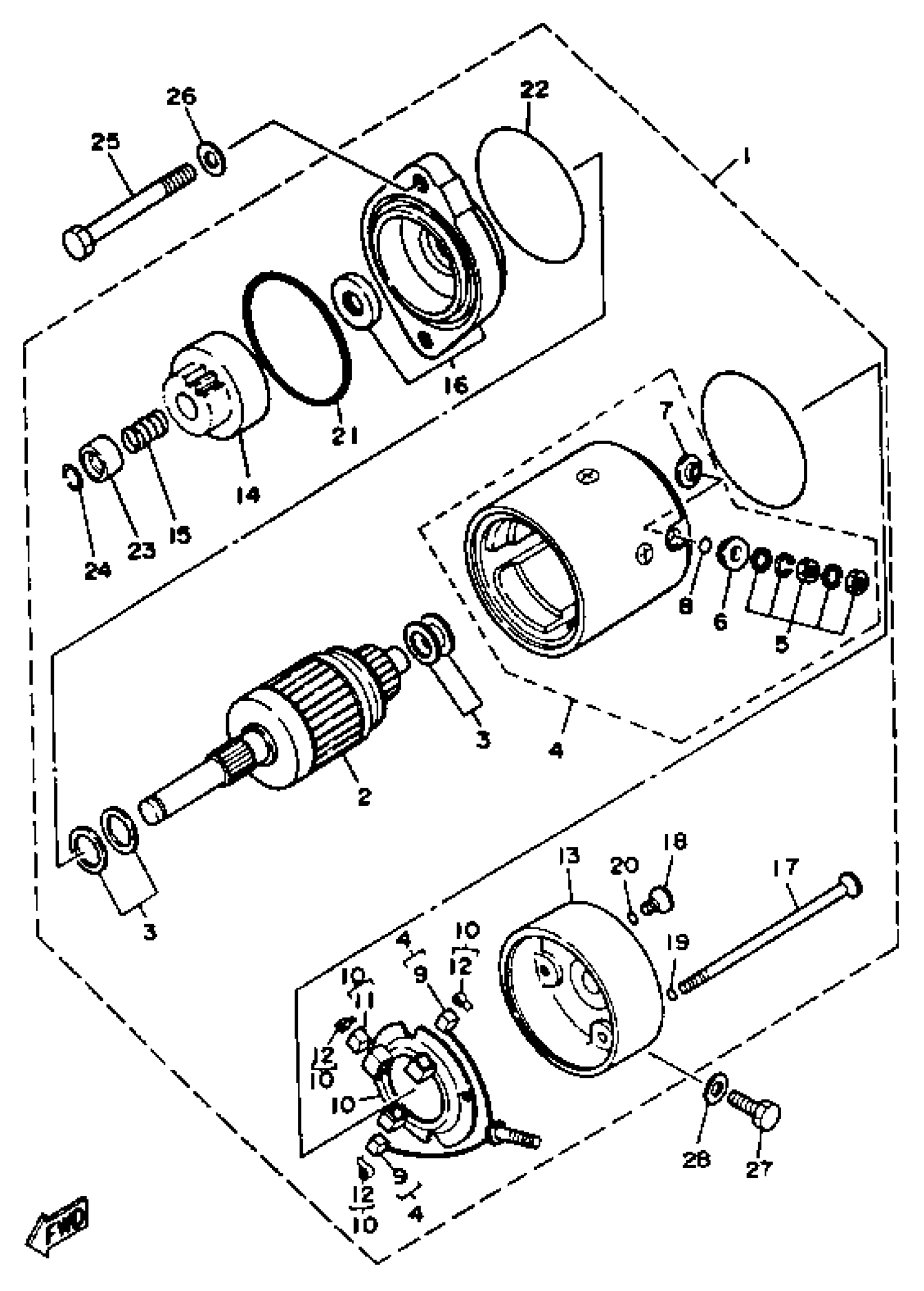

1989 Yamaha Wave Runner (WR500F) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSEMBLY

6K8-81800-12-00

1
Out of stock

2

. ARMATURE ASSEMBLY

6K8-81850-12-00

1
Out of stock

3

. WASHER KIT

6K8-81809-10-00

1
Out of stock

4

. STATOR ASSEMBLY

6K8-81810-10-00

1
Out of stock

5

.. NUT WASHER KIT

6K8-8182V-10-00

1
Out of stock

6

.. TERMINAL BUSH (1) (1)

6K8-8182G-10-00

1
Out of stock

7

.. TERMINAL BUSH (2) (2)

6K8-8182H-10-00

1
Out of stock

8

O-RING

6K8-81847-10-00

1
Out of stock

9

.. BRUSH 1

6K8-81811-10-00

1
Out of stock

10

. BRUSH HOLDER ASSEMBLY

6K8-81840-10-00

1

$140.99

In stock

11

.. BRUSH 2

6K8-81812-10-00

1

$53.99

In stock

12

.. SPRING, BRUSH

6K8-81813-10-00

1

$17.99

In stock

13

. REAR BRACKET ASSEMBLY

6K8-81820-10-00

1
Out of stock

14

1

$245.99

In stock

15

. SPRING, RETURN

676-81858-10-00

1
Out of stock

16

. FORNT BRACKET ASSEMBLY

6K8-81830-10-00

1
Out of stock

17

. BOLT

6K8-81826-10-00

1
Out of stock

18

. SCREW

6K8-81846-10-00

1
Out of stock

19

O-RING

6K8-81847-10-00

1
Out of stock

20

. O-RING (1) (1)

6K8-8182L-10-00

1
Out of stock

21

. O-RING (3) (3)

6K8-8182N-10-00

1

$25.99

In stock

22

. O-RING (4) (4)

6K8-8182R-10-00

1
Out of stock

23

. STOPPER, PINION

676-81859-10-00

1
Out of stock

24

. RING

663-81834-10-00

1

$15.37

In stock

25

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

26

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

27

BOLT(7U8)

97080-06020-00

1
Out of stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
