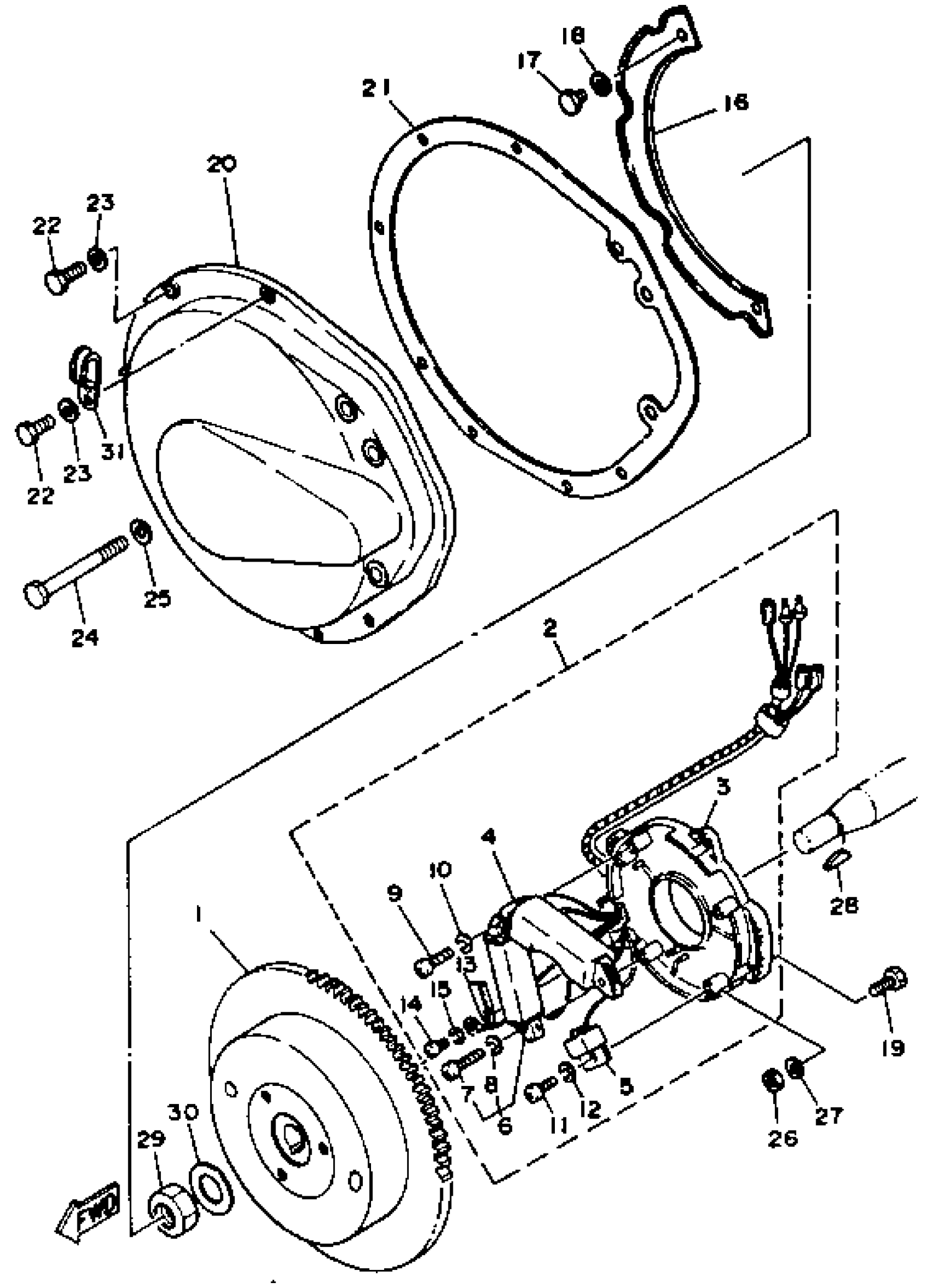

Find the part on the Generator diagram for your 1989 Yamaha Wave Runner (WR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Wave Runner (WR500F) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

6K8-85550-A1-00

1
Out of stock

2

BASE ASS'Y

6G0-85560-60-00

1

$647.99

In stock

2

BASE ASSEMBLY

6K8-85560-41-00

1
Out of stock

3

. BASE, MAGNETO

6G0-85509-70-00

1
Out of stock

4

. CHARGE COIL ASSEMBLY

6G0-85520-70-00

1
Out of stock

5

. PULSER COIL ASSEMBLY

6G0-85580-70-00

1
Out of stock

5

. COIL, PULSER

6K8-85580-00-00

1
Out of stock

6

LIGHTING COIL ASY

6E7-81303-40-00

1

$113.83

In stock

7

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

. CLAMP, CORD

6E7-81328-70-00

1
Out of stock

14

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

16

CLAMP, CORD

6K8-82361-00-00

1
Out of stock

17

BOLT

97085-06010-00

1

$1.26

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

BOLT, HEXAGON

97313-05016-00

1
Out of stock

20

COVER, FLYWHEEL

6K8-81337-01-94

1
Out of stock

21

GASKET, HOLE COVER

6K8-81365-A1-00

1
Out of stock

22

BOLT(7U8)

97080-06020-00

1
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

25

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

26

NUT

95380-05700-00

1
Out of stock

27

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

28

KEY, WOODRUFF

90280-05049-00

1

$7.51

In stock

29

NUT (689)

90179-16M05-00

—
Out of stock

30

WASHER, PLATE

90201-16M44-00

1

$7.99

In stock

31

CLAMP (6A4)

90461-06M01-00

—

$5.32

In stock
