1992 Yamaha WR200R (WR200RD) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

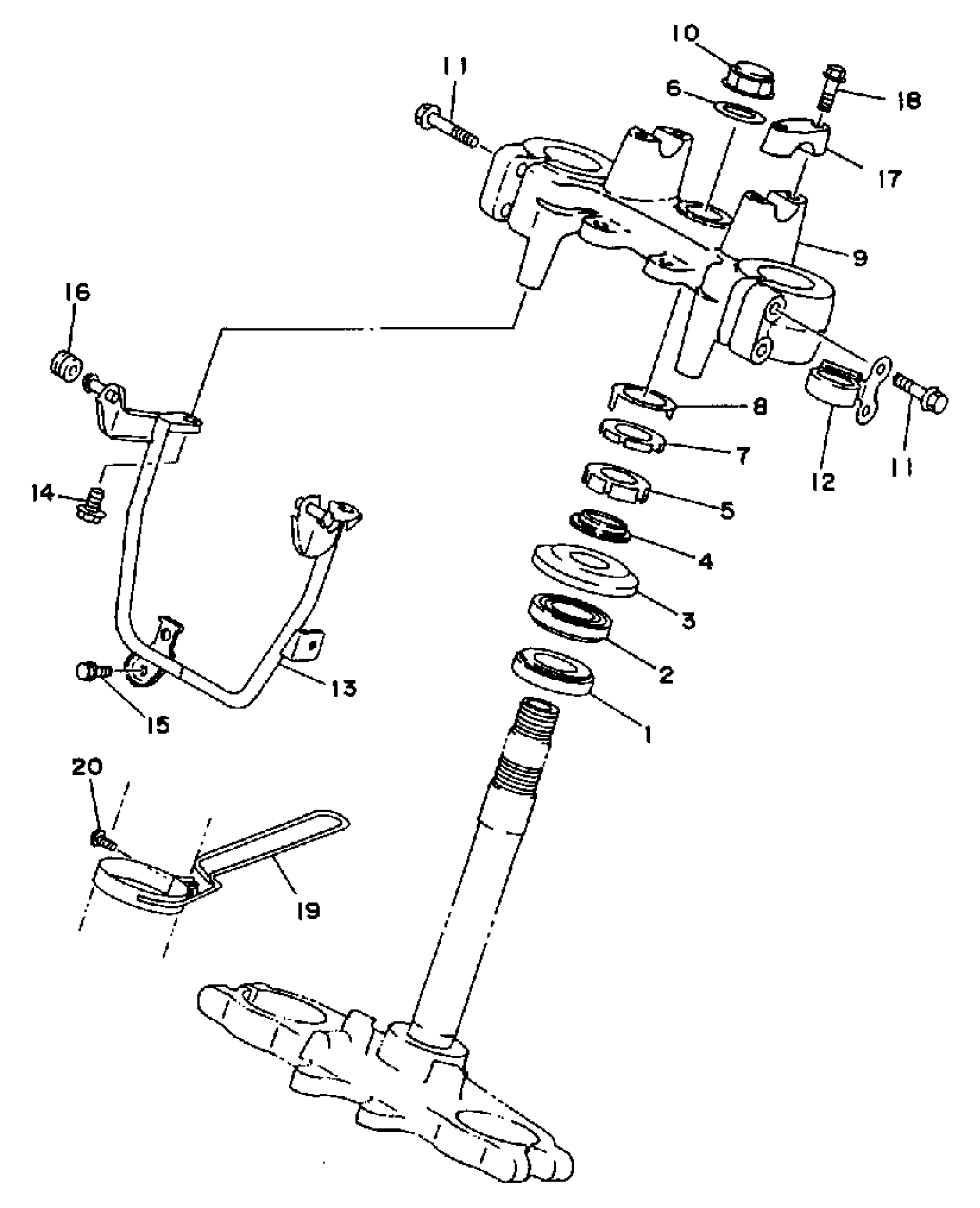

1992 Yamaha WR200R (WR200RD) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4EW)

93332-00078-00

1
Out of stock

2

BEARING(4EW)

93332-00078-00

1
Out of stock

3

COVER, BALL RACE 2

3XP-23416-00-00

—
Out of stock

4

SEAL, STEERING

3XP-23462-00-00

1
Out of stock

5

NUT, SPEC''L SHAPE

90179-25614-00

1
Out of stock

6

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

7

NUT(3XP)

90179-25615-00

1

$21.28

In stock

8

WASHER, SPECIAL

26H-23418-01-00

1

$12.68

In stock

9

CROWN, HANDLE

4BF-23435-01-35

1
Out of stock

10

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

11

BOLT, FLANGE(4MY)

95027-08040-00

1
Out of stock

12

GUIDE, CABLE

3XP-23389-00-00

1
Out of stock

13

STAY, HEADLIGHT

4BF-23174-01-00

1
Out of stock

14

BOLT, FLANGE(2UJ)

95024-06012-00

1
Out of stock

15

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

16

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

17

HOLDER, HANDLE UPPER

1E6-23441-10-35

—

$20.51

In stock

18

BOLT, FLANGE(3EF)

95024-08035-00

—

$6.17

In stock

19

HOLDER, CABLE 1

3XP-23318-00-00

1
Out of stock

20

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock
