1992 Yamaha WR200R (WR200RD) Front Fork Diagram

← All diagrams

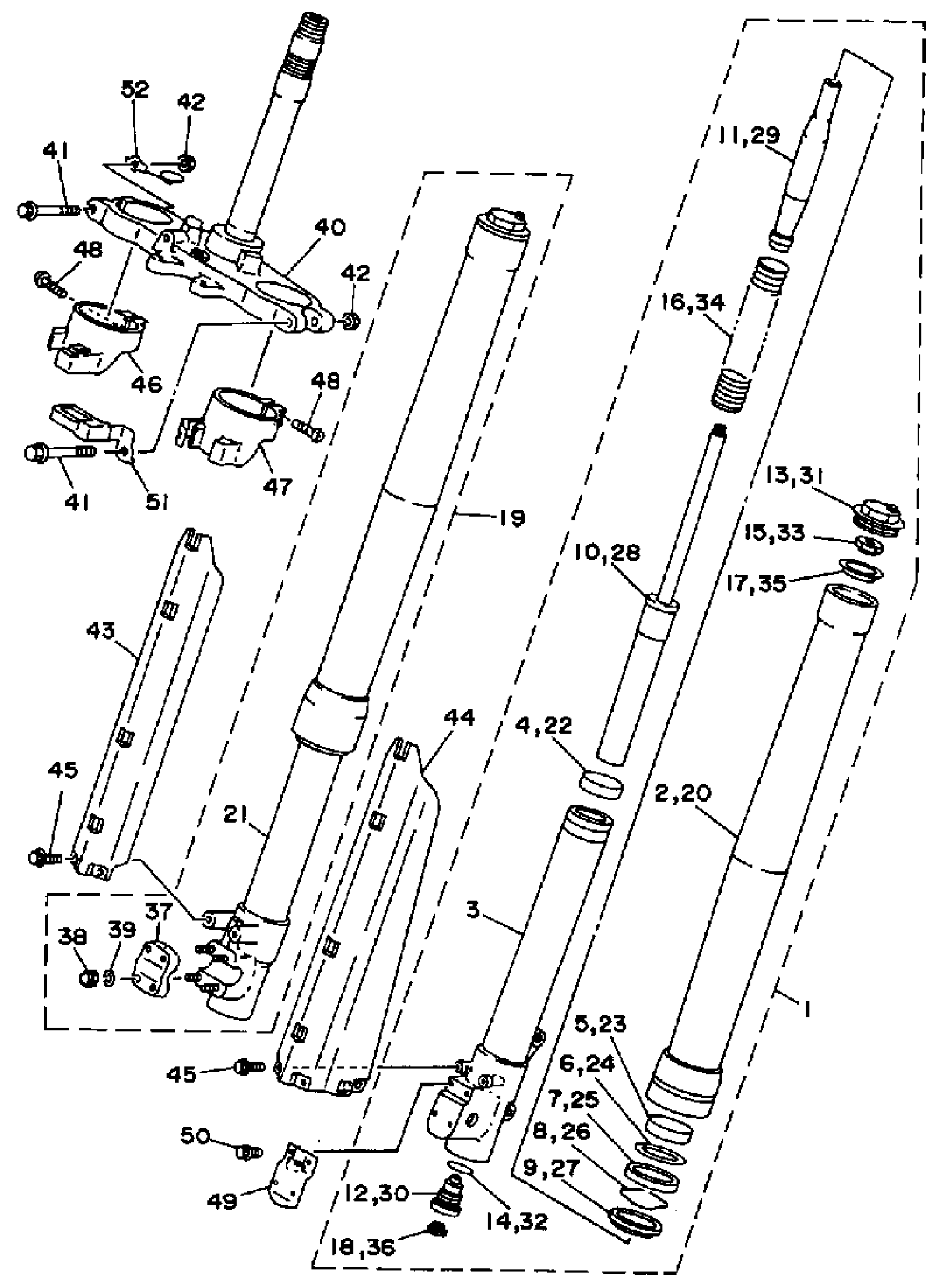

Find the part on the Front Fork diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha WR200R (WR200RD) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

4BF-23102-00-00

1
Out of stock

2

. TUBE, OUTER 2

3XP-23136-00-00

1
Out of stock

3

. INNERTUBE COMP2

3XP-23120-00-00

1
Out of stock

4

METAL, SLIDE

4FM-23171-40-00

1

$20.37

In stock

5

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

6

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

7

OIL SEAL

3SP-23145-L0-00

1
Out of stock

8

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

9

SEAL, DUST

3SP-23144-L1-00

1
Out of stock

10

. CYLINDER COMP, FRK

3XP-23170-00-00

1
Out of stock

11

. SEAT, SPRING UPPER

3XP-23142-00-00

1
Out of stock

12

. VALVE COMP

4BF-2316A-00-00

1
Out of stock

13

. BOLT CAP

3XP-23111-00-00

1
Out of stock

14

GASKET

2HH-23158-L0-00

1

$9.49

In stock

15

. NUT

3XP-23778-00-00

1
Out of stock

16

. SPRING, FRONT FORK

4BF-23141-00-00

1
Out of stock

17

. SEAT, SPRING LOWER

3SP-23143-L0-00

1
Out of stock

18

PLUG

55Y-2312G-M0-00

—
Out of stock

19

FRONT FORK ASSEMBLY R

4BF-23103-00-00

1
Out of stock

20

. TUBE, OUTER 2

3XP-23136-00-00

1
Out of stock

21

. INNERTUBE COMP 1

3XP-23110-00-00

1
Out of stock

22

METAL, SLIDE

4FM-23171-40-00

1

$20.37

In stock

23

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

24

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

25

OIL SEAL

3SP-23145-L0-00

1
Out of stock

26

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

27

SEAL, DUST

3SP-23144-L1-00

1
Out of stock

28

. CYLINDER COMP, FRK

3XP-23170-00-00

1
Out of stock

29

. SEAT, SPRING UPPER

3XP-23142-00-00

1
Out of stock

30

. VALVE COMP

4BF-2316A-00-00

1
Out of stock

31

. BOLT CAP

3XP-23111-00-00

1
Out of stock

32

GASKET

2HH-23158-L0-00

1

$9.49

In stock

33

. NUT

3XP-23778-00-00

1
Out of stock

34

. SPRING, FRONT FORK

4BF-23141-00-00

1
Out of stock

35

. SEAT, SPRING LOWER

3SP-23143-L0-00

1
Out of stock

36

PLUG

55Y-2312G-M0-00

—
Out of stock

37

HOLDER, AXLE

3XJ-23167-L0-00

—

$22.46

In stock

38

NUT

5Y3-23393-00-00

—

$8.17

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

UNDER BRKT COMP.

3XP-23340-00-00

1
Out of stock

41

BOLT 1

3XP-23346-00-00

1
Out of stock

42

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

43

PROTECTER COMP., 2

3XP-2314J-L0-00

—
Out of stock

44

PROTECTER COMP., 1

3XJ-2314H-L0-00

1
Out of stock

45

BOLT 2

3SP-23356-L0-00

—

$5.19

In stock

46

PROTECTER GUIDE COMP., 2

3SP-2314G-L0-00

—

$24.98

In stock

47

PROTECTER GUIDE COMP., 1

3SP-2314F-L0-00

—

$41.29

In stock

48

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

49

COVER, HOSE

3SP-2314E-L0-00

1
Out of stock

50

BOLT, FLANGE(3BM)

95024-06008-00

—
Out of stock

51

HOLDER CABLE 1

3XP-23318-10-00

1
Out of stock

52

GUIDE, CABLE

3XP-23389-10-00

1
Out of stock
