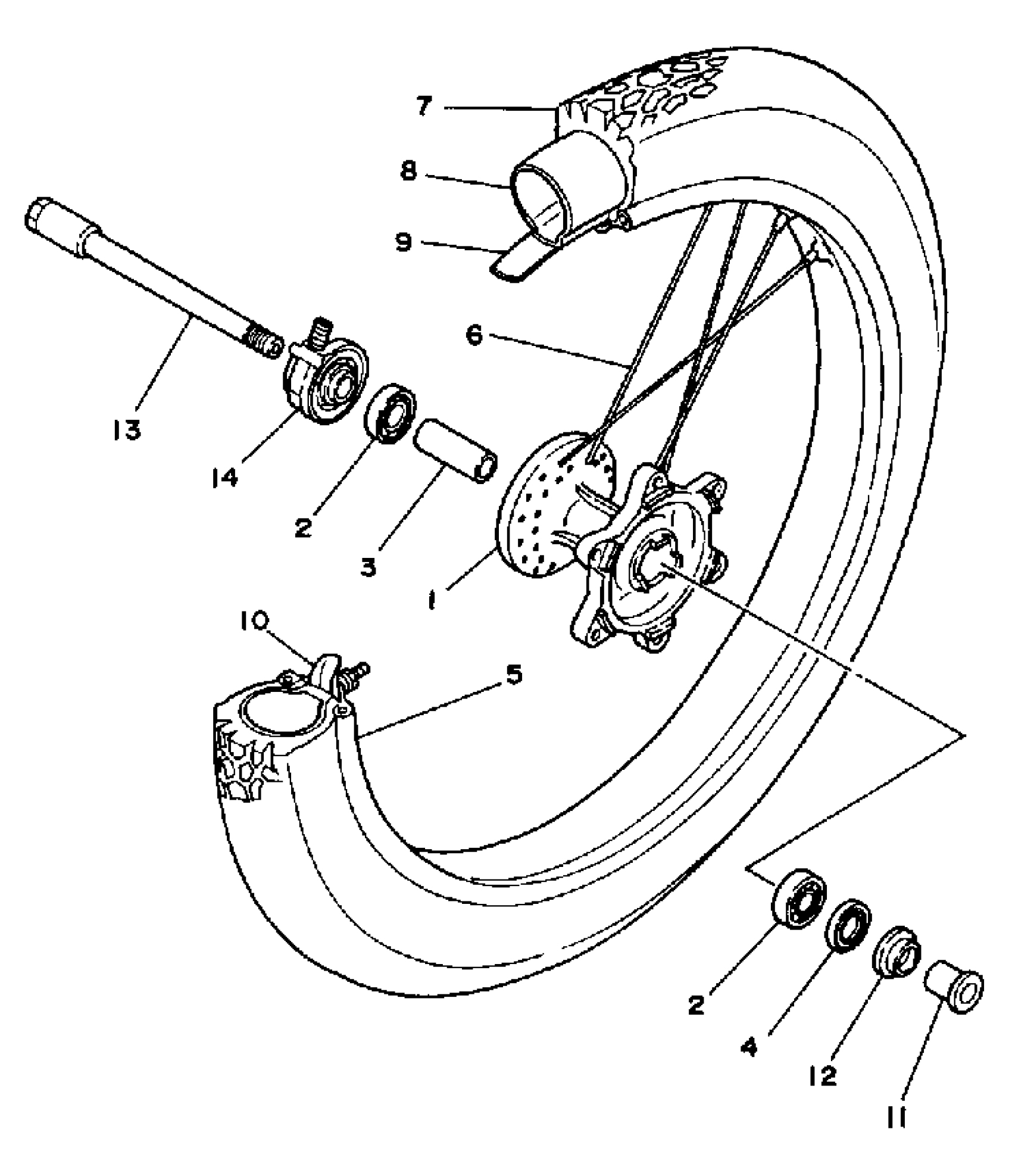

Yamaha WR200RD (WR200R) 1992 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

3XP-25111-00-35

Unavailable

2

BEARING

93306-20205-00

$31.97

3

SPACER(1ET)

90560-15290-00

$17.06

4

OIL SEAL (23X)

93102-20281-00

$10.81

5

RIM (1.60-21)

94416-21430-00

Unavailable

6

SPOKE SET, FRONT

55U-25104-00-00

Unavailable

7

TIRE

94108-21012-00

$203.70

8

TUBE, FRONT (2A6)

94227-21123-00

$40.85

9

BAND, RIM (2A6)

94330-21084-00

$13.23

10

SPACER, BEAD

5X2-25394-00-00

$41.97

11

COLLAR (1W1)

90387-15600-00

$14.62

12

COVER, HUB DUST

322-25118-00-00

$15.27

13

AXLE, WHEEL

4GY-25181-00-00

Unavailable

14

GEAR UNIT ASSY

3XP-25190-00-00

Unavailable
