1992 Yamaha WR200R (WR200RD) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

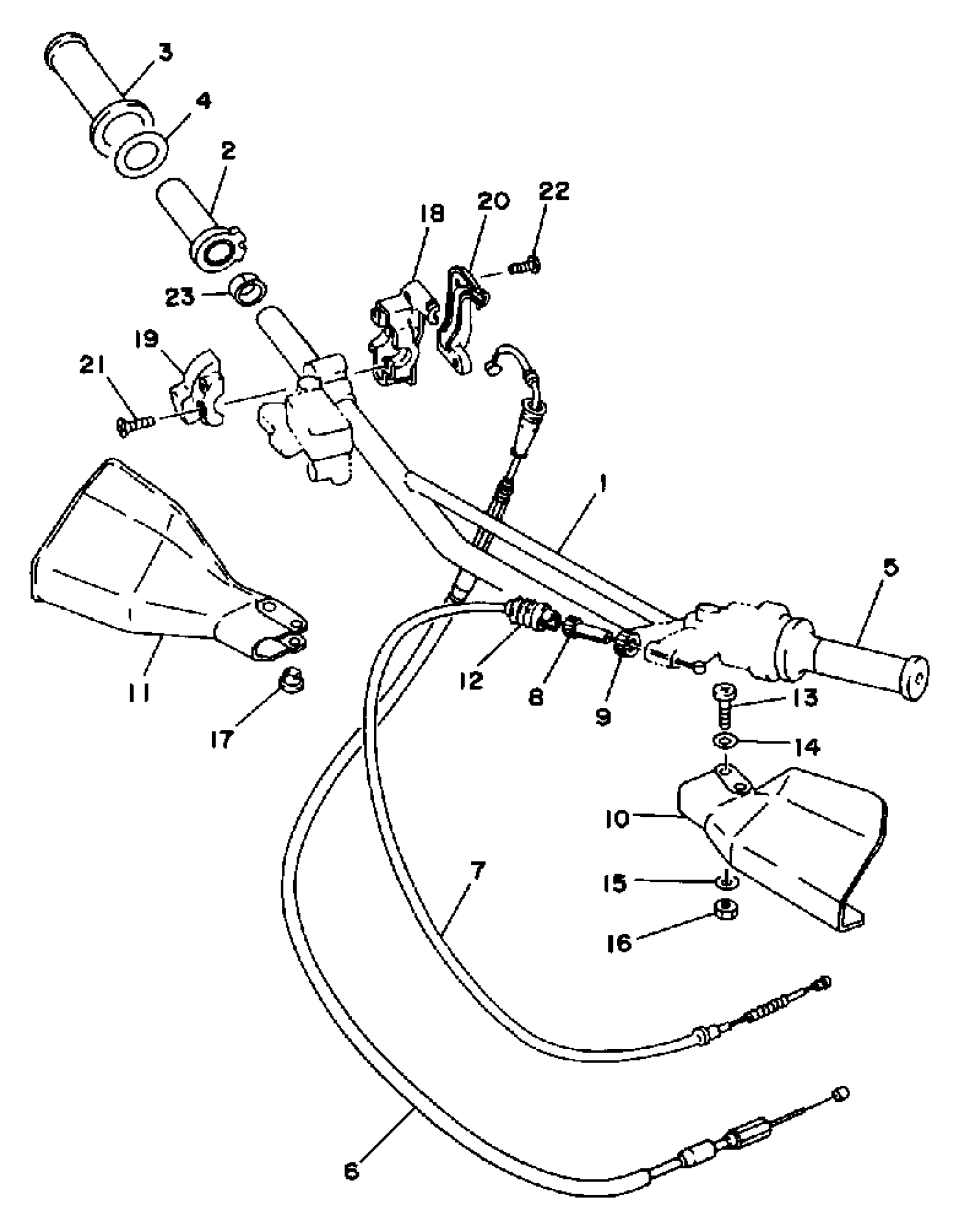

1992 Yamaha WR200R (WR200RD) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3XJ-26111-00-00

1
Out of stock

2

TUBE, THROTTLE GUIDE

22W-26243-00-00

1
Out of stock

3

GRIP (R.H)

1LX-26242-01-00

1
Out of stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP (L.H)

1LX-26241-01-00

1
Out of stock

6

CABLE, THROTTLE 1

4BF-26311-01-00

—
Out of stock

7

CABLE, CLUTCH

3XP-26335-00-00

—
Out of stock

8

BOLT

90123-08002-00

1
Out of stock

9

NUT

90179-08030-00

1
Out of stock

10

GUARD, BRUSH 1

3BN-26141-20-00

1
Out of stock

11

GUARD, BRUSH 2

3BN-26142-20-00

1
Out of stock

12

BOOT, WIRE

1E6-26342-00-00

1
Out of stock

13

SCREW, PAN HEAD(6H4)

97885-06035-00

1
Out of stock

14

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

17

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock

18

CAP, GRIP UPPER

5X2-26281-00-00

—
Out of stock

19

CAP, GRIP UNDER

322-26282-00-00

—
Out of stock

20

CAP, WIRE

5X2-2628H-01-00

—
Out of stock

21

SCREW, FLAT

98707-04012-00

—
Out of stock

22

SCREW, PAN HEAD

90157-05M19-00

1
Out of stock

23

COLLAR (2H7)

90387-22660-00

—
Out of stock
