1994 Yamaha Wave Blaster (WB700S) Steering 2 Diagram

← All diagrams

Find the part on the Steering 2 diagram for your 1994 Yamaha Wave Blaster (WB700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

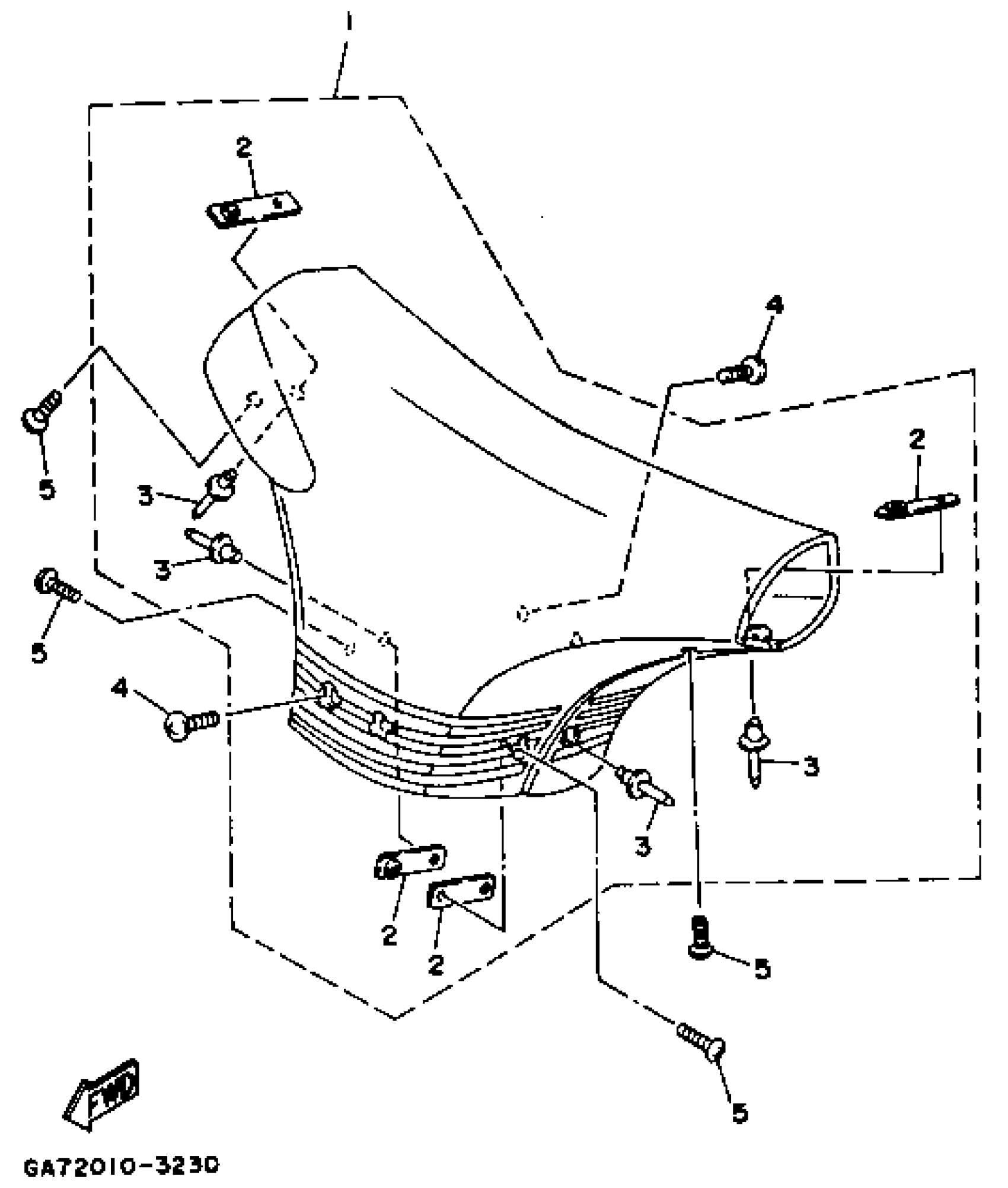

1994 Yamaha Wave Blaster (WB700S) Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING PAD COMP.

GA7-6142A-00-00

1
Out of stock

2

. PLATE

GA7-6144D-00-00

1
Out of stock

3

RIVET, BLIND

90267-48934-00

1
Out of stock

4

SCREW

90149-05988-00

1
Out of stock

5

SCREW

90149-04951-00

1
Out of stock
