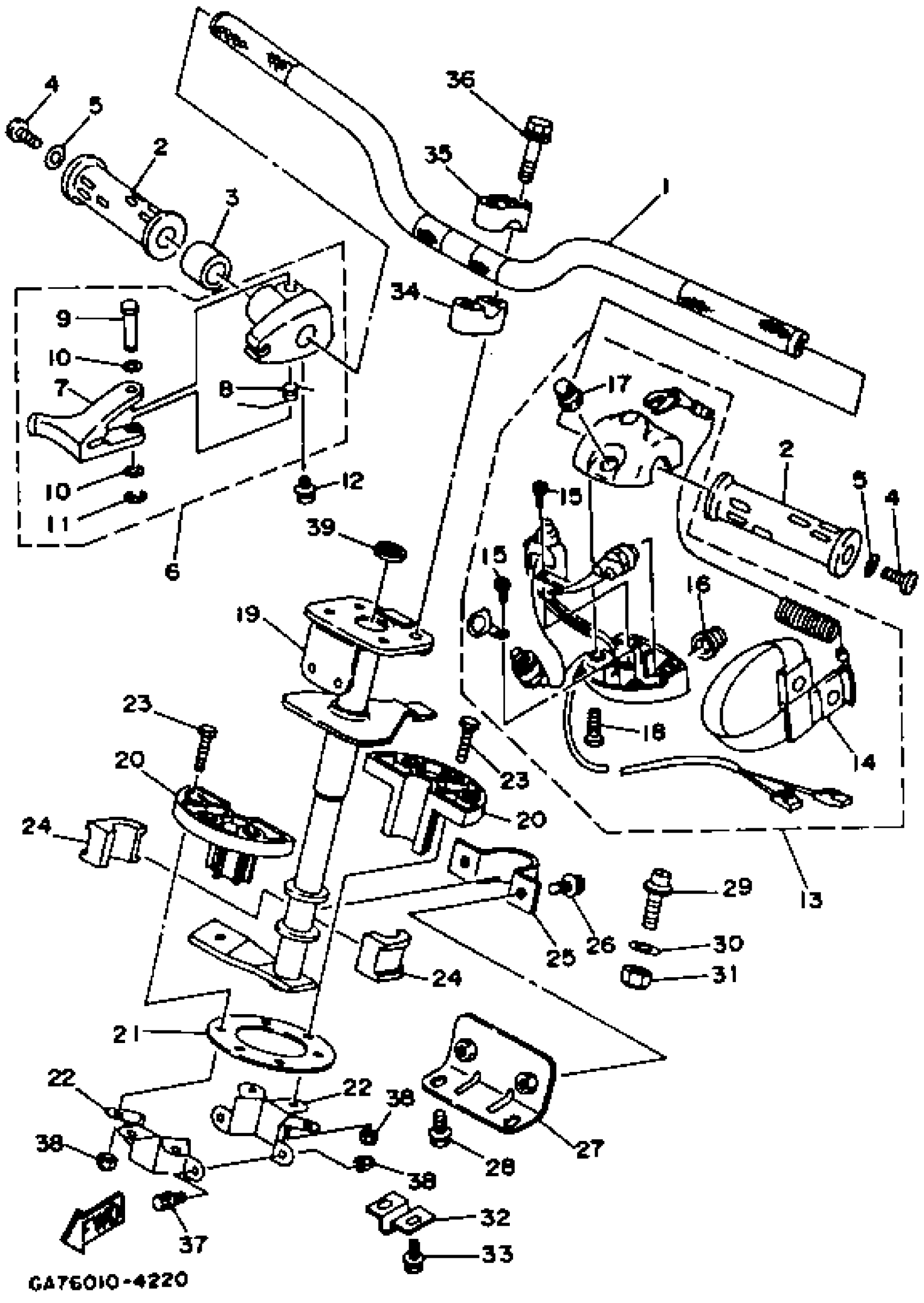

Yamaha WB700S (WAVE BLASTER) 1994 STEERING 1 Diagram

#

Description
Price

1

HANDLE

GA7-61552-00-00

Unavailable

2

GRIP, HANDLE 1

EW2-61553-00-00

$14.81

3

SPACER(1LX)

90560-22281-00

$12.23

4

SCREW,TRASS HEAD (FJ0)

90149-05959-00

$5.23

5

WASHER, PLATE

90201-05800-00

$0.65

6

THROTTLE LEVER ASSY

EW2-67250-02-00

$104.53

7

. LEVER, THROTTLE

EW2-67255-00-00

$21.48

8

. SPRING

EW2-67256-00-00

$6.36

9

. SHAFT

EW2-67257-01-00

$13.99

10

WASHER, PLAIN (646)

92990-05600-00

Unavailable

11

CIRCLIP (EU0)

99080-04600-00

$1.70

12

SCREW, WITH WASHER

90159-05900-00

$2.17

13

SWITCH BOX ASSY

GA7-68310-01-00

$222.71

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

15

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

16

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

17

. START BUTTON COMP

FK7-68313-02-00

$11.31

18

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

19

COLUMN, STEERING

GA7-61541-00-00

Unavailable

20

BEARING, COLUMN

EU0-61417-00-00

Unavailable

21

SEAL, RUBBER

EU0-61439-30-00

Unavailable

22

JOINT, BEARING 1

FN8-6158B-01-00

Unavailable

23

BOLT(JF7)

97080-06030-00

Unavailable

24

BEARING, STEERING

8F3-23812-00-00

$9.25

25

JOINT, BEARING

EU0-61588-00-00

Unavailable

26

BOLT, WITH WASHER

90119-08903-00

Unavailable

27

BRACKET, BEARING

GA7-61433-00-00

Unavailable

28

BOLT, WITH WASHER

90119-08903-00

Unavailable

29

PIN, STOPPER

FN8-6131B-00-00

$77.26

30

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

31

NUT, NYLON (FN8)

95720-10300-00

Unavailable

32

STOPPER CABLE

EU0-U1468-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06926-00

Unavailable

34

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

35

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

36

BOLT, WITH WASHER

90119-08925-00

Unavailable

37

BOLT, WITH WASHER

90119-06913-00

$1.28

38

NUT, SELF-LOCKING

95720-06300-00

$1.82

39

PACKING, STEERING COLUMN

EU0-61469-00-00

Unavailable
