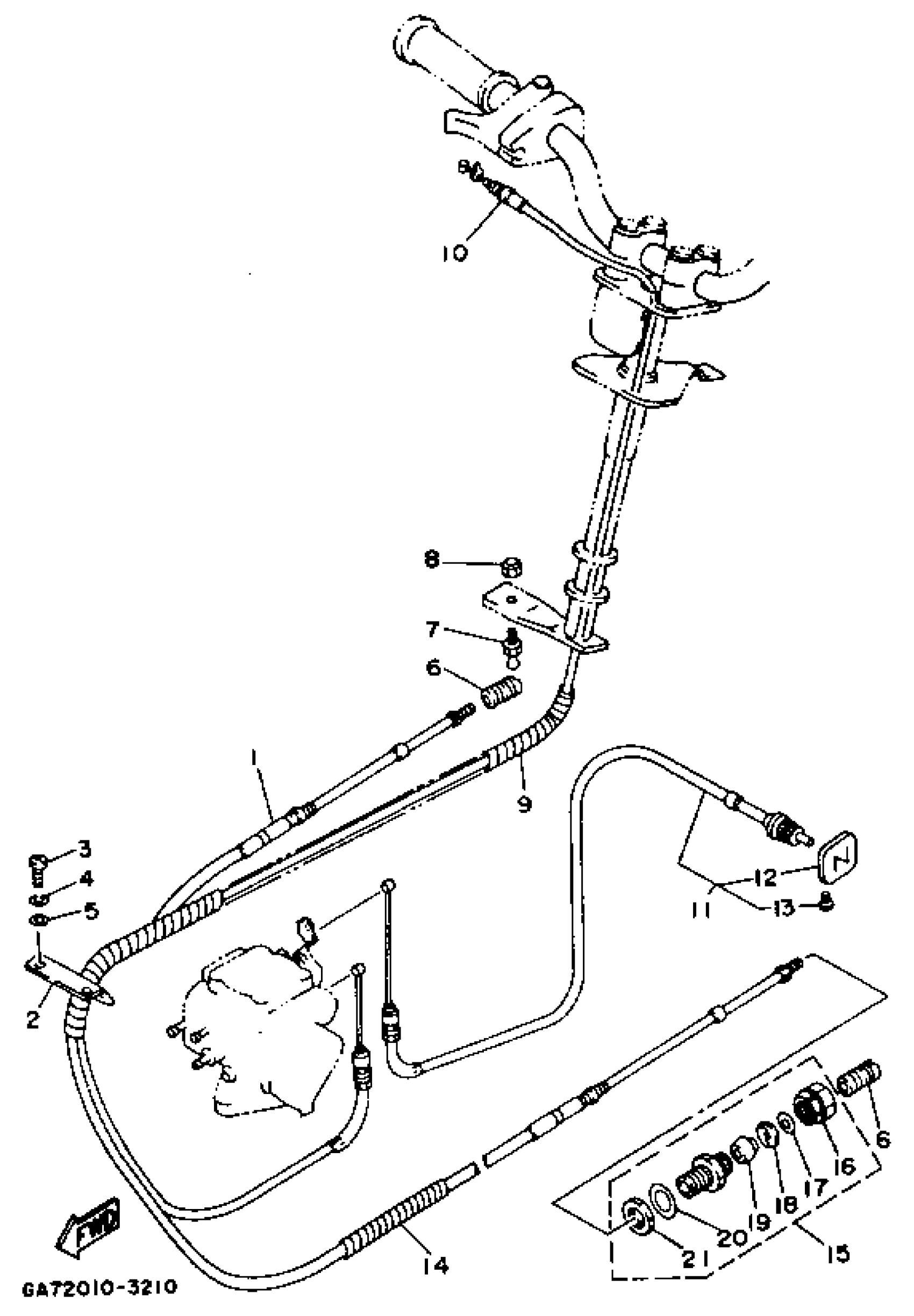

Yamaha WB700S (WAVE BLASTER) 1994 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

GA7-61481-00-00

$207.56

2

GUIDE, CABLE

EU0-61557-01-00

Unavailable

3

SCREW, PANHEAD (796)

98580-04016-00

$5.59

4

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

5

WASHER, PLAIN (646)

92990-04600-00

$0.91

6

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

7

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

8

NUT, SELF-LOCKING

95720-06300-00

$1.82

9

SPI-LAP 11

90699-36100-00

Unavailable

10

CABLE, THROTTLE 1

EU0-U7252-01-00

$120.63

11

CABLE, CHOKE

GA7-67242-00-00

Unavailable

12

. KNOB

EW2-67243-00-00

$13.33

13

. SCREW

90149-03930-00

$1.21

14

SPI-LAP 11

90699-36100-00

Unavailable

15

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

16

. CAP

EU0-62694-00-00

$10.74

17

. WASHER 30

EU0-61446-00-00

$4.55

18

. STOPPER

EU0-61486-00-00

$6.82

19

. SEAL, PIPE 30

EU0-61435-00-00

$10.99

20

. PACKING (C)

EU0-61438-00-00

$8.32

21

. NUT, DRAIN 1

EU0-62241-30-00

$10.49
