2020 Kawasaki W800 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

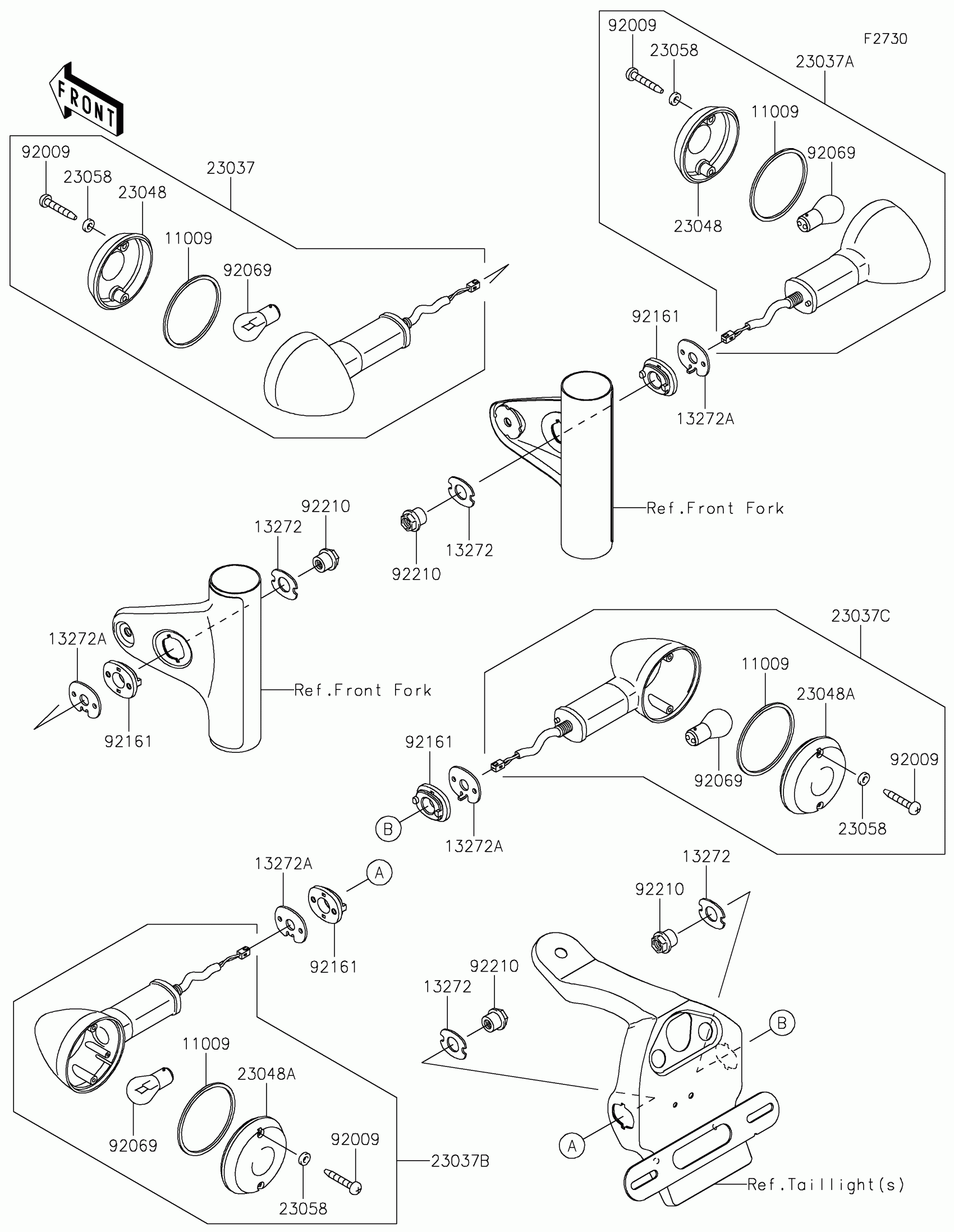

2020 Kawasaki W800 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1413

1

$3.94

In stock

13272

PLATE,SIGNAL LAMP

13272-0968

1

$3.29

In stock

13272A

PLATE,POSITIONING

13272-1314

1

$3.29

In stock

23037

1

$94.08

In stock

23037A

1

$94.08

In stock

23037B

1

$94.08

In stock

23037C

1

$94.08

In stock

23048

LENS-SIGNAL LAMP,RR

23048-1065

1

$7.56

In stock

23048A

LENS-SIGNAL LAMP,FR

23048-1066

1

$7.56

In stock

23058

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock

92009

SCREW,TAPPING,4X25

92009-1637

1
Out of stock

92069

Not Available As Spare Part - Friction Washer

1
Out of stock

92161

DAMPER,SIGNAL LAMP

92161-1461

1

$3.29

In stock

92210

NUT

92210-0632

1
Out of stock
