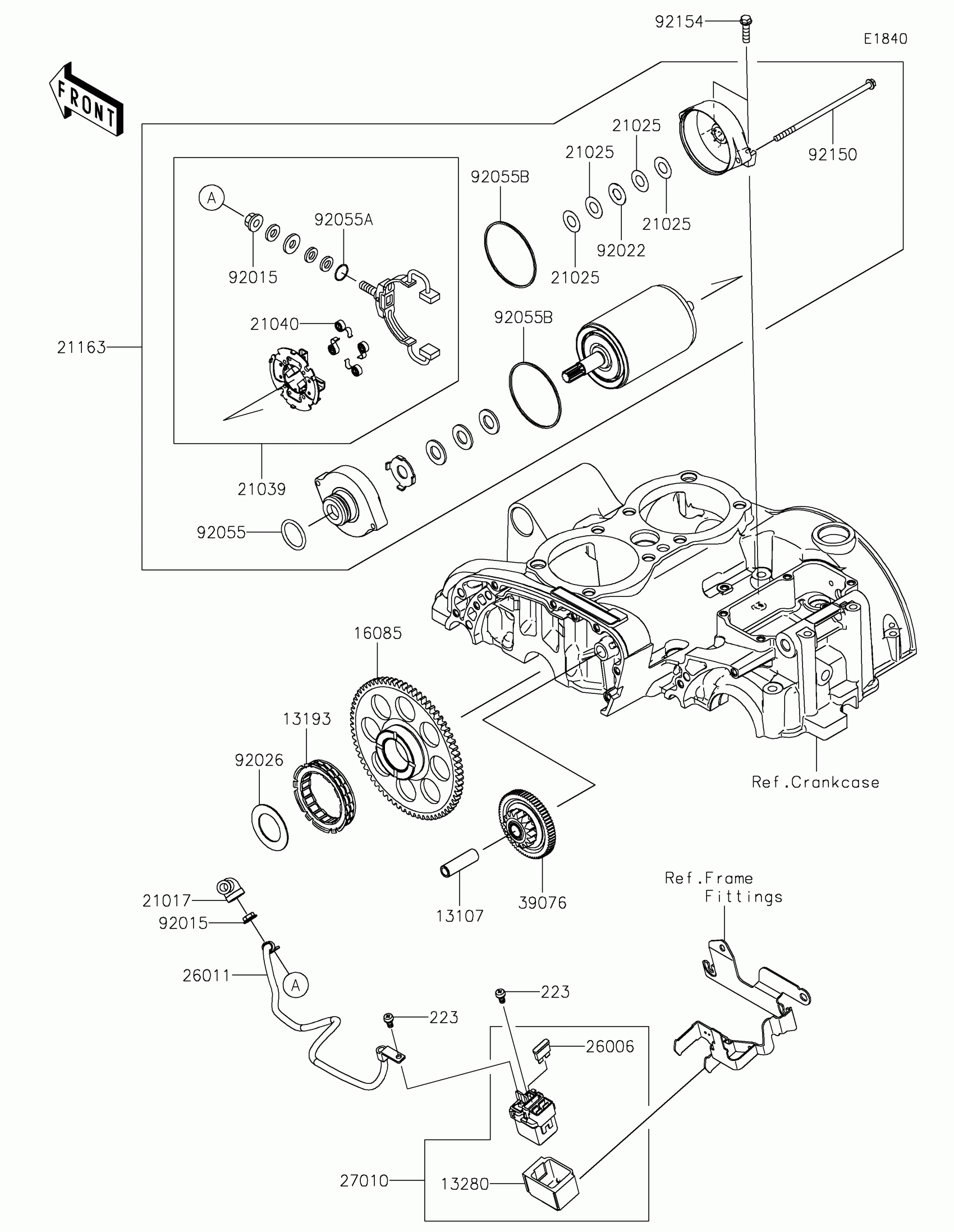

Find the part on the Starter Motor diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLE GEAR

13107-1106

1

$15.76

In stock

13193

CLUTCH-ASSY-ONEWAY

13193-0006

1

$128.14

In stock

13280

HOLDER

13280-0816

1

$7.47

In stock

16085

GEAR,ONEWAY CLUTCH

16085-1318

1

$161.49

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

—

$5.42

In stock

21039

BRUSH,CARBON

21039-1060

1

$85.95

In stock

21040

SPRING-BRUSH

21040-1055

1

$8.24

In stock

21163

STARTER-ELECTRIC

21163-1263

1

$546.12

In stock

26006

1

$4.39

In stock

26011

1

$67.45

In stock

27010

SWITCH

27010-0784

1

$126.10

In stock

39076

1

$127.63

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92026

1

$9.58

In stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92150

BOLT,STARTER MOTOR

92150-1913

1

$9.22

In stock

92154

BOLT,FLANGED,6X22

92154-0504

1

$1.66

In stock

223

1

$0.49

In stock
