2020 Kawasaki W800 Ignition Switch/locks/reflectors Diagram

← All diagrams

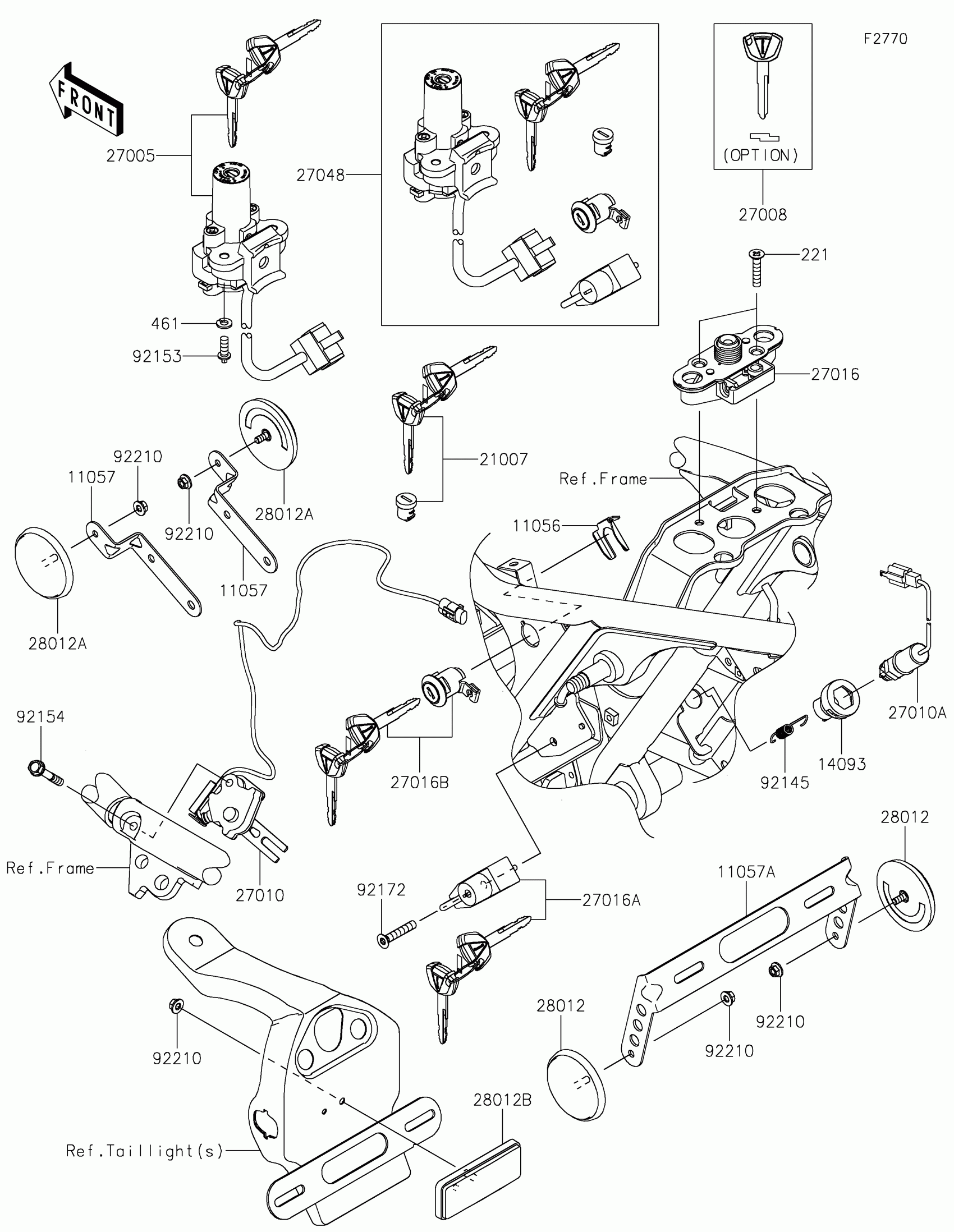

Find the part on the Ignition Switch/locks/reflectors diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1084

1

$12.85

In stock

11057

1

$1.19

In stock

11057A

1

$1.69

In stock

14093

COVER,BRAKE SW.

14093-0666

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5086

1

$80.38

In stock

27005

1

$174.87

In stock

27008

KEY-LOCK,BLANK

27008-0648

1

$22.42

In stock

27010

SWITCH,SIDE STAND

27010-0856

1

$61.98

In stock

27010A

SWITCH,BRAKE

27010-0899

1

$32.61

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,HELMET

27016-5411

1

$71.26

In stock

27016B

LOCK-ASSY,SEAT

27016-5412

1

$67.31

In stock

27048

SWITCH-ASSY

27048-5202

1

$547.05

In stock

28012

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-0008

1

$24.88

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92145

1

$3.58

In stock

92153

BOLT,TORX,6X16

92153-0967

1
Out of stock

92154

BOLT,FLANGED,6X40

92154-0859

1

$4.95

In stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1

$2.44

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

221

1

$1.54

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock
