2020 Kawasaki W800 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

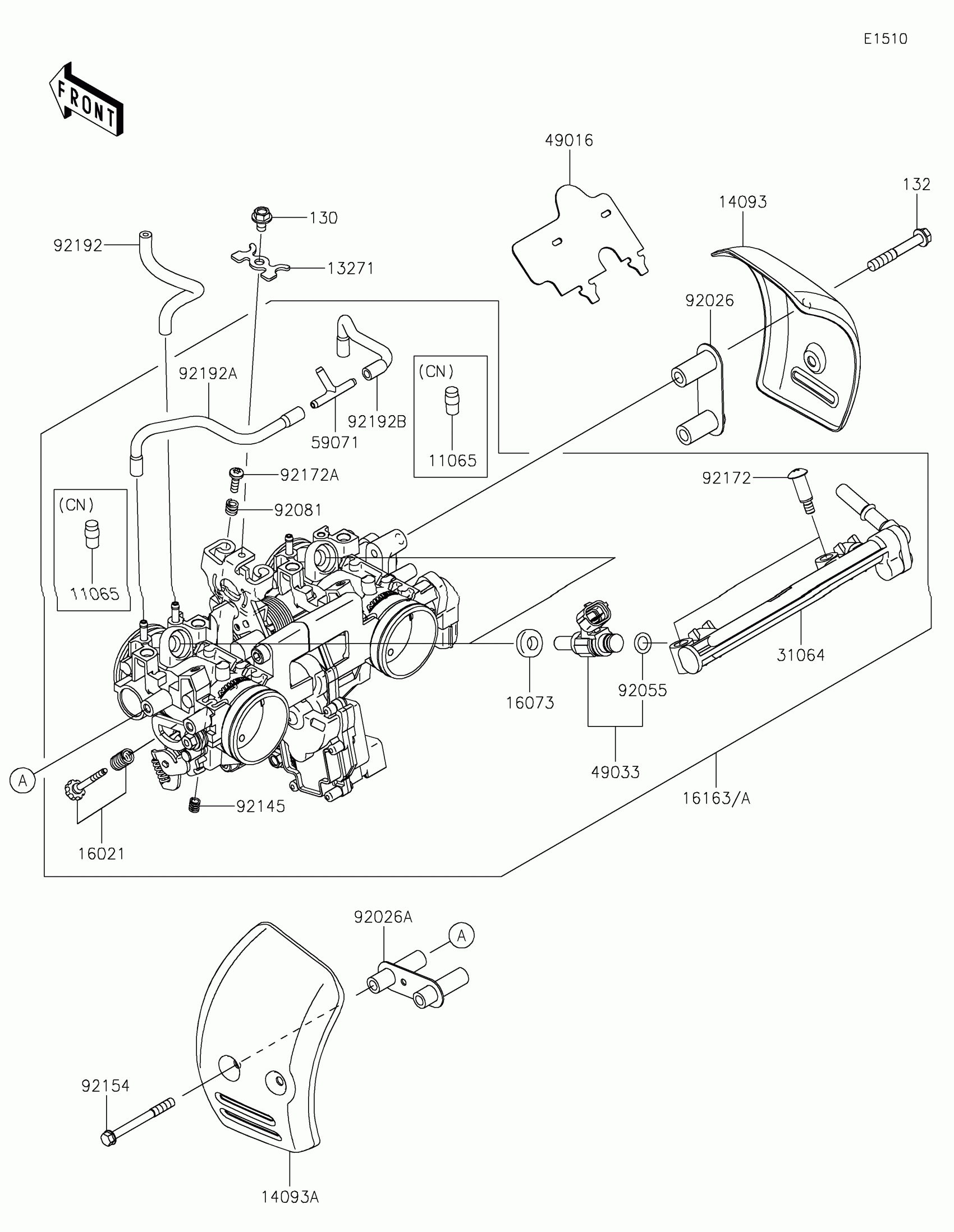

2020 Kawasaki W800 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0018

1

$4.84

In stock

13271

PLATE

13271-0056

1
Out of stock

14093

COVER,RH

14093-0024

1

$67.36

In stock

14093A

COVER,LH

14093-0938

1

$85.92

In stock

16021

SCREW-THROTTLE STOP

16021-0054

1

$80.06

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

16163

THROTTLE-ASSY,TTK34

16163-0950

1

$1,010.38

In stock

16163A

THROTTLE-ASSY,TTK34

16163-0997

1

$1,010.38

In stock

31064

PIPE-COMP,FUEL

31064-0591

1

$92.72

In stock

49016

COVER-SEAL

49016-0674

1

$2.10

In stock

49033

NOZZLE-INJECTION

49033-0571

1

$135.75

In stock

59071

JOINT

59071-0749

1

$4.68

In stock

92026

SPACER

92026-0166

1
Out of stock

92026A

SPACER

92026-0864

1

$32.94

In stock

92055

1

$2.42

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92145

SPRING

92145-0816

1

$5.71

In stock

92154

1

$14.24

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0505

1

$11.49

In stock

92192

TUBE,3X7X110

92192-0931

1
Out of stock

92192A

TUBE,3X6X138

92192-1783

1

$68.15

In stock

92192B

TUBE,3X6X101

92192-1784

1

$68.15

In stock

130

BOLT-FLANGED,5X8

130BA0508

1

$1.53

In stock

132

BOLT-FLANGED-SMALL,6X40

132E0640

1
Out of stock
