2020 Kawasaki W800 Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

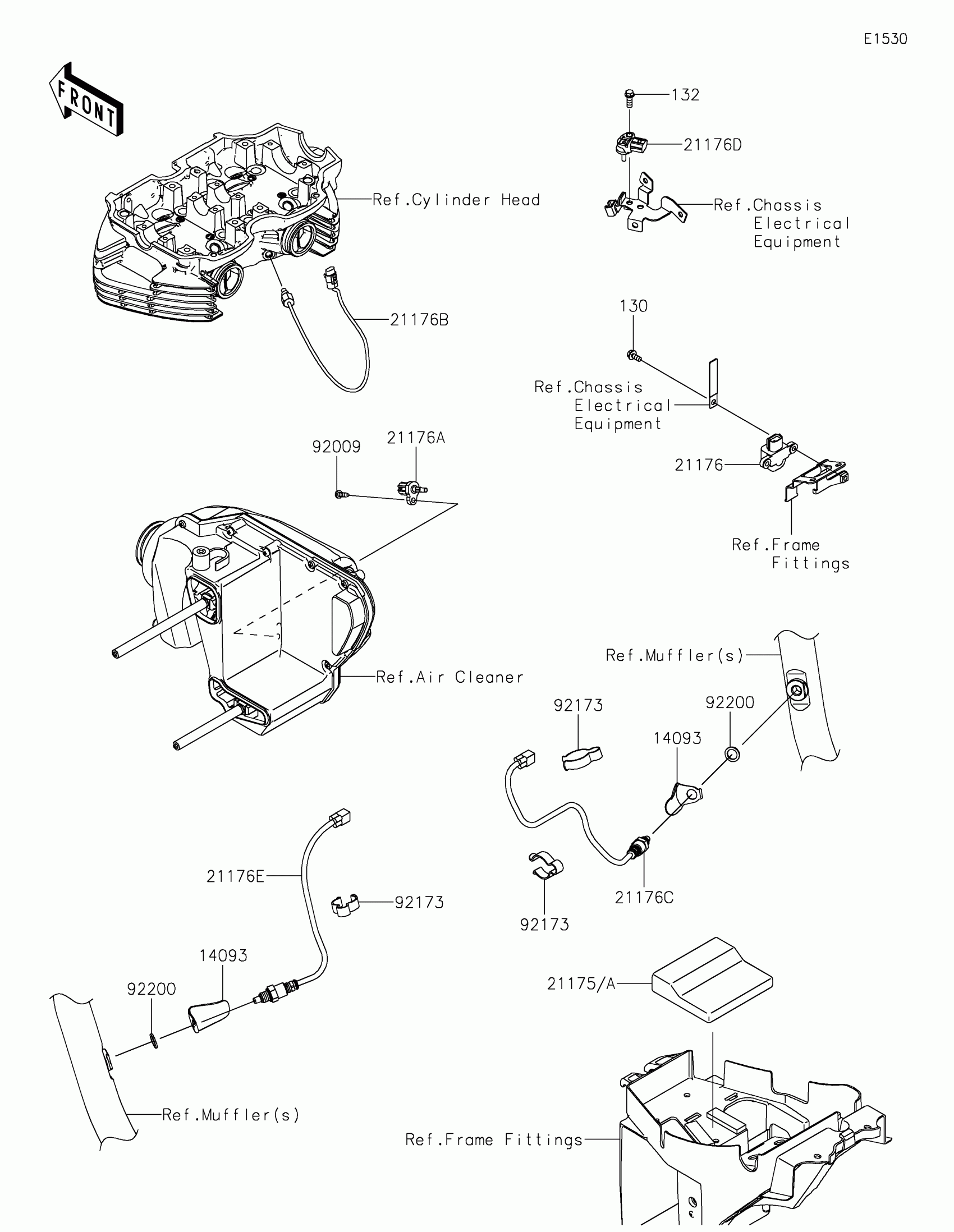

2020 Kawasaki W800 Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,OXYGEN SENSOR

14093-0790

1

$16.80

In stock

21175

1

$899.70

In stock

21175A

1

$899.70

In stock

21176

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176A

1

$24.07

In stock

21176B

SENSOR,TEMP

21176-0072

1

$75.97

In stock

21176C

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

21176D

SENSOR,OXYGEN,LH

21176-0895

1

$168.76

In stock

21176E

SENSOR,OXYGEN,RH

21176-0897

1

$168.76

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92173

CLAMP

92173-0018

1

$9.14

In stock

92200

WASHER,12.5X18X1.6

92200-0087

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

132

1

$1.21

In stock
