2020 Kawasaki W800 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

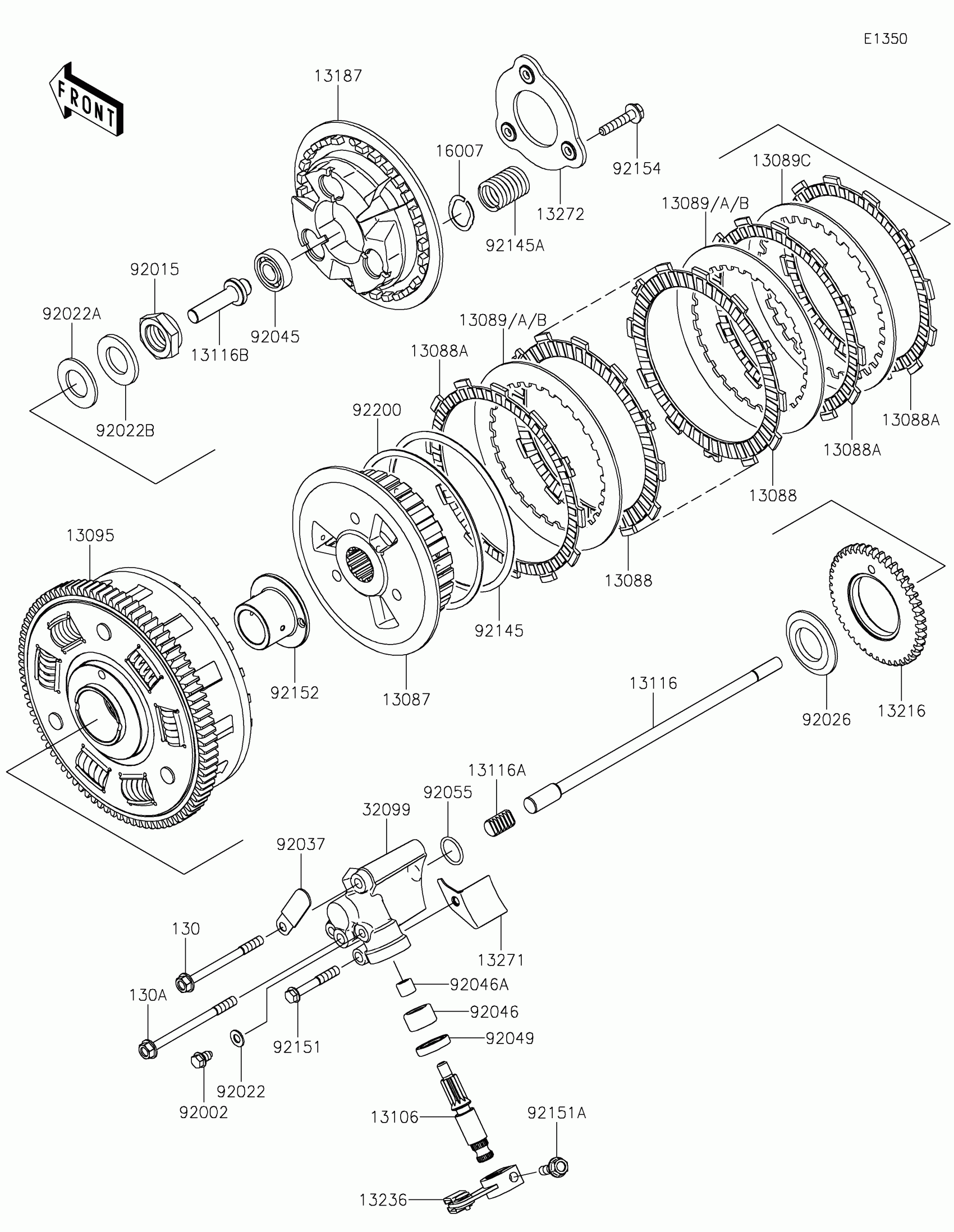

2020 Kawasaki W800 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0581

1

$148.00

In stock

13088

PLATE-FRICTION

13088-0569

1

$19.92

In stock

13088A

PLATE-FRICTION

13088-0601

1

$15.05

In stock

13089

PLATE-CLUTCH,T=2.3

13089-0027

—

$15.44

In stock

13089A

1

$11.29

In stock

13089B

PLATE-CLUTCH,T=1.6

13089-0048

—

$11.29

In stock

13089C

1

$11.36

In stock

13095

HOUSING-COMP-CLUTCH

13095-0594

1

$517.35

In stock

13106

1

$41.26

In stock

13116

ROD-PUSH

13116-0042

1

$68.00

In stock

13116A

ROD-PUSH,CLUTCH,6T

13116-1040

1

$20.88

In stock

13116B

1

$18.29

In stock

13187

1

$109.20

In stock

13216

GEAR-COMP,OIL PUMP

13216-1177

1

$55.98

In stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1331

1
Out of stock

13271

PLATE

13271-1179

1
Out of stock

13272

PLATE

13272-2742

1

$18.05

In stock

16007

SEAT-SPRING

16007-0736

1

$10.49

In stock

32099

CASE,CLUTCH RELEASE

32099-1204

1

$62.33

In stock

92002

1

$4.17

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

1

$3.13

In stock

92022A

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92022B

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25X47X4

92026-1242

1

$29.98

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92045

1

$12.85

In stock

92046

1

$13.53

In stock

92046A

BEARING-NEEDLE,HK0709

92046-1142

1
Out of stock

92049

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92055

RING-O,16.8X1.9

92055-1598

1

$1.95

In stock

92145

SPRING

92145-1250

1

$18.05

In stock

92145A

SPRING

92145-1911

1

$9.07

In stock

92151

BOLT,6X40

92151-1131

1

$3.87

In stock

92151A

BOLT,FLANGED,6X20

92151-1226

1

$2.03

In stock

92152

COLLAR,CLUTCH GEAR

92152-1146

1

$67.61

In stock

92154

BOLT

92154-3982

1

$2.68

In stock

92200

WASHER,T=1.0

92200-1579

1
Out of stock

130

BOLT-FLANGED,6X70

130CD0670

1

$4.46

In stock

130A

BOLT-FLANGED,6X80

130CD0680

1

$2.12

In stock
