2020 Kawasaki W800 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

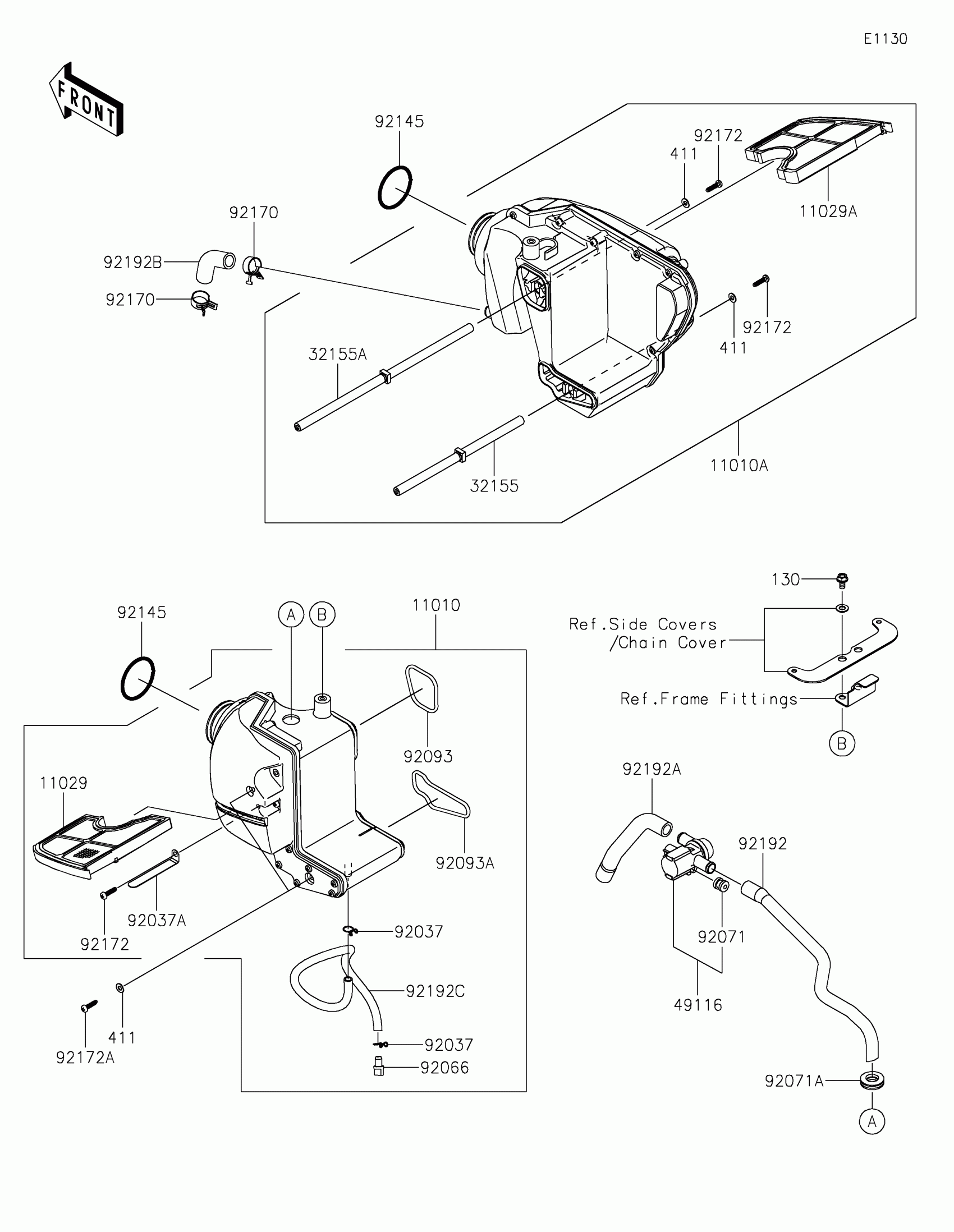

2020 Kawasaki W800 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR,LH

11010-0972

1

$227.81

In stock

11010A

FILTER-ASSY-AIR,RH

11010-0973

1

$227.81

In stock

11029

ELEMENT-ASSY-AIR FILTER,LH

11029-0012

1
Out of stock

11029A

ELEMENT-ASSY-AIR FILTER,RH

11029-0013

1
Out of stock

32155

PIPE,L=218

32155-0462

1

$12.44

In stock

32155A

PIPE,L=303

32155-0463

1

$14.25

In stock

49116

VALVE-ASSY,AIR CUT

49116-0017

1

$123.15

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP

92037-1679

1

$4.37

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92071

GROMMET

92071-0026

1

$3.49

In stock

92071A

1

$3.68

In stock

92093

SEAL

92093-1496

1

$3.27

In stock

92093A

SEAL

92093-1497

1

$3.97

In stock

92145

SPRING

92145-0795

1

$5.71

In stock

92170

CLAMP

92170-1060

1

$7.93

In stock

92172

SCREW,TAPPING,5X20

92172-0009

1

$2.29

In stock

92172A

SCREW,TAPPING,5X20

92172-0011

1

$1.51

In stock

92192

TUBE,ACV-A/C

92192-0916

1
Out of stock

92192A

TUBE,HEAD-ACV

92192-0917

1
Out of stock

92192B

TUBE,BREATHER

92192-0972

1
Out of stock

92192C

TUBE,DRAIN

92192-1034

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

411

WASHER-PLAIN,5MM

411AB0500

1

$0.76

In stock
