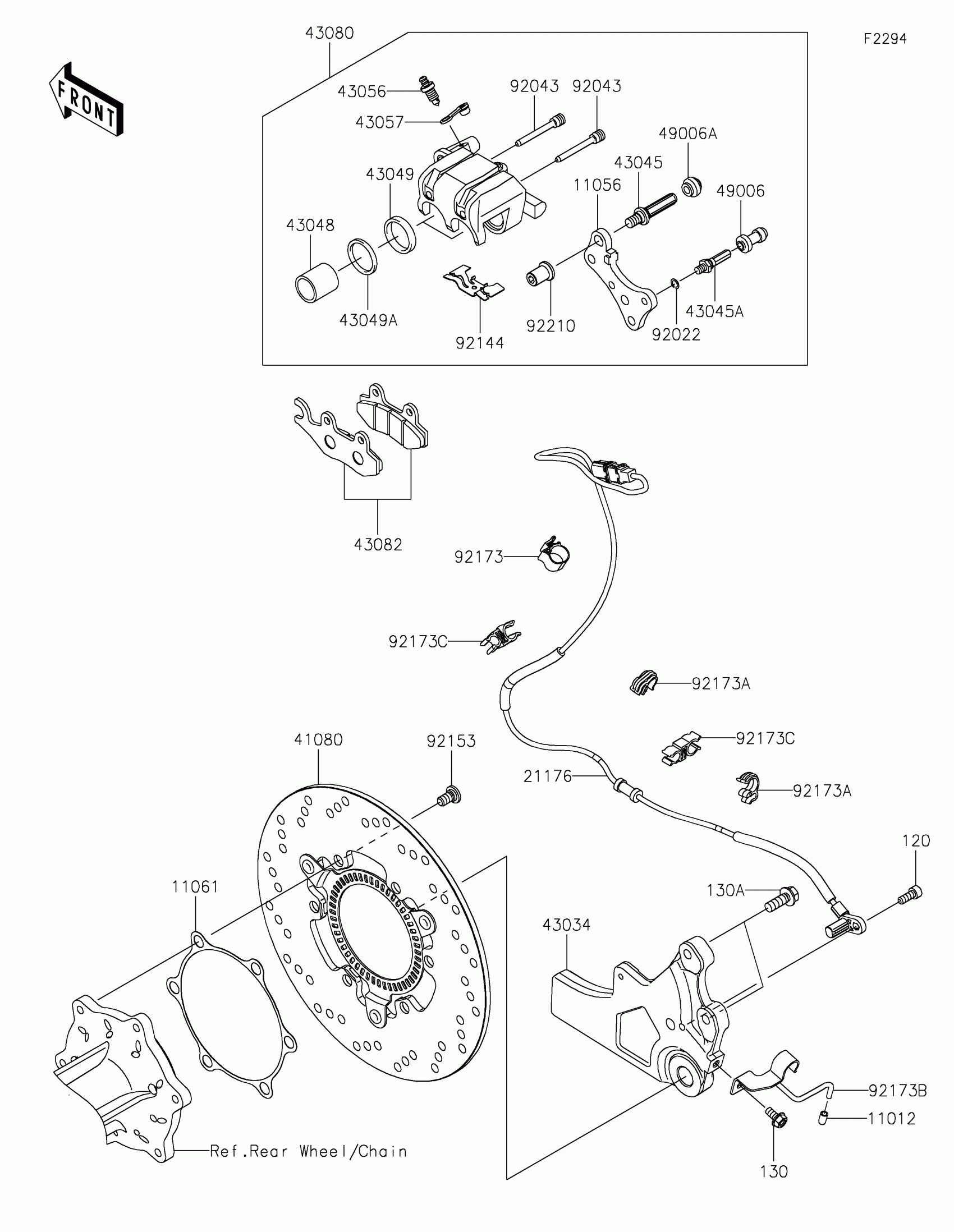

Find the part on the Rear Brake diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1438

1

$4.39

In stock

11056

BRACKET,CALIPER

11056-0202

1

$121.79

In stock

11061

GASKET

11061-1318

1

$15.56

In stock

21176

SENSOR,ABS,RR

21176-0922

1

$123.63

In stock

41080

DISC,RR

41080-0698

1

$476.92

In stock

43034

HOLDER-BRAKE

43034-0154

1

$149.98

In stock

43045

SHAFT-CALIPER

43045-0004

1

$21.58

In stock

43045A

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-1066

1

$74.44

In stock

43049

PACKING

43049-1063

1

$6.39

In stock

43049A

PACKING

43049-1064

1

$4.88

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0096-25S

1

$397.40

In stock

43082

PAD-ASSY-BRAKE

43082-0128

1

$42.68

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92153

BOLT,SOCKET,8X15

92153-1548

1
Out of stock

92173

CLAMP,CLIP

92173-0127

1

$14.78

In stock

92173A

1

$1.27

In stock

92173B

CLAMP,BRAKE HOSE

92173-2135

1

$7.59

In stock

92173C

CLAMP

92173-2163

1

$4.15

In stock

92210

NUT

92210-0615

1
Out of stock

120

BOLT-SOCKET,6X16

120CB0616

1

$1.17

In stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130A

BOLT-FLANGED,8X22

130BC0822

1

$2.20

In stock
