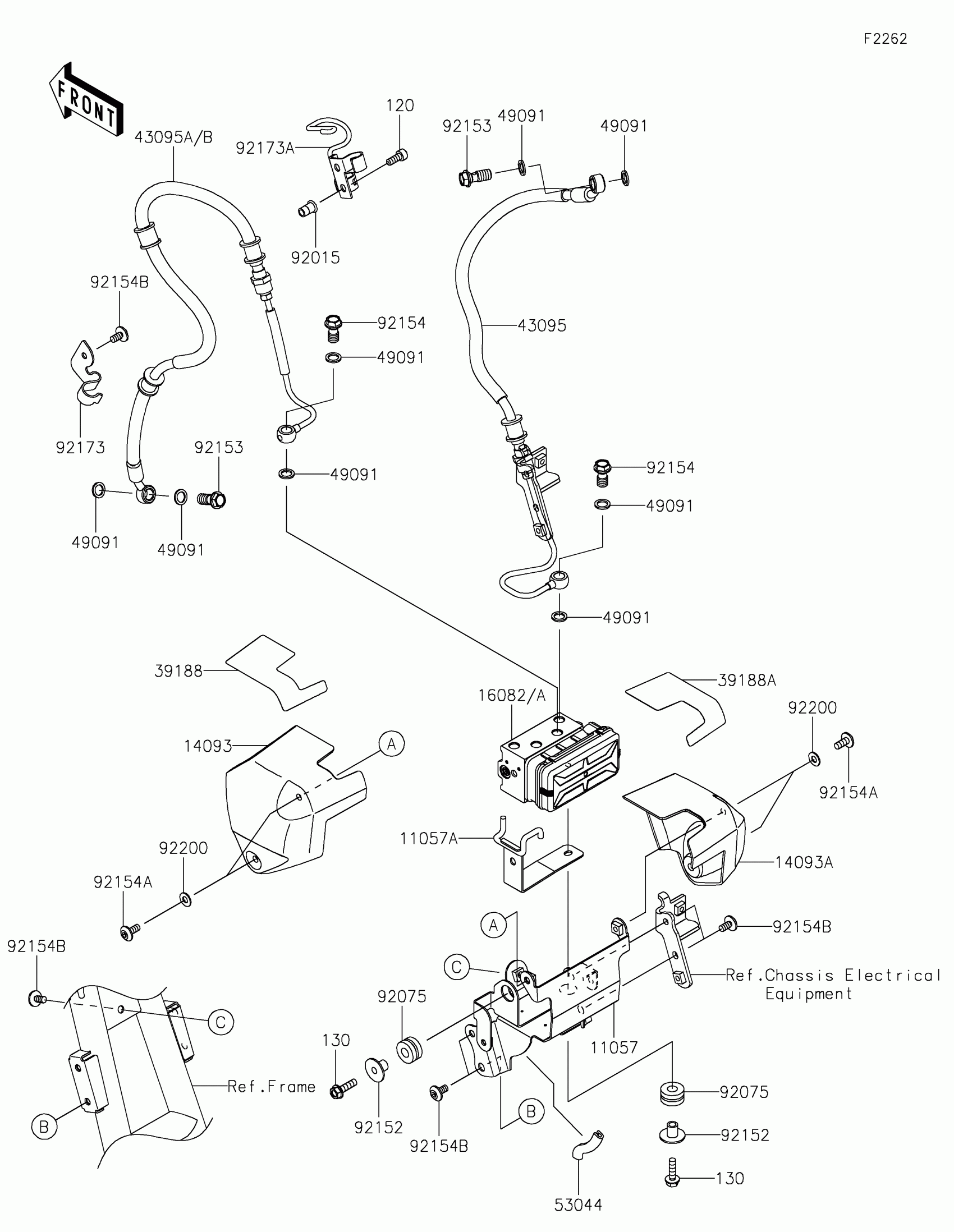

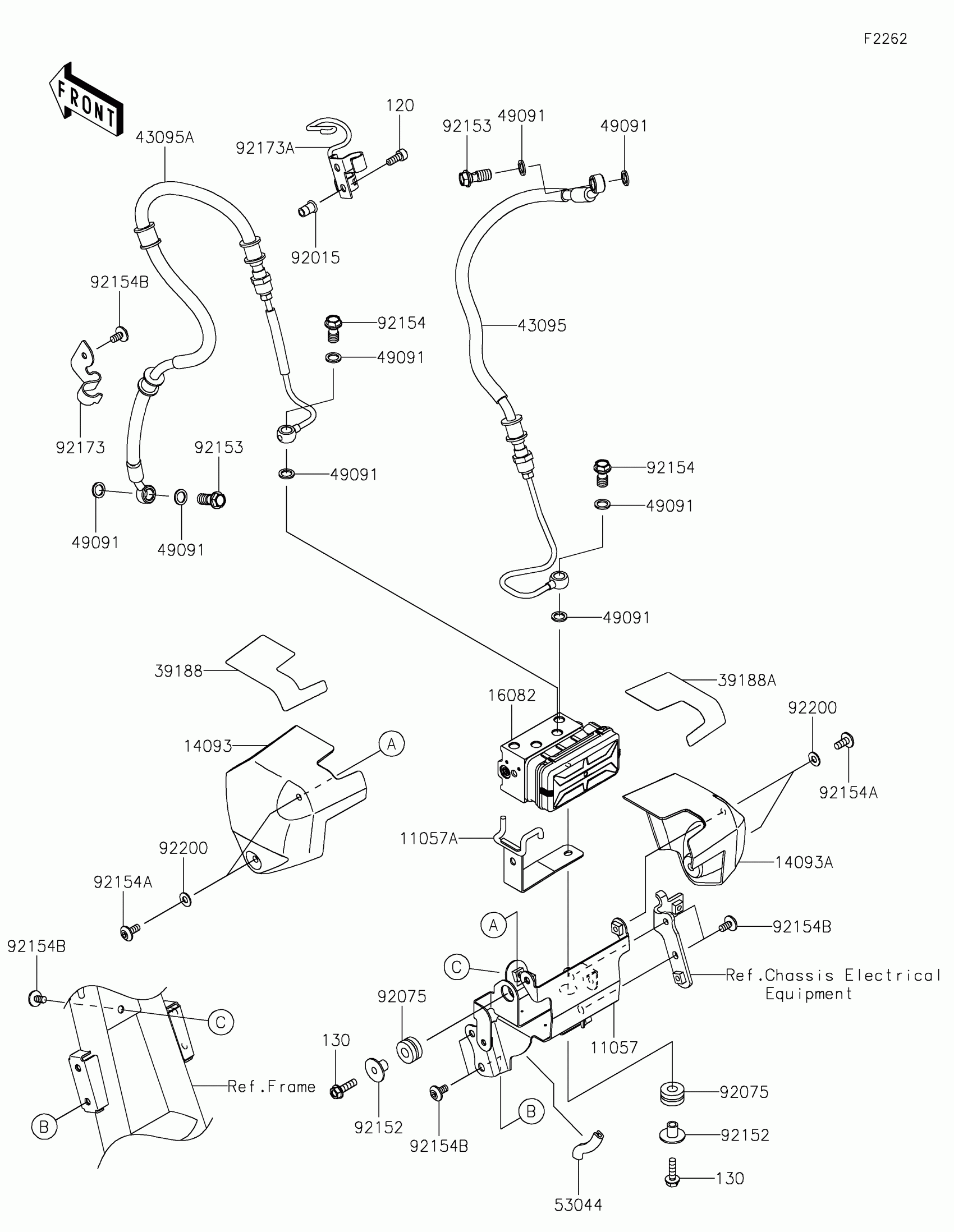

Find the part on the Brake Piping diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-1865

1

$48.39

In stock

11057A

BRACKET,ABS UNIT

11057-2292

1

$15.05

In stock

14093

COVER,ABS UNIT,LH

14093-0772

1

$13.02

In stock

14093A

COVER,ABS UNIT,RH

14093-0773

1

$13.02

In stock

16082

1

$769.59

In stock

39188

1

$18.69

In stock

39188A

1

$18.69

In stock

43095

1

$141.56

In stock

43095A

1

$191.35

In stock

49091

1

$1.81

In stock

53044

TRIM,L=50

53044-0699

1

$4.22

In stock

92015

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92075

1

$3.72

In stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92154

BOLT,BANJO,10X19

92154-1554

1

$22.00

In stock

92154A

BOLT,SOCKET,6X14

92154-1807

1

$2.64

In stock

92154B

BOLT,SOCKET,6X12

92154-2706

1
Out of stock

92173

CLAMP,BRAKE HOSE

92173-2059

1

$7.39

In stock

92173A

CLAMP,BRAKE HOSE

92173-2153

1

$17.12

In stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

120

BOLT-SOCKET,6X16

120CB0616

1

$1.17

In stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock
