2020 Kawasaki W800 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

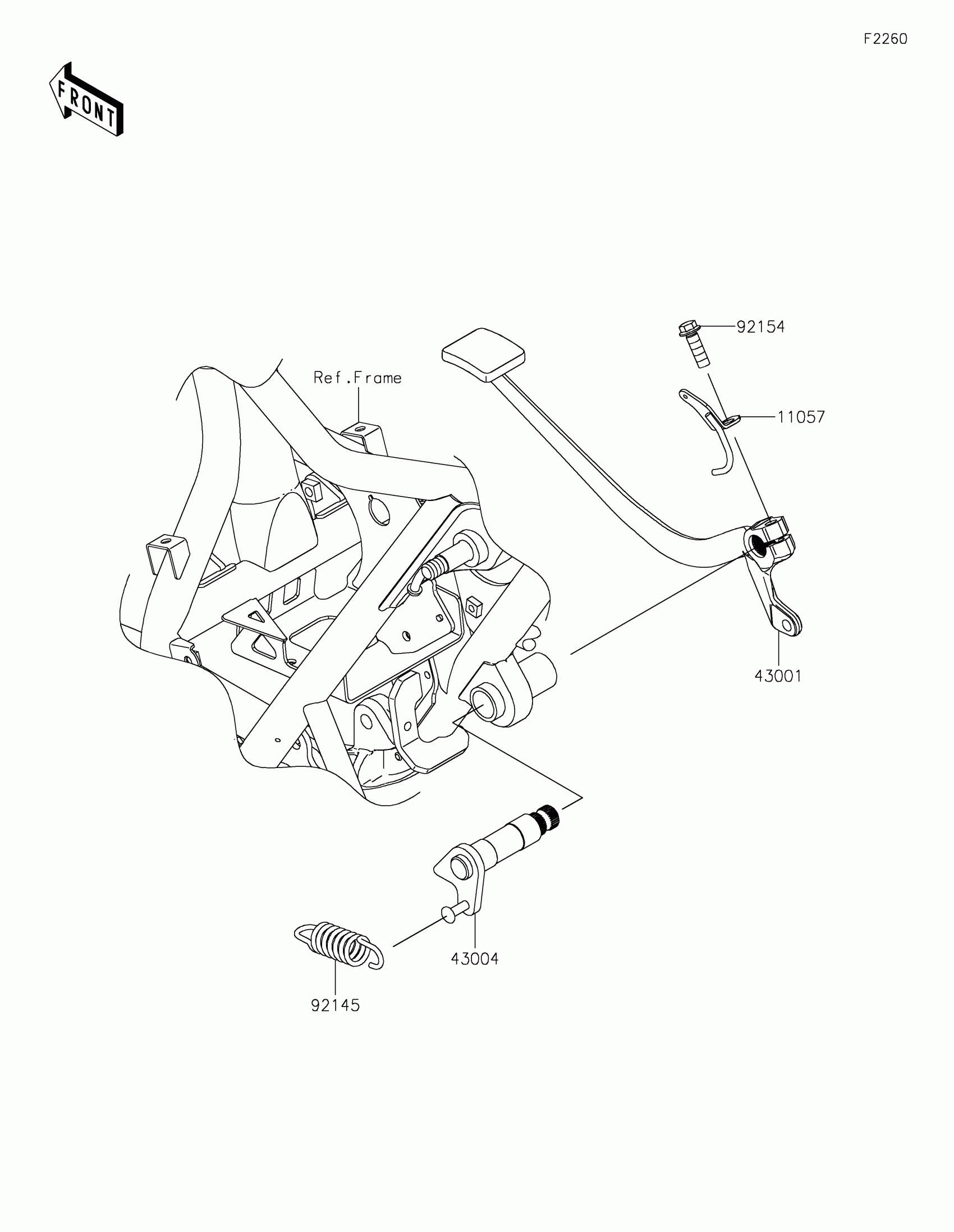

2020 Kawasaki W800 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$1.53

In stock

43001

LEVER-BRAKE,PEDAL

43001-0769

1

$187.55

In stock

43004

SHAFT-BRAKE

43004-0006

1

$54.87

In stock

92145

SPRING,RETURN

92145-1835

1

$9.88

In stock

92154

BOLT,FLANGED,8X25

92154-1019

1

$2.44

In stock
