2020 Kawasaki W800 Front Master Cylinder Diagram

← All diagrams

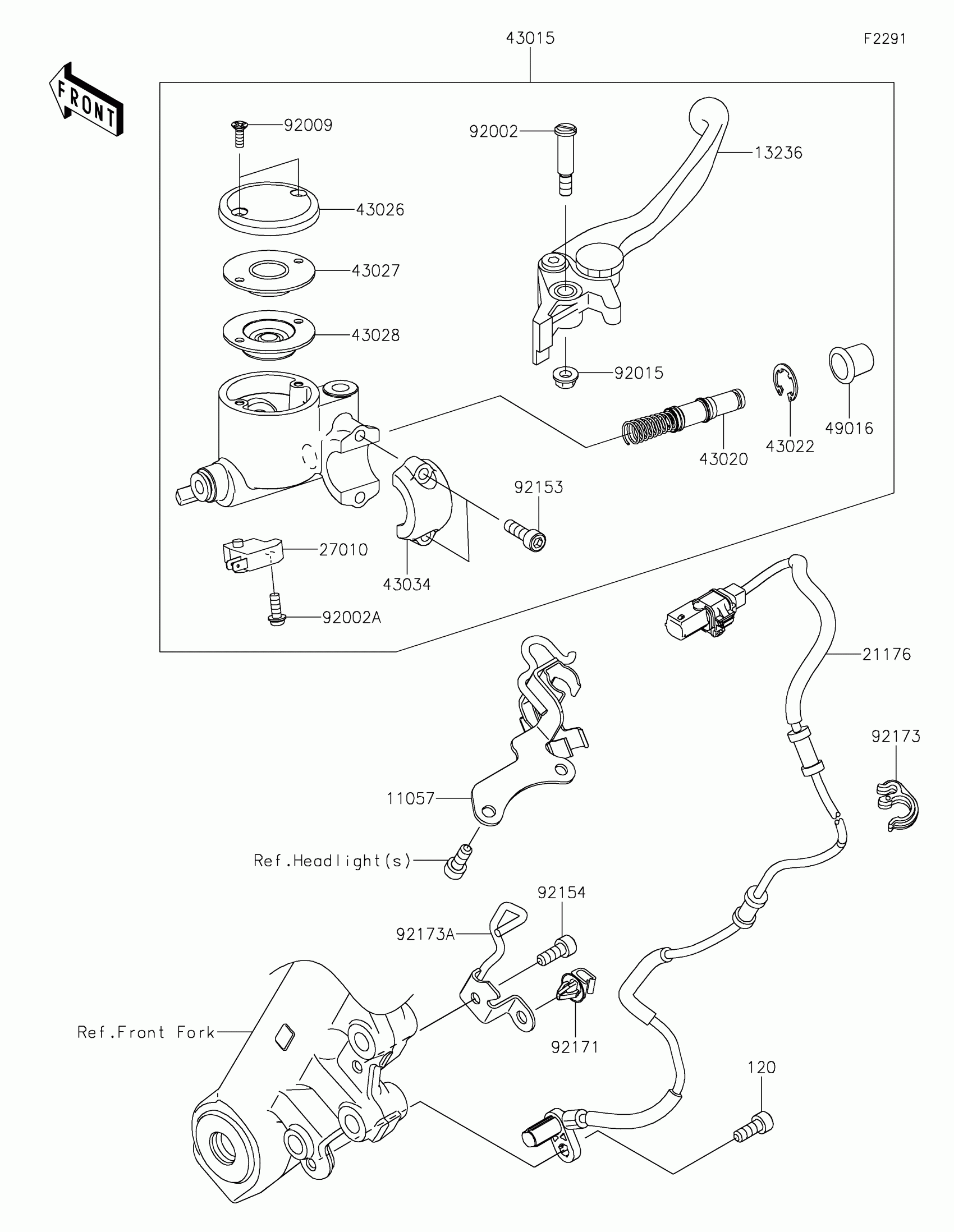

Find the part on the Front Master Cylinder diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BRAKE HOSE

11057-1872

1

$13.54

In stock

13236

LEVER-COMP,FRONT BRAKE

13236-1221

1
Out of stock

21176

SENSOR,ABS,FR

21176-0921

1

$128.39

In stock

27010

SWITCH,BRAKE

27010-0762

1

$32.10

In stock

43015

1

$427.88

In stock

43020

PISTON-COMP-BRAKE

43020-1098

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-0024

1

$38.68

In stock

43027

PLATE-DIAPHRAGM

43027-1058

1

$5.02

In stock

43028

DIAPHRAGM

43028-1087

1

$14.94

In stock

43034

HOLDER-BRAKE

43034-0065

1

$39.20

In stock

49016

1

$6.90

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92153

BOLT,SOCKET,6X20

92153-0417

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-4074

1

$1.78

In stock

92171

CLAMP

92171-0640

1

$3.51

In stock

92173

1

$1.27

In stock

92173A

CLAMP,SENSOR LINE

92173-2159

1

$18.46

In stock

120

BOLT-SOCKET,6X16

120CB0616

1

$1.17

In stock
