2012 Kawasaki W800 (European) Meter Diagram

← All diagrams

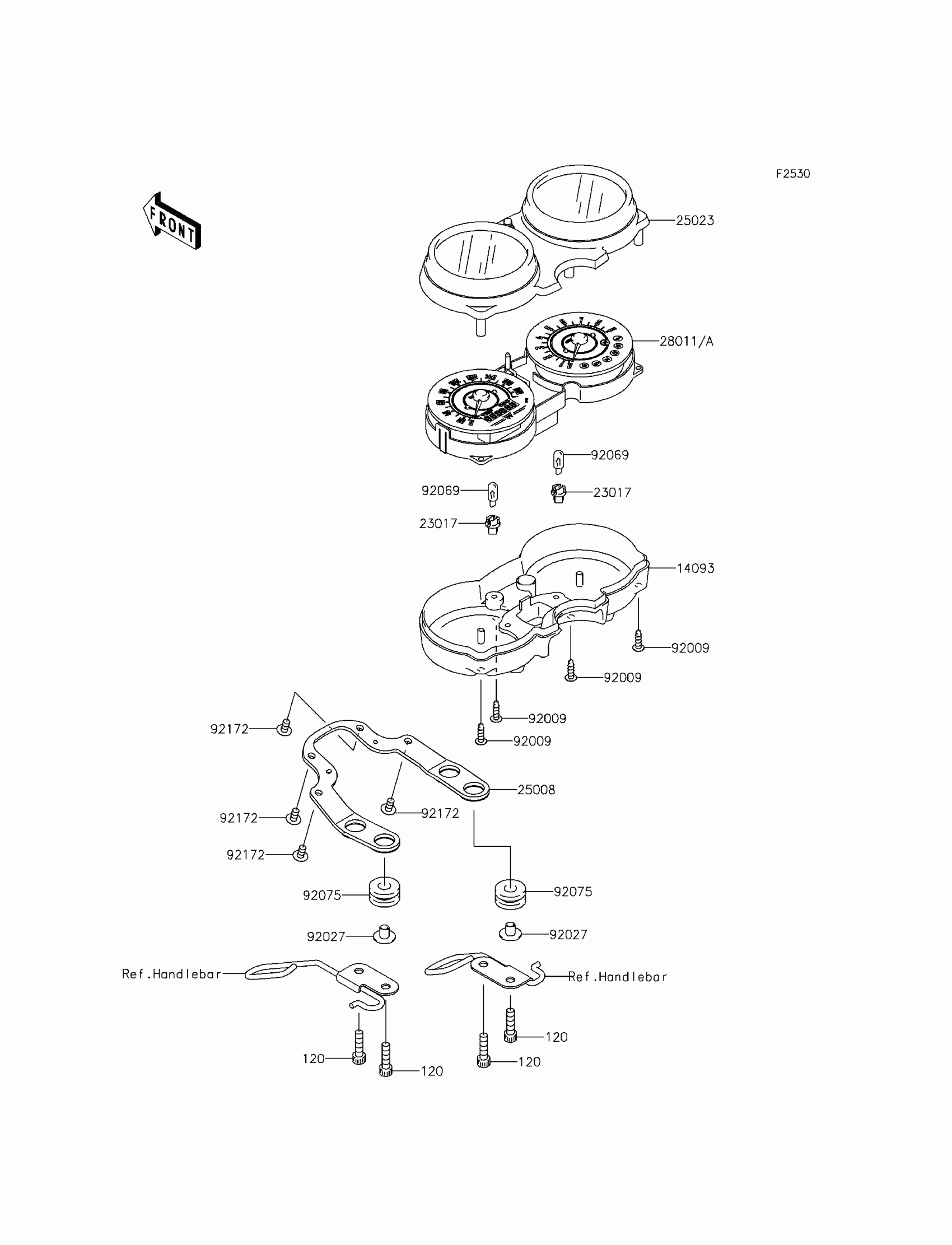

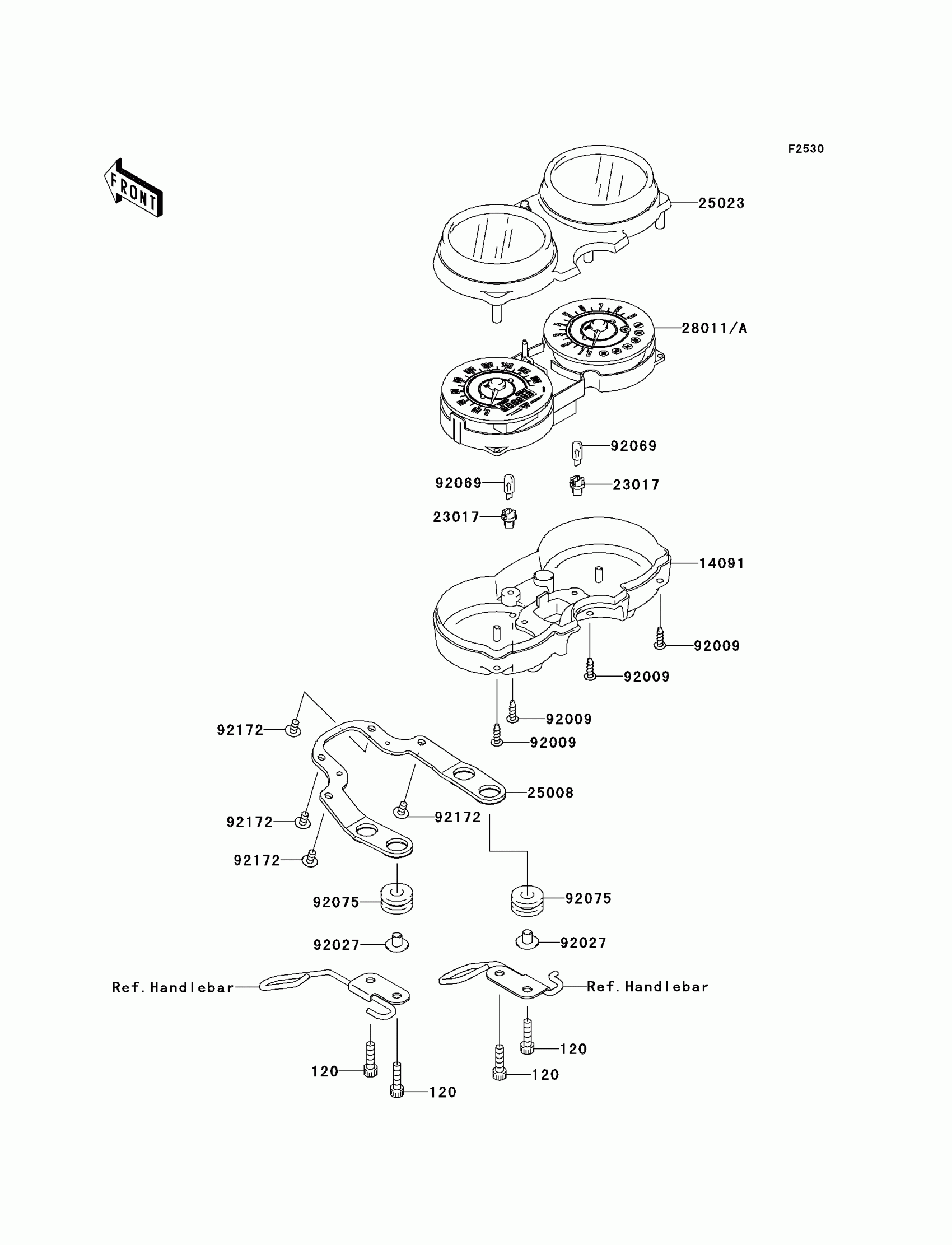

Find the part on the Meter diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki W800 (European) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120CA0622

1
Out of stock

14091

COVER,METER CASE,LWR

14091-1085

1
Out of stock

23017

SOCKET,WEDGE BASE,T-5

23017-1063

1
Out of stock

25008

BRACKET-METER

25008-0035

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0022

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92069

BULB,12V 2W,T5

92069-1105

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92172

SCREW,5X10

92172-0007

1
Out of stock

28011

METER,SPEED&TACHO,KPH

28011-0187

1
Out of stock

28011A

METER,SPEED&TACHO,MPH/KPH

28011-0188

1
Out of stock
