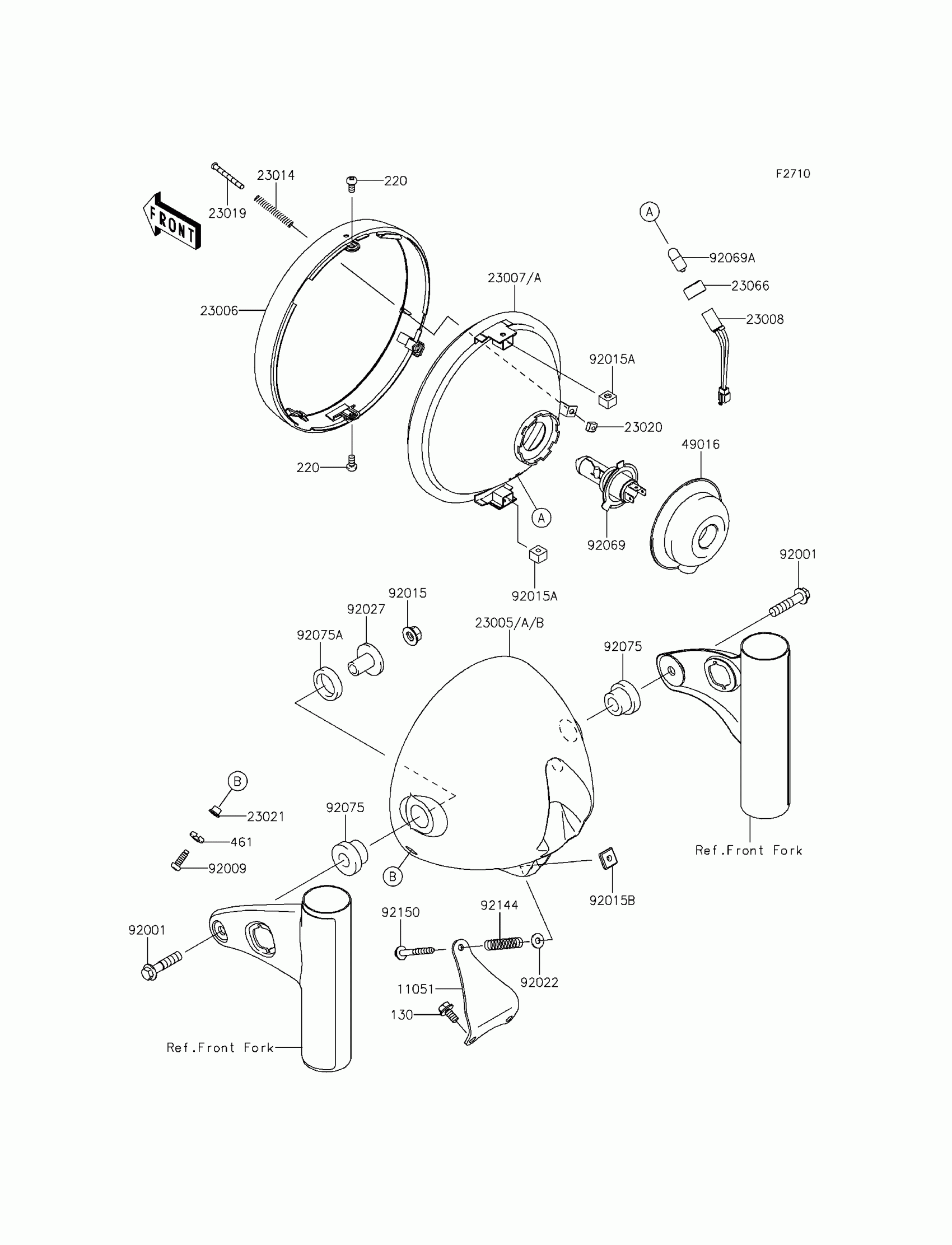

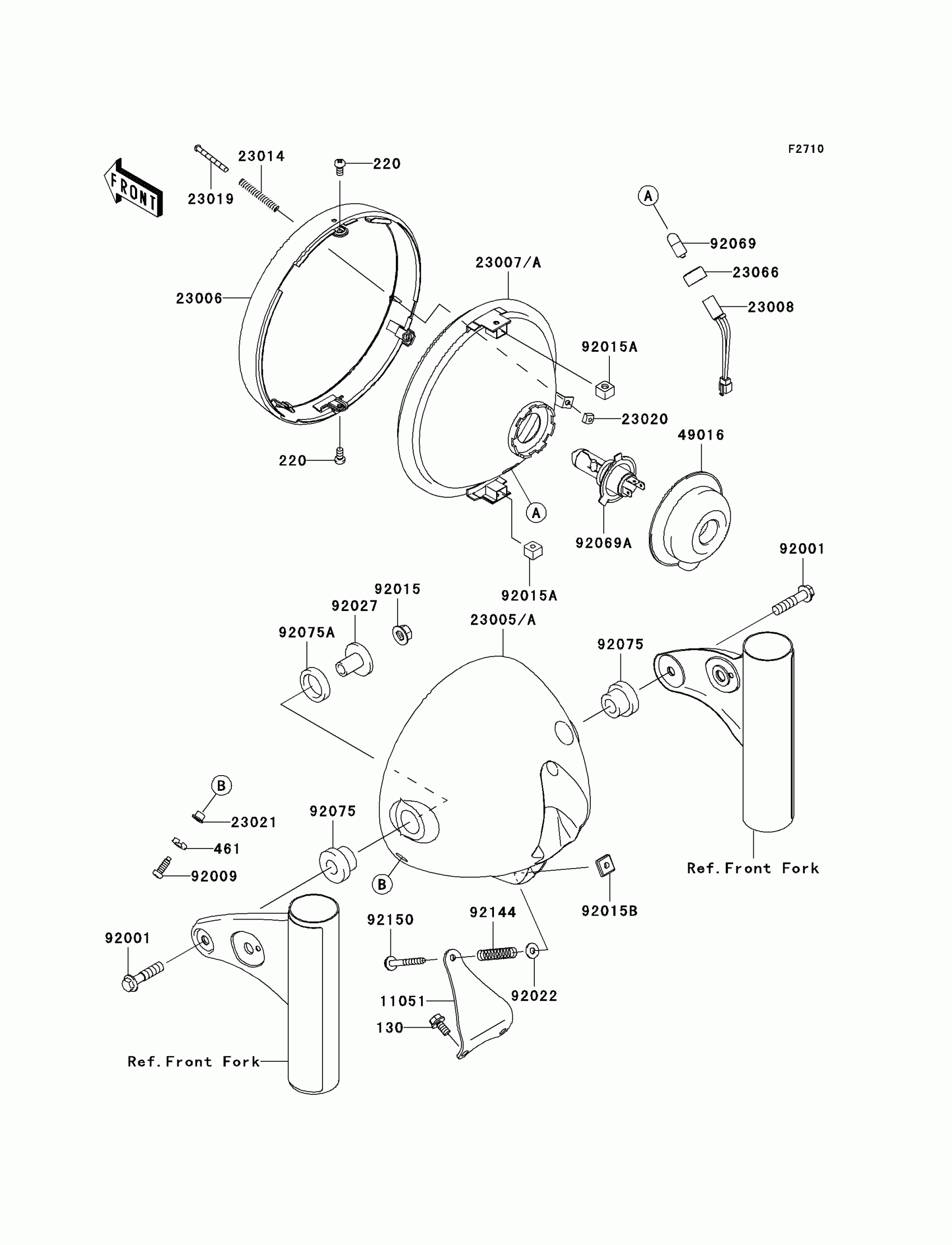

Find the part on the Headlight diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki W800 (European) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock

461

WASHER-SPRING,5MM

461S0500

1
Out of stock

11051

BRACKET

11051-1473

1
Out of stock

23005A

BODY-COMP-HEAD LAMP,M.D.GREEN

23005-0029-727

1
Out of stock

23006

RIM-LAMP

23006-0054

1
Out of stock

23008

SOCKET-ASSY,PARKING LAMP

23008-1616

1
Out of stock

23014

SPRING,FOCUS ADJUSTING

23014-005

1
Out of stock

23019

SCREW,FOCUS ADJUSTING

23019-021

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

23021

WASHER

23021-010

1
Out of stock

23066

DAMPER,PARKING LAMP

23066-008

1
Out of stock

49016

COVER-SEAL,HEAD LAMP

49016-1046

1
Out of stock

92001

BOLT,FLANGED,8X35

92001-1910

1
Out of stock

92009

SCREW,5MM

92009-1947

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,5MM

92015-1157

1
Out of stock

92015B

NUT,5MM,FOCUS ADJUST

92015-1799

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92027

COLLAR,L=20

92027-1131

1
Out of stock

92069

BULB,12V 4W

92069-071

1
Out of stock

92069A

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER,HEAD LAMP FITTING

92075-1109

1
Out of stock

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

1
Out of stock

92144

SPRING

92144-1417

1
Out of stock

92150

BOLT,ADJUST,5X45

92150-1590

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1362

1
Out of stock

23007A

LENS-COMP,HEAD LAMP

23007-1416

1
Out of stock
