2012 Kawasaki W800 (European) Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

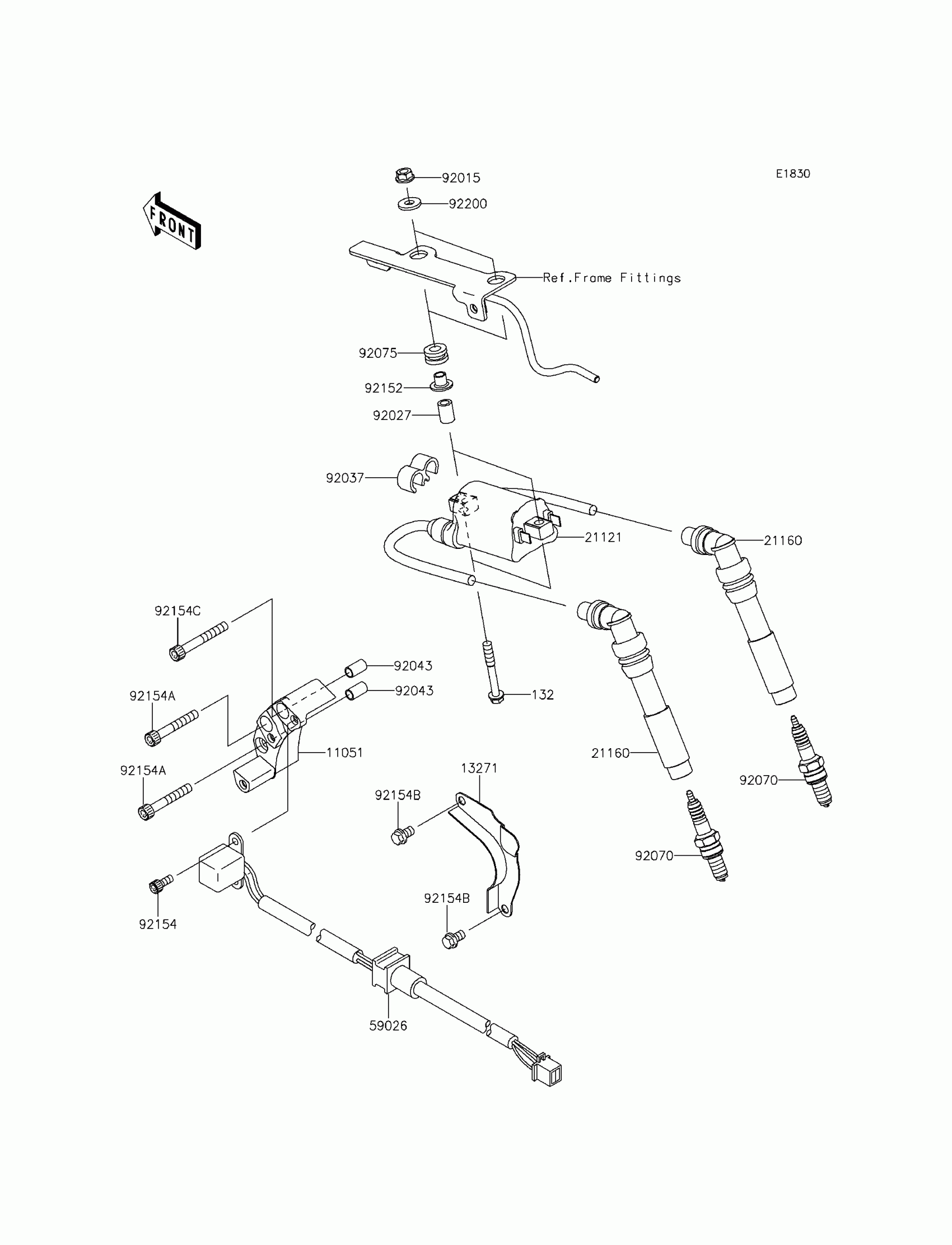

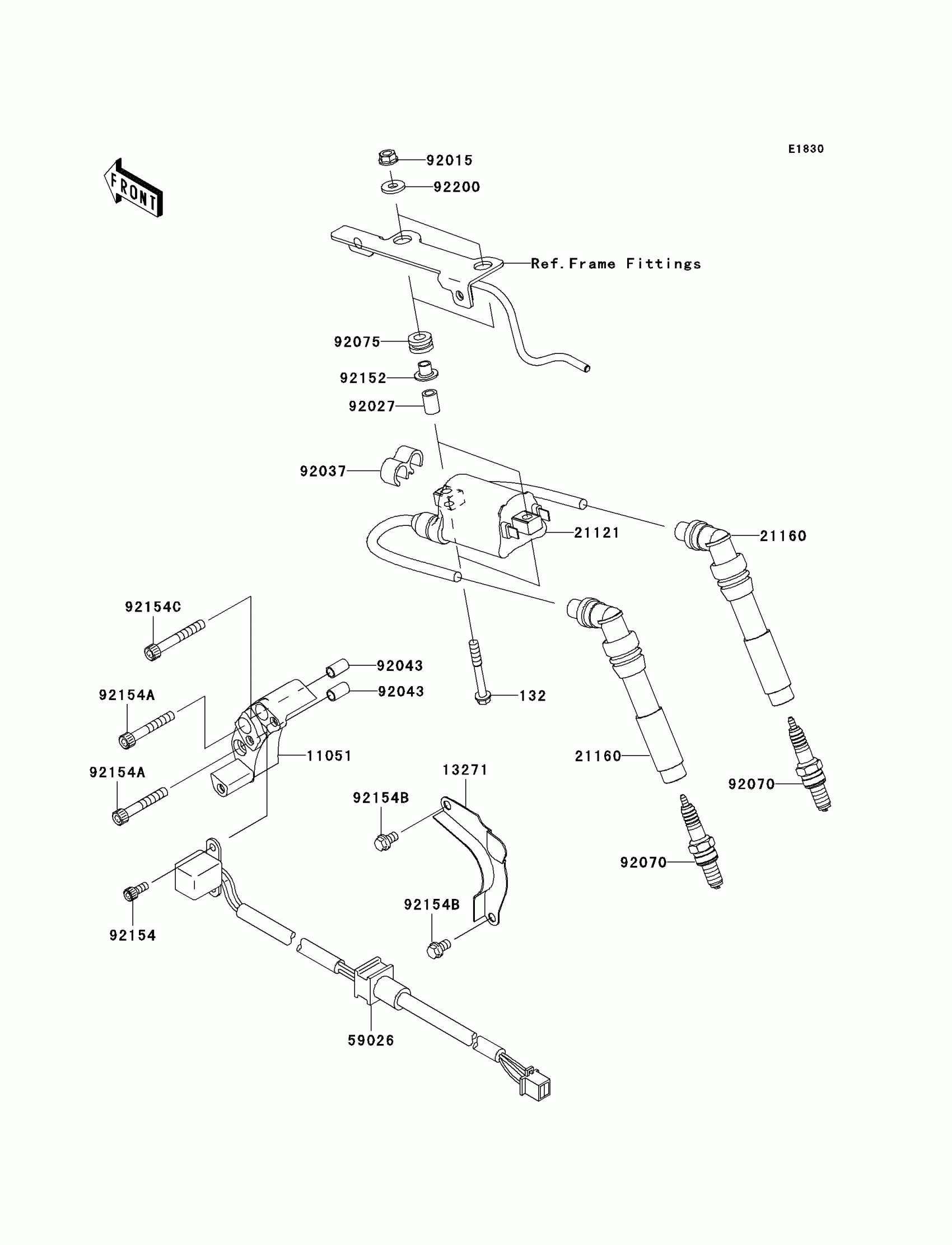

2012 Kawasaki W800 (European) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X45

132BB0645

1
Out of stock

11051

BRACKET,PULSING COIL

11051-1213

1
Out of stock

13271

PLATE

13271-1189

1
Out of stock

21121

COIL-IGNITION

21121-1283

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0016

1
Out of stock

59026

COIL-PULSING

59026-0036

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92027

COLLAR,6.3X10X14

92027-1453

1
Out of stock

92037

CLAMP,HOSE

92037-1603

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92070

PLUG-SPARK,CR8E(NGK)

92070-0019

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0503

1
Out of stock

92154A

BOLT,SOCKET,6X40

92154-0505

1
Out of stock

92154B

BOLT,FLANGED,6X10

92154-0507

1
Out of stock

92154C

BOLT,SOCKET,6X45

92154-0508

1
Out of stock

92200

WASHER,6.5X16X2

92200-0312

1
Out of stock
