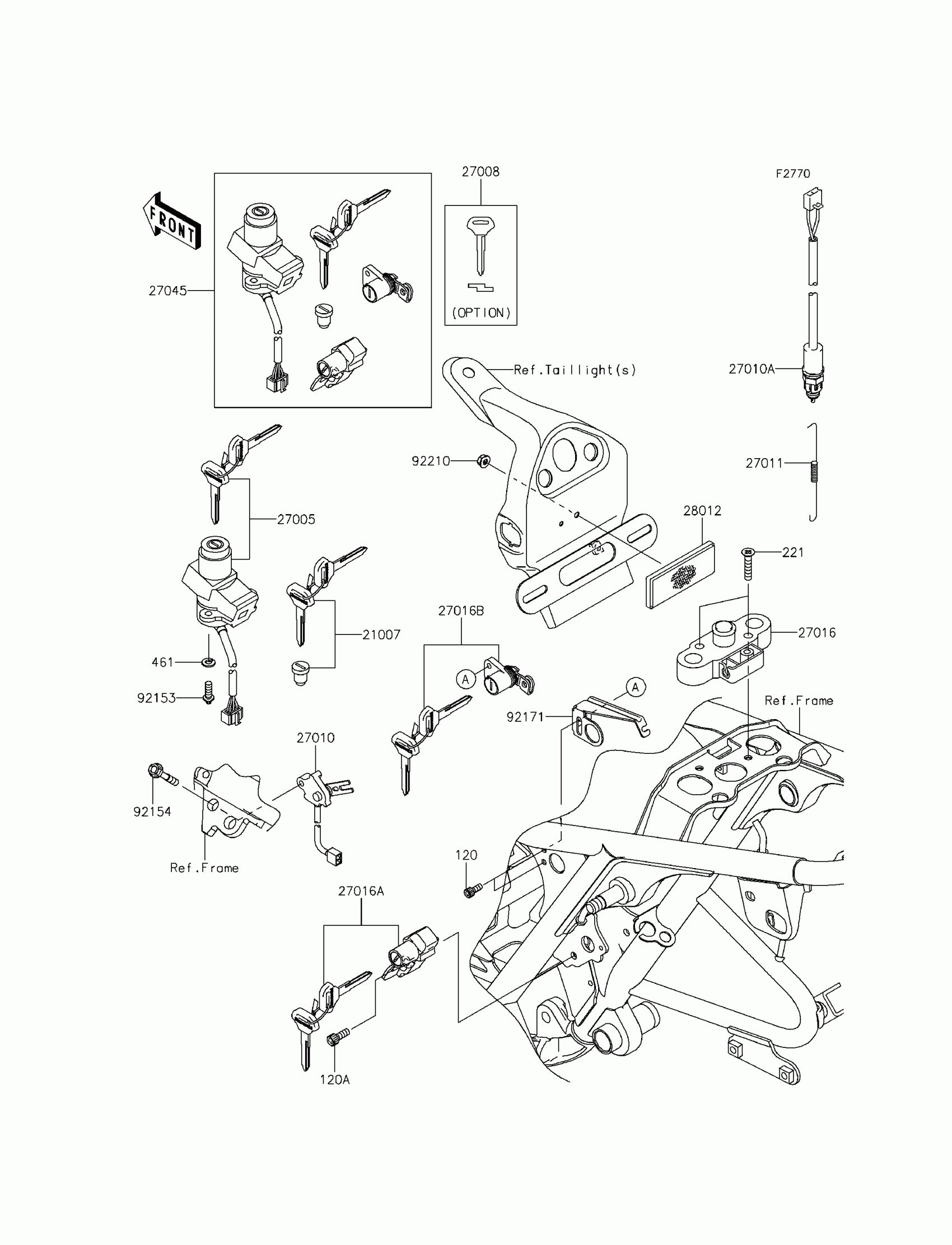

Find the part on the Ignition Switch diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki W800 (European) Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120CB0512

1

$1.51

In stock

120A

BOLT-SOCKET,6X16

120CB0616

1

$1.17

In stock

221

1

$1.54

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5043

1
Out of stock

27005

1

$180.93

In stock

27008

KEY-LOCK,BLANK

27008-1189

1

$13.89

In stock

27010

SWITCH,SIDE STAND

27010-1468

1

$68.19

In stock

27010A

SWITCH,REAR BRAKE

27010-1486

1

$37.27

In stock

27011

1

$6.75

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,HELMET

27016-5249

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5256

1

$67.31

In stock

27045

SWITCH-ASSY

27045-5453

1

$356.27

In stock

28012

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92153

BOLT,TORX,6X16

92153-0967

1
Out of stock

92154

BOLT,FLANGED,6X40

92154-0859

1

$4.95

In stock

92171

CLAMP

92171-1072

1

$9.90

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
