2020 Kawasaki W800 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

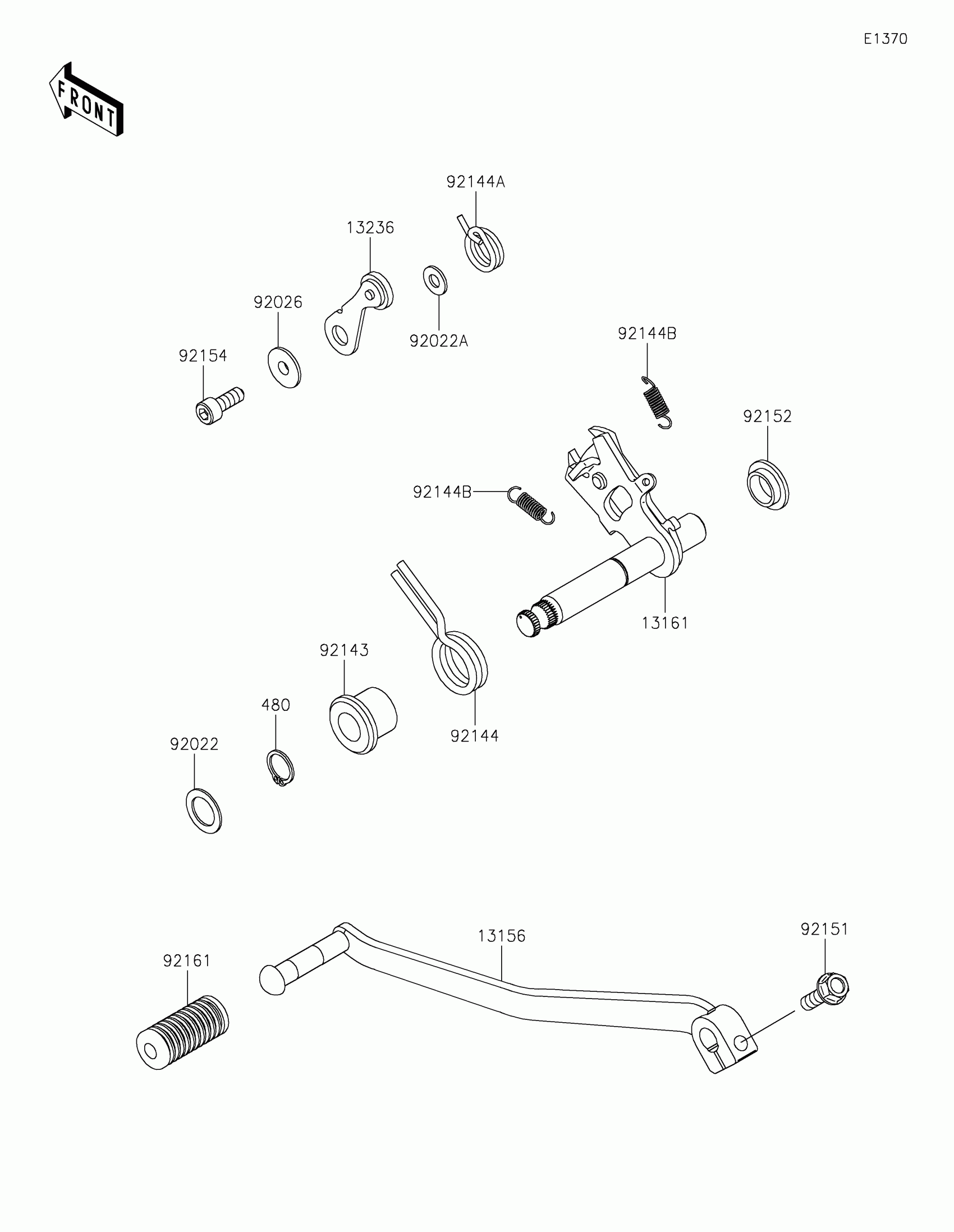

2020 Kawasaki W800 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13156

LEVER-CHANGE,PEDAL

13156-0568

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-0558

1
Out of stock

13236

LEVER-COMP,POSITION

13236-1253

1
Out of stock

92022

WASHER,13.3X20X1

92022-1496

1
Out of stock

92022A

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92026

SPACER

92026-1217

1
Out of stock

92143

COLLAR,RETURN SPRING

92143-1498

1
Out of stock

92144

SPRING,CHANGE SHAFT RETURN

92144-1628

1
Out of stock

92144A

SPRING,LEVER POSITION

92144-1873

1
Out of stock

92144B

SPRING,CHANGE LEVER

92144-1975

1
Out of stock

92151

BOLT,FLANGED,6X20

92151-1226

1
Out of stock

92152

COLLAR

92152-1075

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0484

1
Out of stock

92161

DAMPER,CHANGE PEDAL

92161-1300

1
Out of stock

480

CIRCLIP-TYPE-C,13MM

480J1300

1
Out of stock
