2020 Kawasaki W800 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

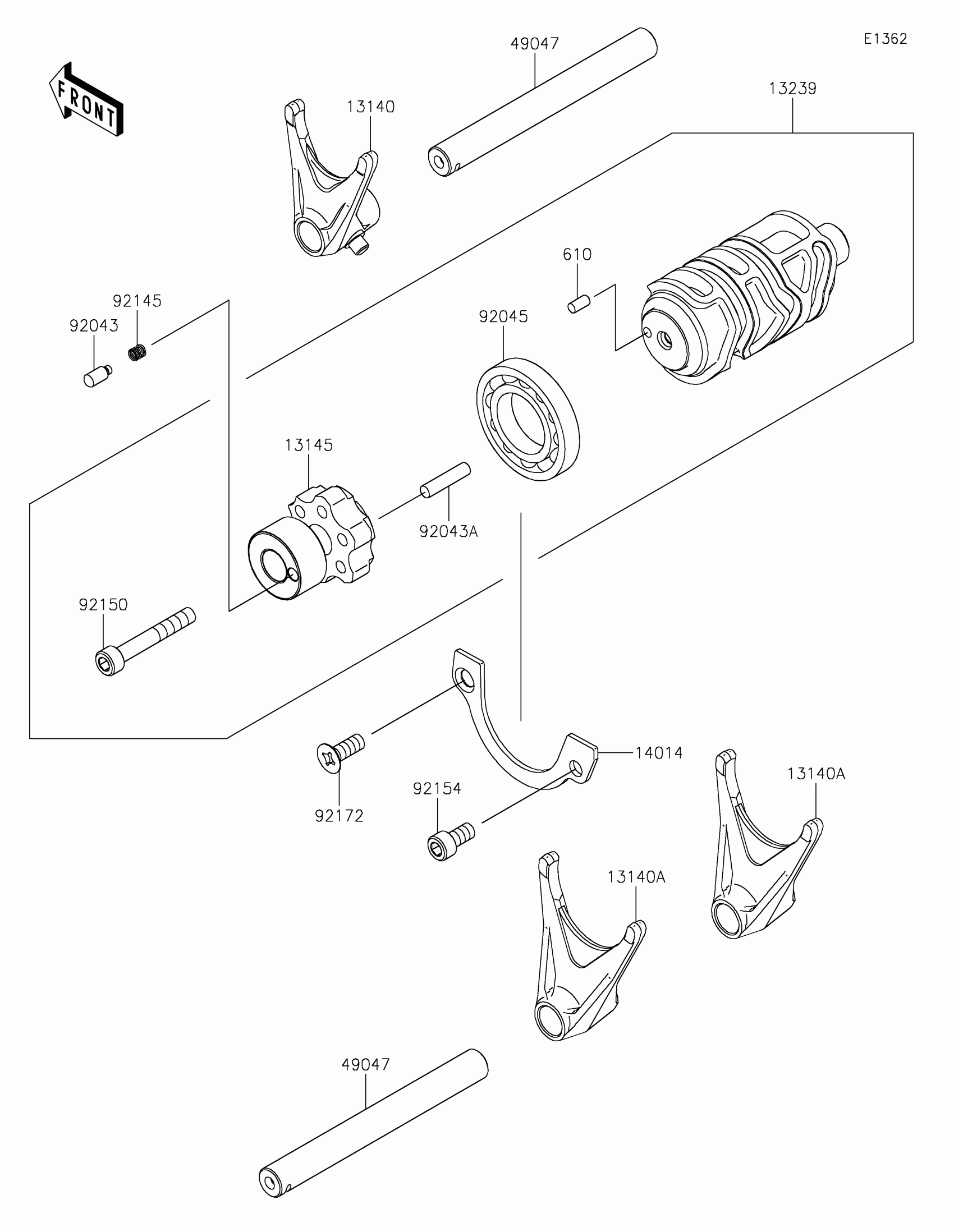

2020 Kawasaki W800 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

1

$86.02

In stock

13140A

1

$86.02

In stock

13145

CAM-CHANGE DRUM

13145-1083

1

$54.55

In stock

13239

DRUM-ASSY-CHANGE

13239-0557

1
Out of stock

14014

PLATE-POSITION

14014-1141

1
Out of stock

49047

ROD-SHIFT

49047-1102

1

$21.47

In stock

92043

PIN

92043-0712

1

$4.46

In stock

92043A

PIN,5X21.8

92043-1518

1

$2.27

In stock

92045

BEARING-BALL,16005

92045-1045

1

$28.80

In stock

92145

SPRING

92145-1414

1

$3.16

In stock

92150

BOLT,SOCKET,6X40

92150-1958

1

$4.85

In stock

92154

BOLT,SOCKET,6X12

92154-0483

1

$1.44

In stock

92172

SCREW,6X16

92172-0503

1

$1.44

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
