2020 Kawasaki W800 Cafe Rear Master Cylinder Diagram

← All diagrams

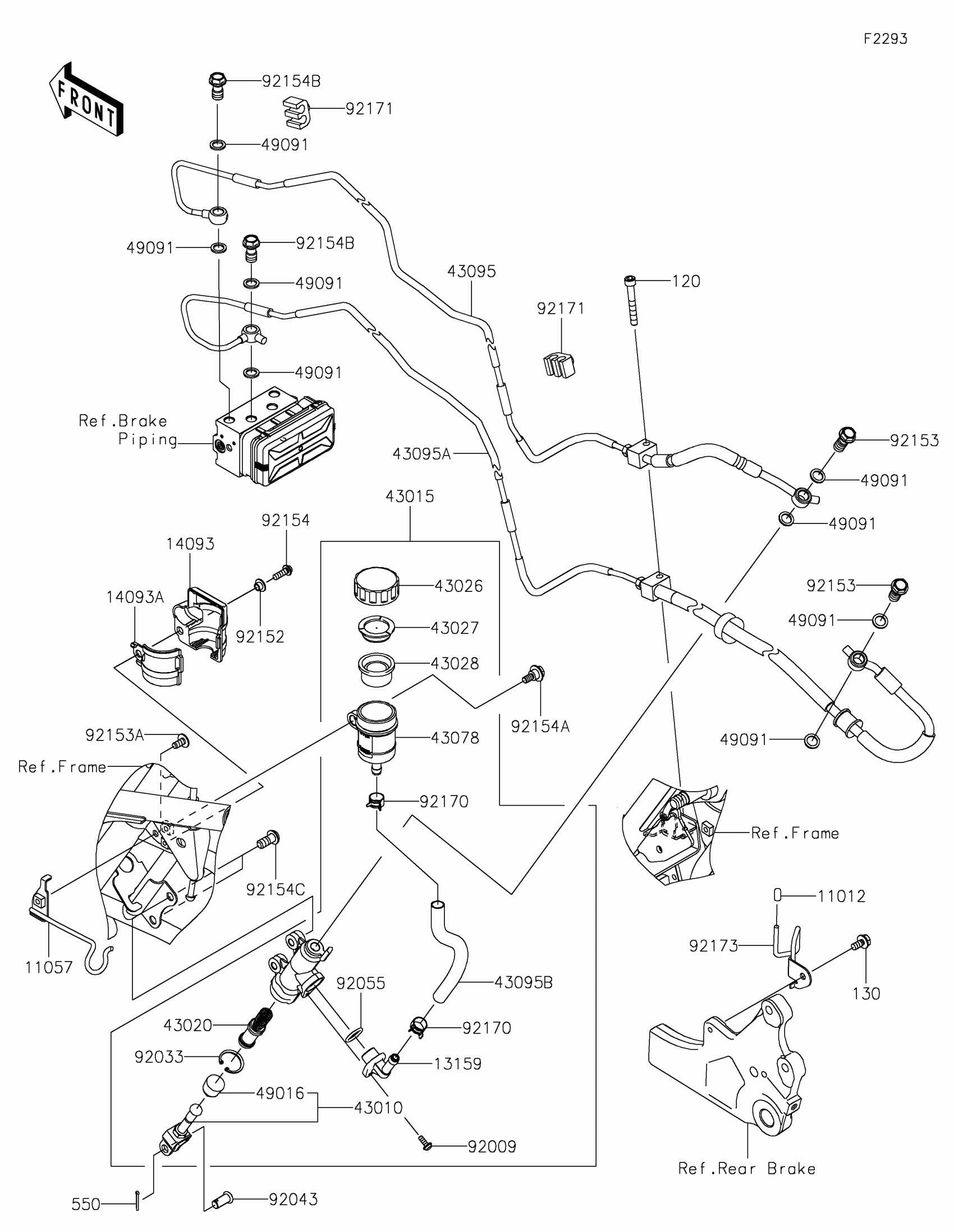

Find the part on the Rear Master Cylinder diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Cafe Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1438

1

$4.39

In stock

11057

1

$1.02

In stock

13159

CONNECTOR

13159-0030

1

$7.59

In stock

14093

COVER,RR RESERVOIR,OUTER

14093-0653

1
Out of stock

14093A

COVER,RR RESERVOIR,INNER

14093-0654

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0027

1

$57.53

In stock

43015

1

$384.90

In stock

43020

1

$67.66

In stock

43026

CAP-BRAKE

43026-0009

1

$38.22

In stock

43027

PLATE-DIAPHRAGM

43027-1053

1

$4.97

In stock

43028

DIAPHRAGM

43028-1065

1

$17.85

In stock

43078

RESERVOIR

43078-0060

1

$33.06

In stock

43095

1

$197.53

In stock

43095A

1

$229.78

In stock

43095B

HOSE-BRAKE

43095-1692

1

$11.95

In stock

49016

1

$12.73

In stock

49091

1

$1.81

In stock

92009

SCREW

92009-1570

1
Out of stock

92033

1

$6.19

In stock

92043

PIN,8X17

92043-0104

1

$3.11

In stock

92055

RING-O,14.8X2.4

92055-0741

1

$2.95

In stock

92152

COLLAR,5.3X7.3X5.3

92152-2190

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,SOCKET,6X12

92153-1617

1

$1.20

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,FLANGED,6X16

92154-0385

1

$3.59

In stock

92154B

BOLT,BANJO,10X19

92154-1554

1

$22.00

In stock

92154C

BOLT,SOCKET,8X18

92154-3919

1

$2.56

In stock

92170

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92171

CLAMP

92171-0818

1

$3.93

In stock

92173

CLAMP,BRAKE HOSE

92173-1933

1

$20.39

In stock

120

BOLT-SOCKET,6X45

120CB0645

1

$3.97

In stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
