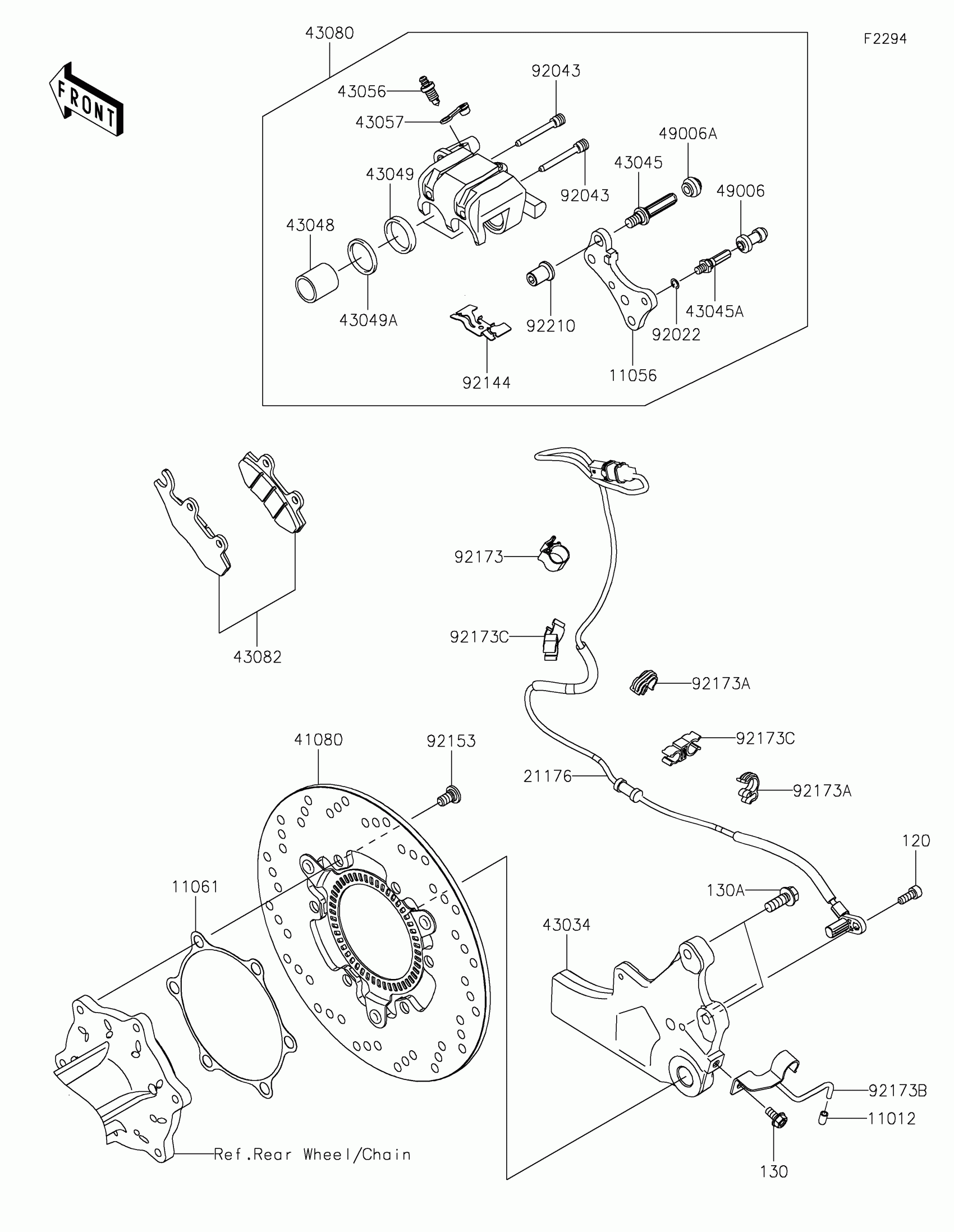

Kawasaki W800 CAFE Rear Brake Diagram

#

Description
Price

11012

CAP

11012-1438

$4.39

11056

BRACKET,CALIPER

11056-0202

$121.79

11061

GASKET

11061-1318

$15.56

21176

SENSOR,ABS,RR

21176-0922

$128.39

41080

DISC,RR

41080-0698

$476.92

43034

HOLDER-BRAKE

43034-0154

$149.98

43045

SHAFT-CALIPER

43045-0004

$21.58

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1066

$74.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0096-25S

$397.40

43082

PAD-ASSY-BRAKE

43082-0128

$41.69

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92153

BOLT,SOCKET,8X15

92153-1548

$3.01

92173

CLAMP,CLIP

92173-0127

$14.78

92173A

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.27

92173B

CLAMP,BRAKE HOSE

92173-2135

$7.59

92173C

CLAMP

92173-2163

$4.15

92210

NUT

92210-0615

$5.46

120

BOLT-SOCKET,6X16

120CB0616

$1.00

130

BOLT-FLANGED,6X12

130BB0612

$1.68

130A

BOLT-FLANGED,8X22

130BC0822

$2.20
