2020 Kawasaki W800 Cafe Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

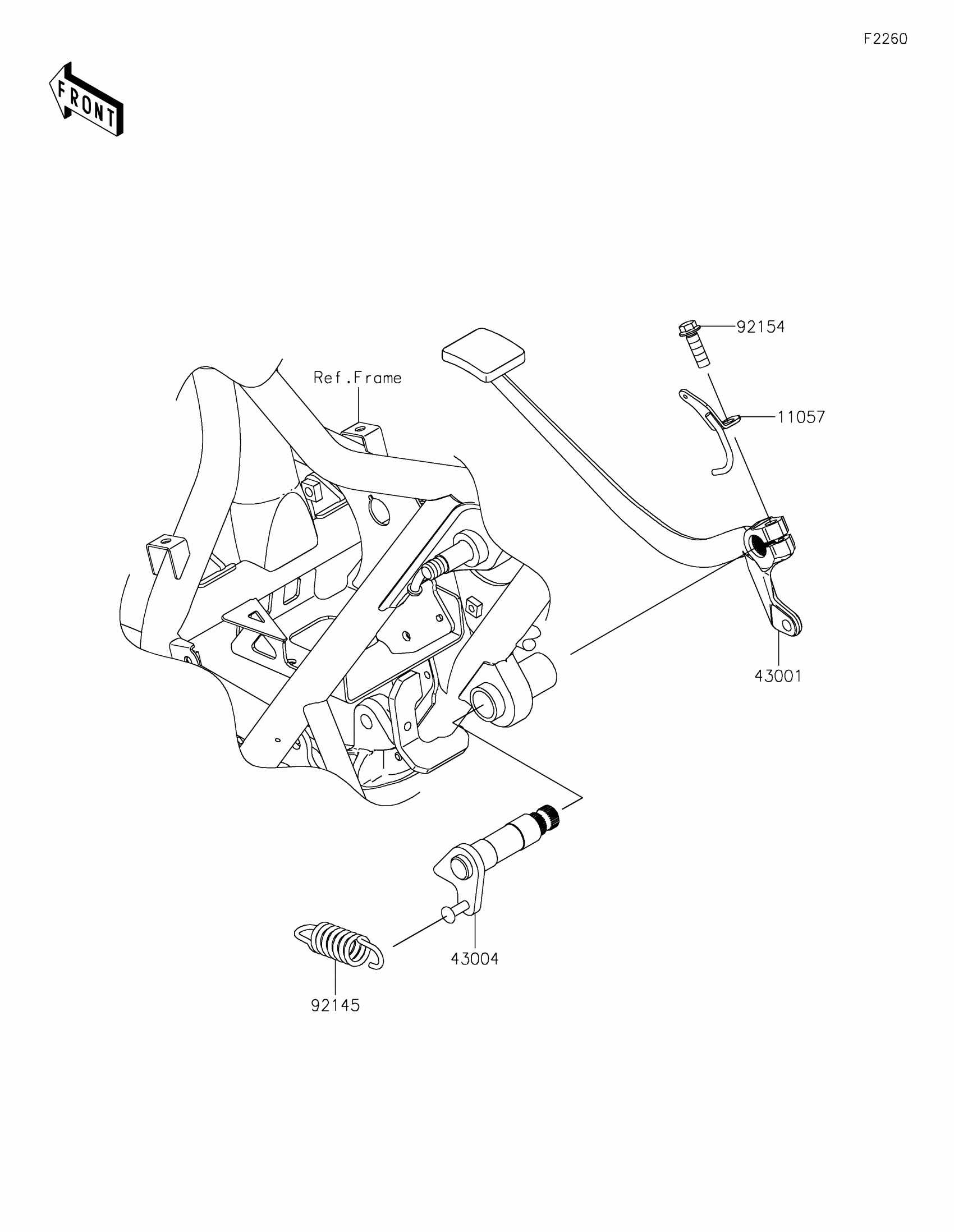

2020 Kawasaki W800 Cafe Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BRAKE SWITCH

11057-2757

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-0763

1
Out of stock

43004

SHAFT-BRAKE

43004-0006

1
Out of stock

92145

SPRING,RETURN

92145-1835

1
Out of stock

92154

BOLT,FLANGED,8X25

92154-1019

1
Out of stock
← Transmission Brake Piping →
