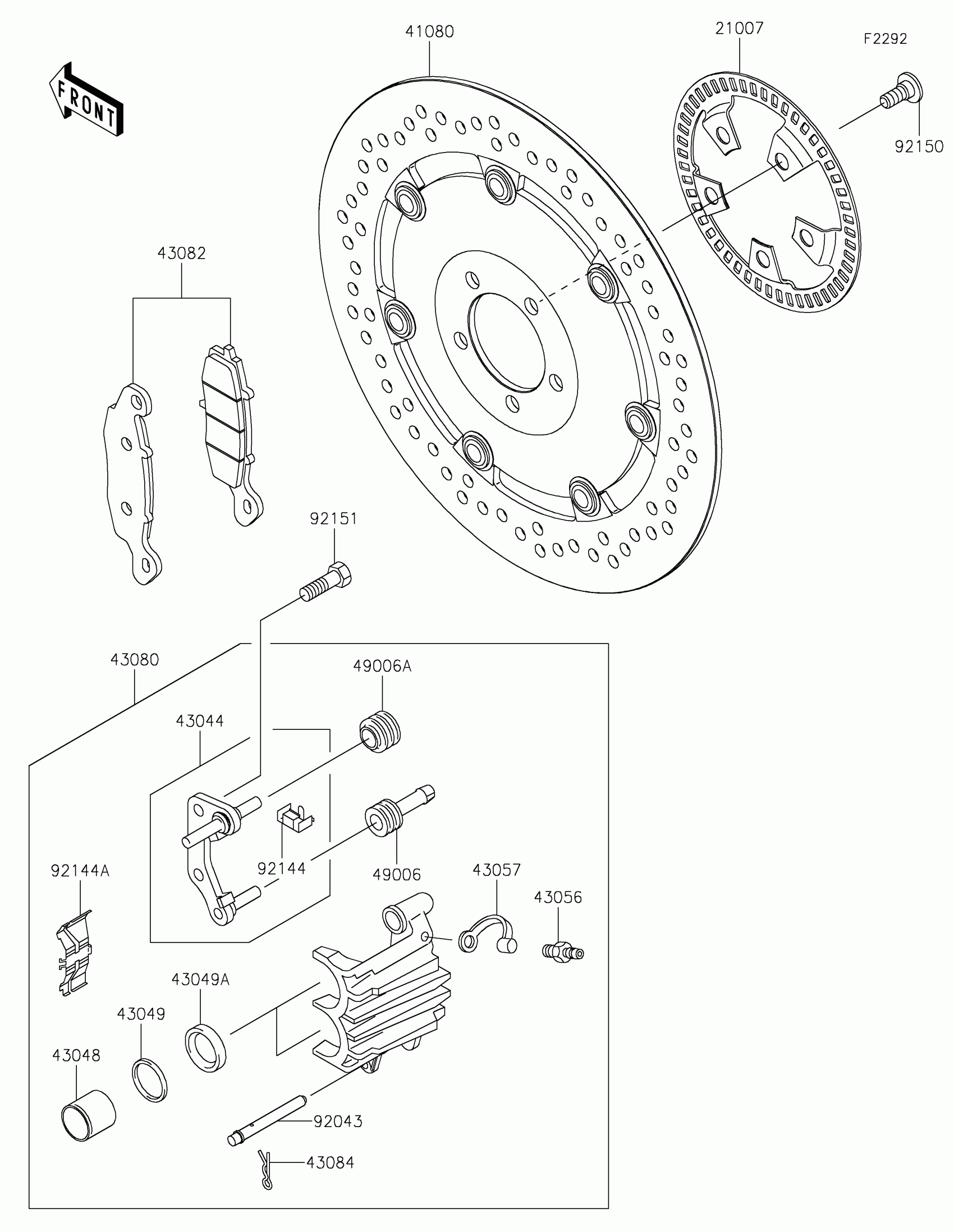

Kawasaki W800 CAFE Front Brake Diagram

Description

Price

21007

ROTOR,SENSOR,FR

21007-0676

$42.10

41080

DISC,FR,BLACK+SIL

41080-0699-5C

$643.88

43044

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$147.38

43048

PISTON-CALIPER

43048-1073

$58.51

43049

PACKING

43049-1068

$7.48

43049A

PACKING,PISTON SEAL

43049-1092

$7.91

43056

BREATHER-BRAKE

43056-0007

$22.39

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5028-DJ

$390.88

43082

PAD-ASSY-BRAKE

43082-0187

$84.70

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,STOPPER

92144-1831

$4.14

92144A

SPRING,PAD,RH

92144-1844

$9.68

92150

BOLT,SOCKET,8X20

92150-1760

$4.93

92151

BOLT,FLANGED,10X38

92151-1288

$4.24
