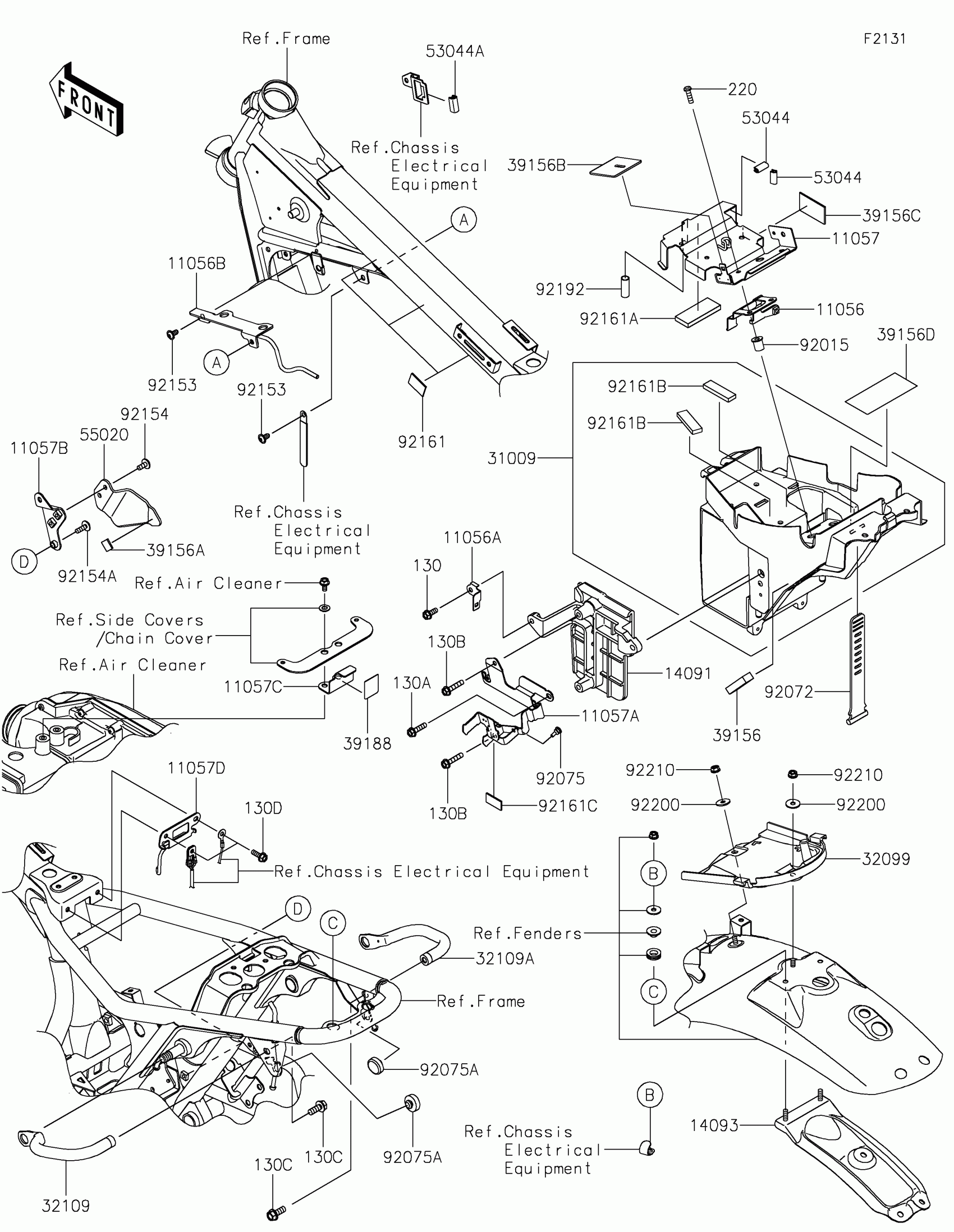

Find the part on the Frame Fittings diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Cafe Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$13.86

In stock

11056A

BRACKET

11056-1274

1
Out of stock

11056B

BRACKET,IGNITION COIL

11056-1550

1
Out of stock

11057

BRACKET,ECU

11057-1859

1
Out of stock

11057A

BRACKET,JUNCTION BOX

11057-1863

1
Out of stock

11057B

BRACKET,BRAKE SWITCH

11057-2854

1
Out of stock

11057C

BRACKET,TANK,RR

11057-2995

1
Out of stock

11057D

BRACKET,TANK,RR

11057-2996

1
Out of stock

14091

COVER,BATTERY

14091-0297

1
Out of stock

14093

COVER,RR HARNESS

14093-0771

1
Out of stock

31009

CASE-COMP-BATTERY

31009-0008

1
Out of stock

32099

CASE,U LOCK

32099-0056

1
Out of stock

32109

GRIP-FRAME,LH

32109-0043

1
Out of stock

32109A

GRIP-FRAME,RH

32109-0044

1
Out of stock

39156

PAD,10X50X15

39156-1726

1

$1.66

In stock

39156A

PAD,15X15X2

39156-2511

1
Out of stock

39156B

PAD,55X55X2

39156-2528

1
Out of stock

39156C

PAD,30X50X2

39156-2531

1
Out of stock

39156D

PAD,100X45X0.21

39156-2551

1
Out of stock

39188

TAPE,27.5X31

39188-0582

1
Out of stock

53044

TRIM,L=22

53044-0681

1
Out of stock

53044A

TRIM,L=22

53044-7503

1

$7.69

In stock

55020

GUARD,BRAKE SWITCH

55020-2280

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92072

BAND,TOOL

92072-0149

1
Out of stock

92075

DAMPER,6X10X15

92075-1808

1
Out of stock

92075A

DAMPER,9X24X14

92075-281

1
Out of stock

92153

BOLT,SOCKET,6X12

92153-1617

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,SOCKET,6X18

92154-2438

1
Out of stock

92161

DAMPER,30X20X2

92161-0833

1
Out of stock

92161A

DAMPER

92161-0903

1
Out of stock

92161B

DAMPER,15X50X6

92161-0905

1
Out of stock

92161C

DAMPER,15X30X2

92161-1394

1
Out of stock

92192

TUBE,7X8X50

92192-1005

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-2231

1
Out of stock

92210

NUT,FLANGED,6MM

92210-1671

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

130B

BOLT-FLANGED,6X30

130BA0630

1

$1.31

In stock

130C

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

130D

BOLT-FLANGED,6X18

130BB0618

1

$1.54

In stock

220

SCREW-PAN-CROS,6X20

220AA0620

1
Out of stock
