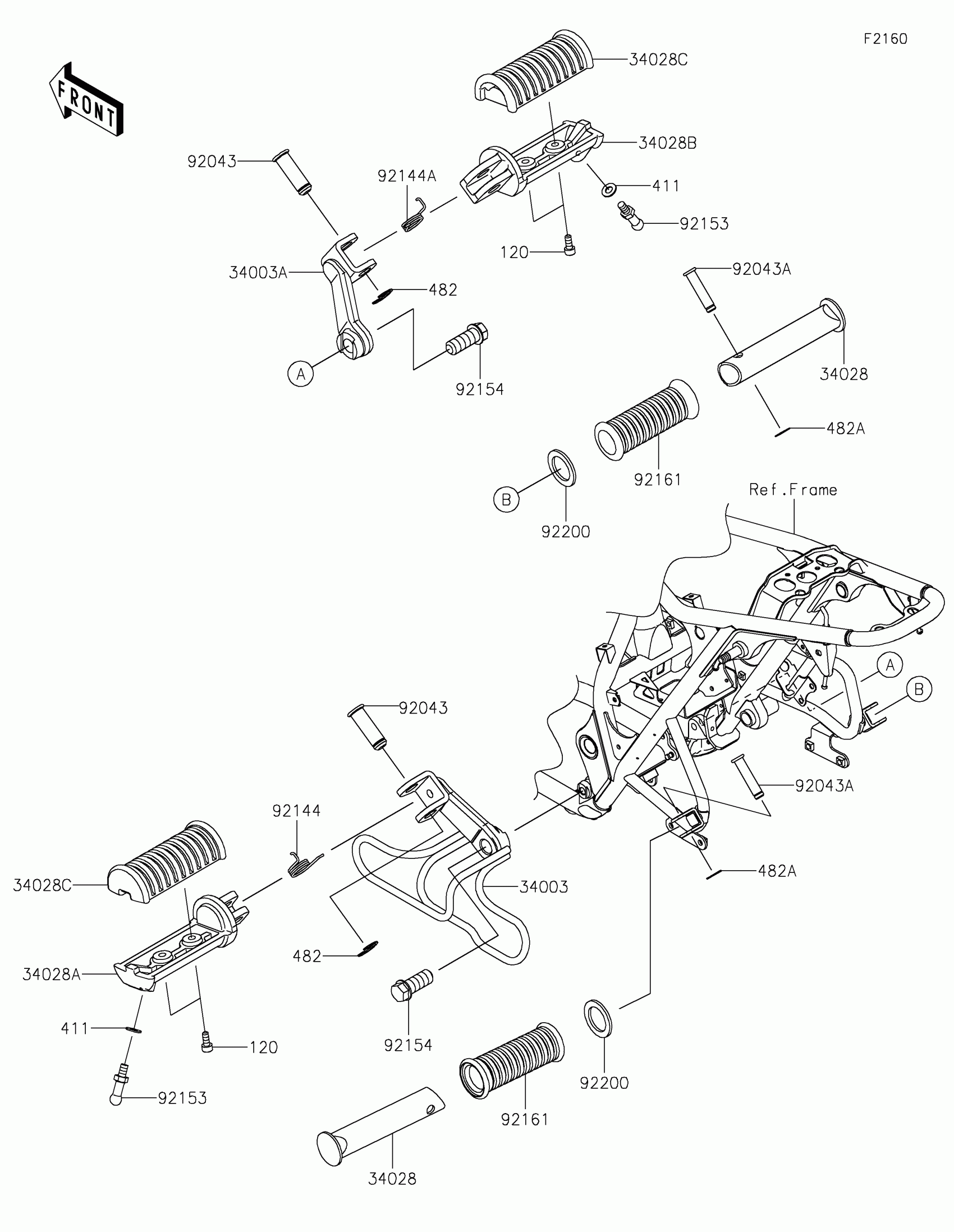

Kawasaki W800 CAFE Footrests Diagram

Description

Price

34003

HOLDER-STEP,FR,LH

34003-0180

$201.85

34003A

HOLDER-STEP,FR,RH

34003-0181

$89.08

34028

STEP,RR

34028-0017

$21.92

34028A

STEP,FR,LH

34028-0316

$45.40

34028B

STEP,FR,RH

34028-0317

$45.40

34028C

STEP,RUBBER

34028-1372

$19.40

92043

PIN,12X37

92043-0150

$10.85

92043A

PIN,8X36.5

92043-1339

$7.71

92144

SPRING,STEP RETURN

92144-1567

$4.88

92144A

SPRING,STEP RETURN

92144-1568

$4.88

92153

BOLT,BANK SENSOR

92153-0303

$12.19

92154

BOLT,FLANGED,12X30

92154-3889

$8.10

92161

DAMPER,STEP

92161-0232

$15.61

92200

WASHER,22.5X33X2.3

92200-1482

$2.25

120

BOLT-SOCKET,5X12

120CB0512

$1.30

411

WASHER-PLAIN,6MM

411AB0600

$0.95

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

482A

CIRCLIP-TYPE-E

482EA7000

$2.99
