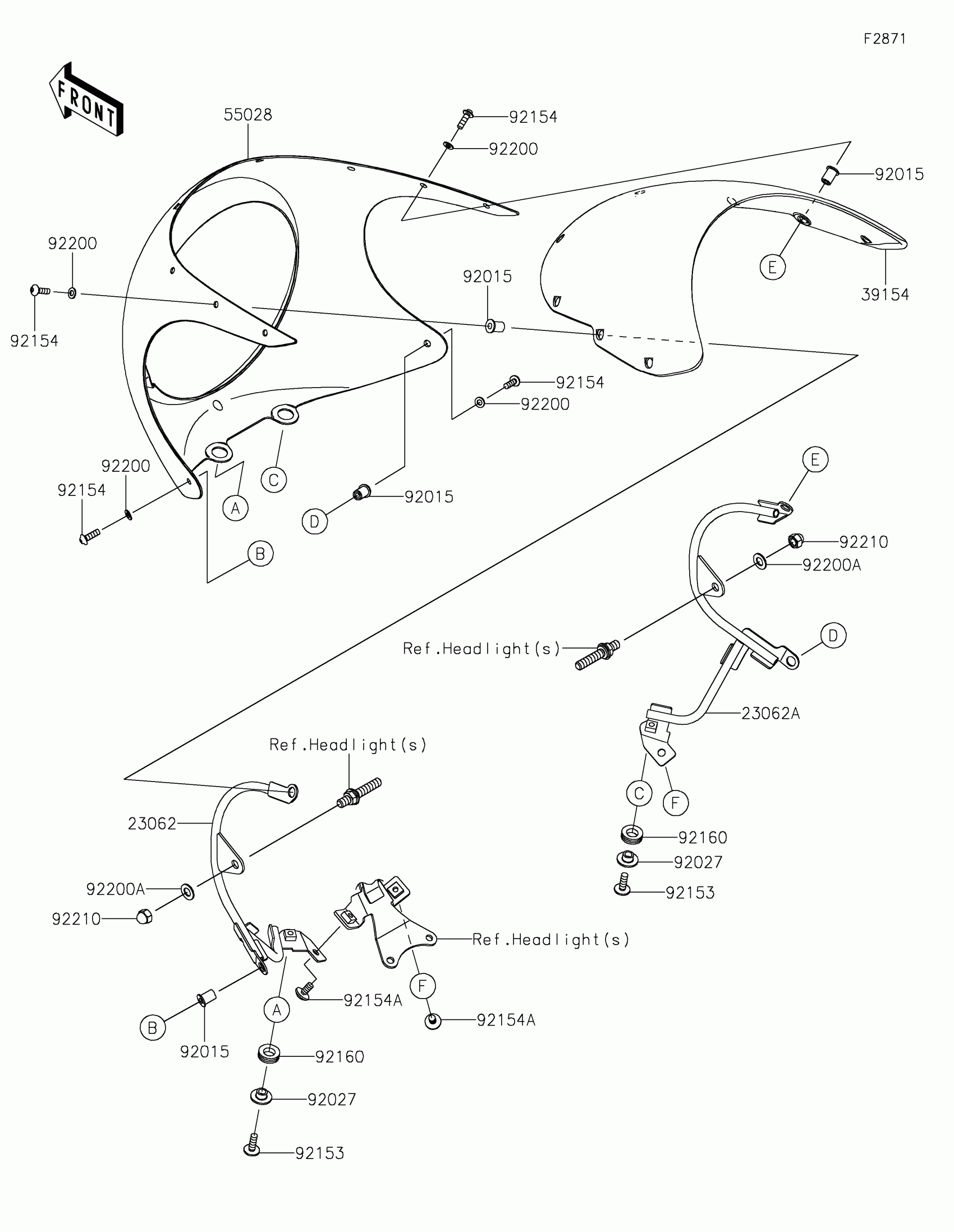

Kawasaki W800 CAFE Cowling Diagram

Description

Price

23062

BRACKET-COMP,COWL,LH

23062-1219

$57.21

23062A

BRACKET-COMP,COWL.,RH

23062-1220

$65.43

39154

WINDSHIELD

39154-0383

$142.15

55028

COWLING,UPP,G.SILVER

55028-0696-474

$660.72

92015

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR,L=7.4

92027-1848

$3.57

92153

BOLT,6X18

92153-0816

$1.57

92154

BOLT,SOCKET,5X16

92154-1560

$1.77

92154A

BOLT,SOCKET,6X12

92154-2706

$1.32

92160

DAMPER

92160-1278

$3.35

92200

WASHER,5.2X10X1.0

92200-1820

$0.60

92200A

WASHER,8.5X16X1.2

92200-2296

$3.68

92210

NUT,CAP,8MM

92210-1729

$7.64
