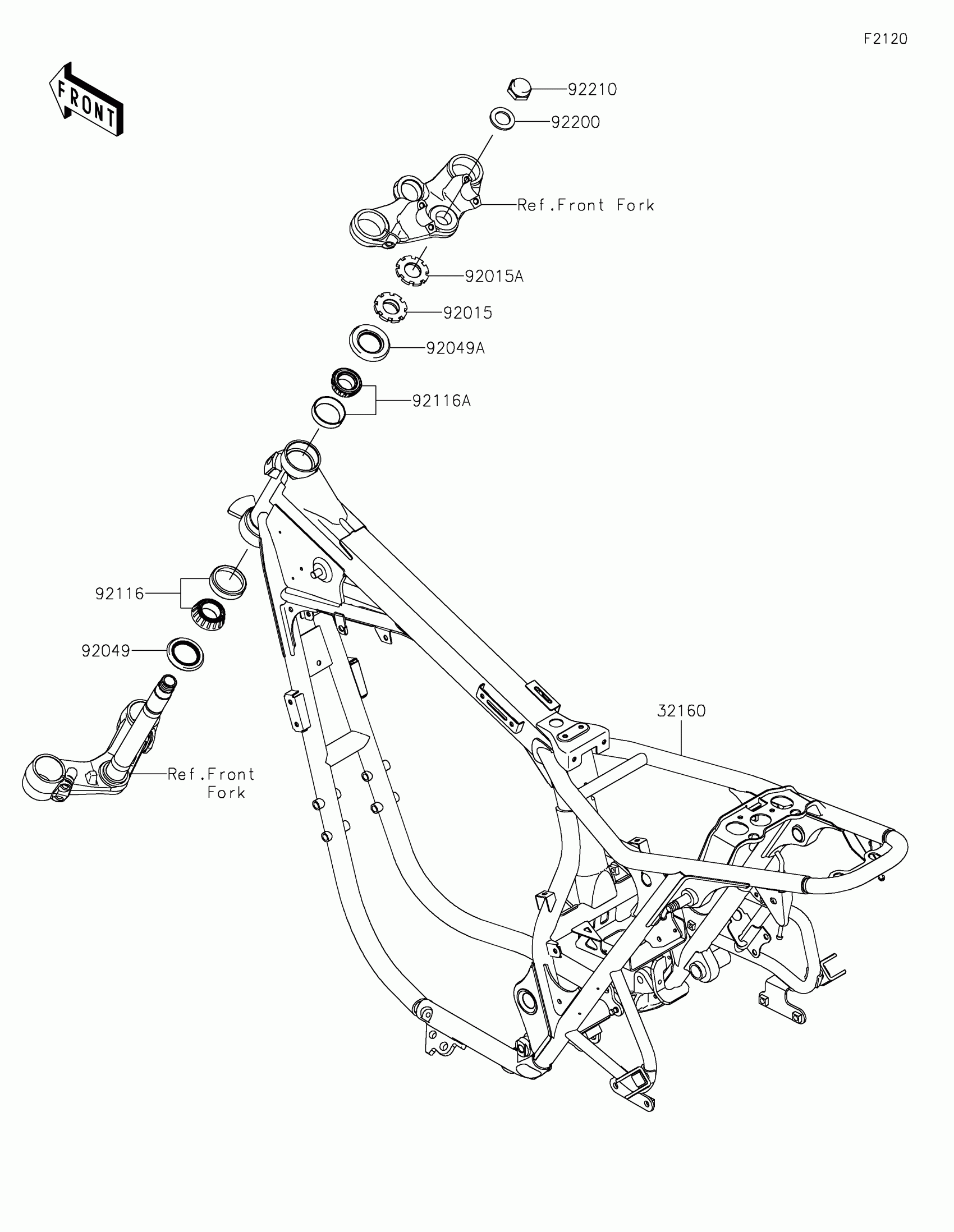

Kawasaki W800 CAFE Frame Diagram

#

Description
Price

32160

FRAME-COMP

32160-0998

$2,581.74

92015

NUT,25MM

92015-1803

$25.61

92015A

NUT,25MM

92015-1810

$19.66

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92049A

SEAL-OIL,STEERING STEM

92049-1214

$12.66

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

$43.76

92200

WASHER,22.5X36X3.2

92200-0134

$8.76

92210

NUT,CAP,22MM

92210-0263

$20.63
