2020 Kawasaki W800 Cafe Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

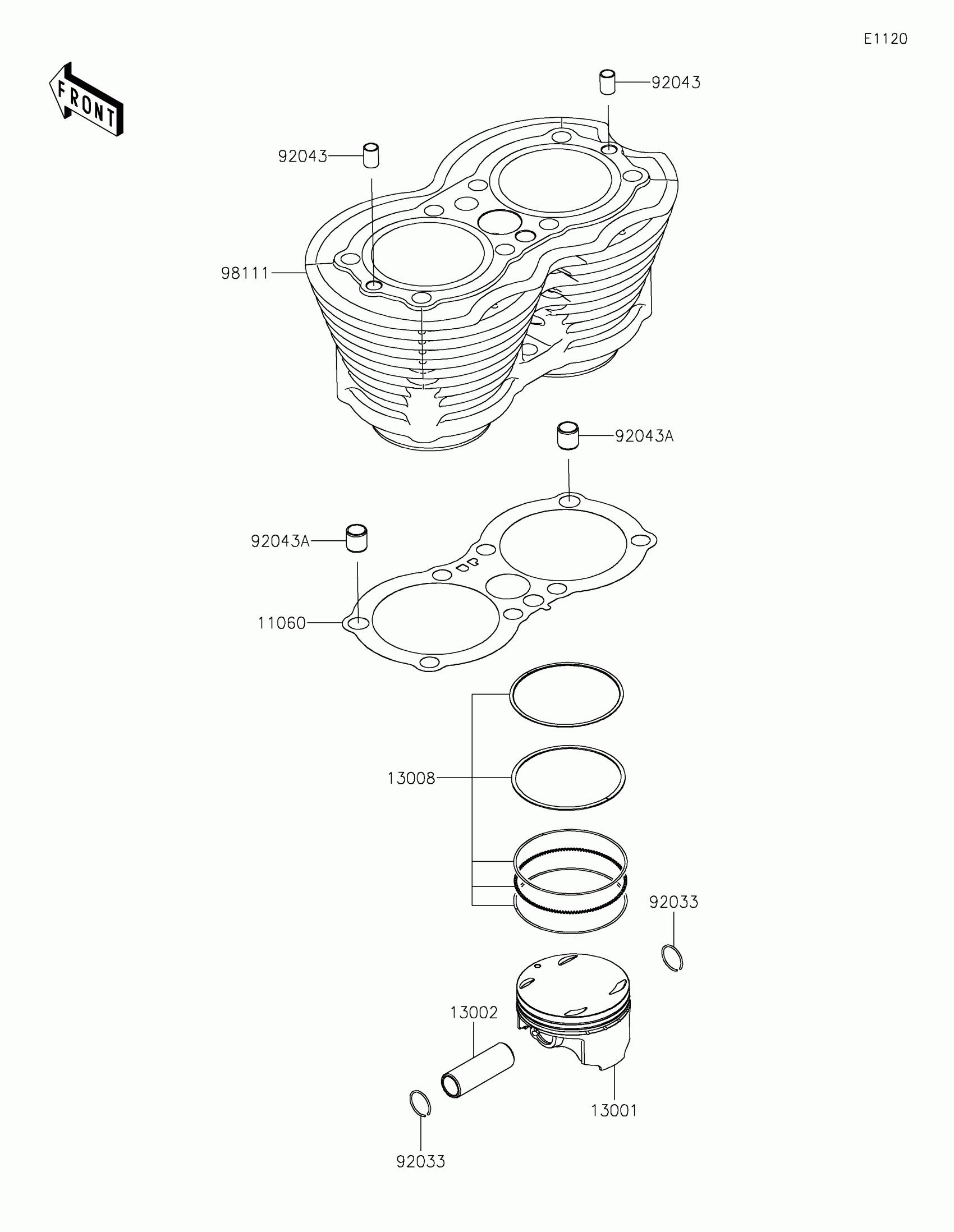

2020 Kawasaki W800 Cafe Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,CYLINDER BASE

11060-1889

1
Out of stock

13001

PISTON-ENGINE

13001-0812

1
Out of stock

13002

PIN-PISTON

13002-1086

1
Out of stock

13008

RING-SET-PISTON

13008-0587

1
Out of stock

92033

RING-SNAP,20.5X1.2

92033-1099

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,11.5X14X14

92043-1279

1
Out of stock

98111

CYLINDER-COMP-ENGINE

98111-0047

1
Out of stock
