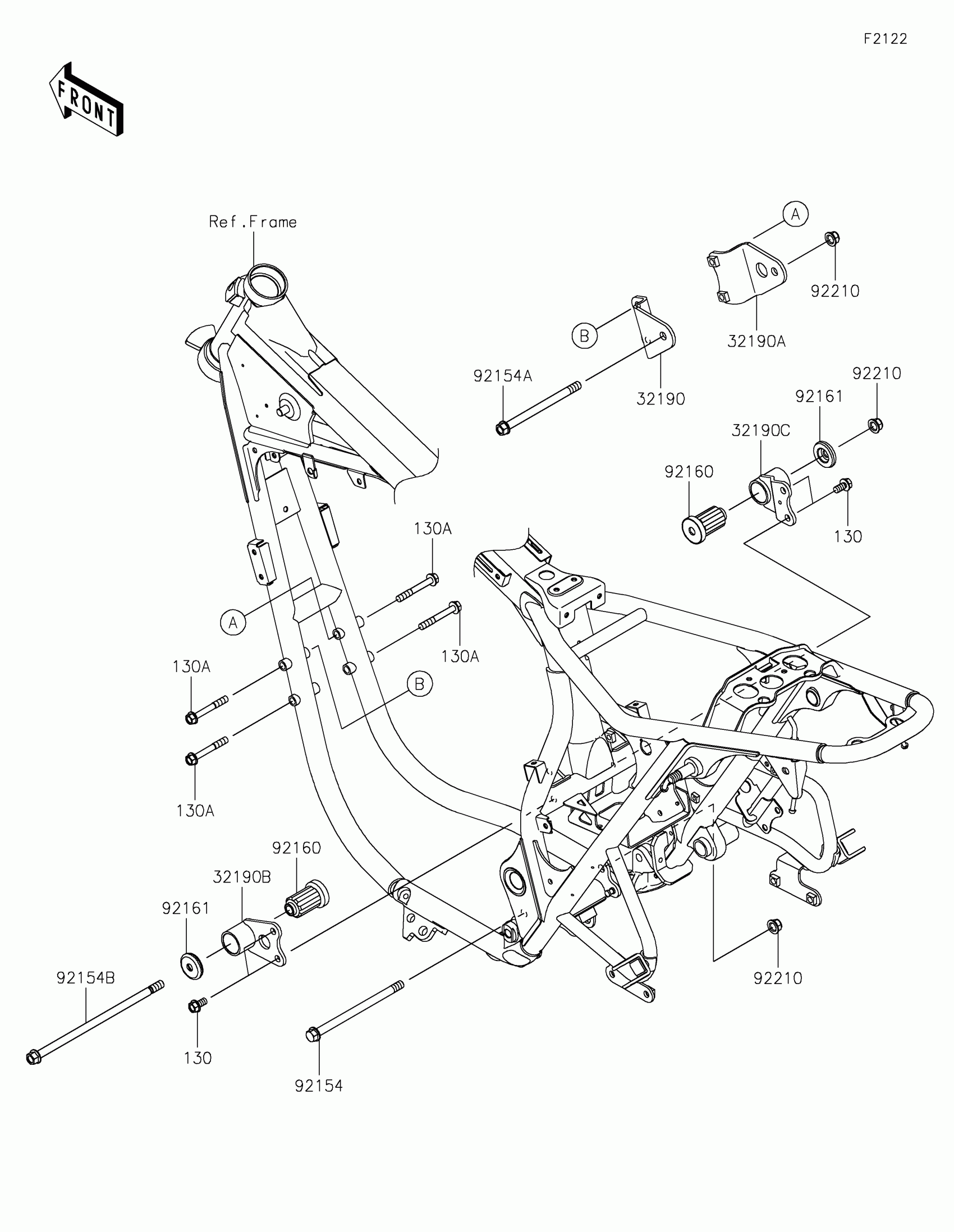

Kawasaki W800 CAFE Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,FR,LH

32190-0473

$17.80

32190A

BRACKET-ENGINE,FR,RH

32190-0474

$18.61

32190B

BRACKET-ENGINE,RR,UPP,LH

32190-1173

$25.12

32190C

BRACKET-ENGINE,RR,UPP,RH

32190-1226

$30.93

92154

BOLT,FLANGED,10X158

92154-0514

$13.34

92154A

BOLT,FLANGED,10X135

92154-3891

$7.59

92154B

BOLT,FLANGED,10X230

92154-3892

$17.46

92160

DAMPER,ENGINE MOUNT

92160-1483

Unavailable

92161

DAMPER

92161-0598

$4.68

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,8X60

130CA0860

$1.28
