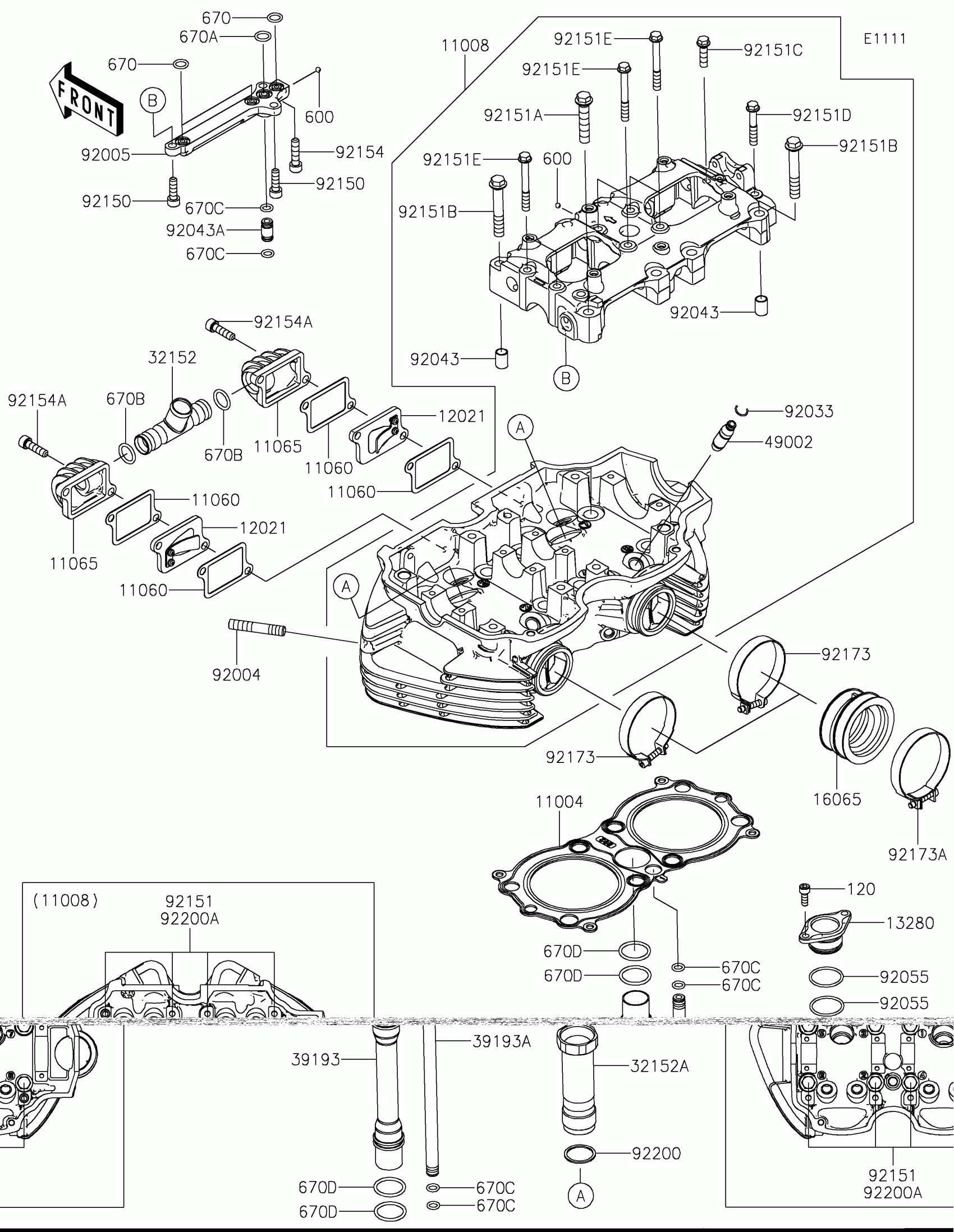

Kawasaki W800 CAFE Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-0095

$91.75

11008

HEAD-COMP-CYLINDER

11008-0955

$1,604.95

11060

GASKET,AIR SUCTION VALVE

11060-1886

$2.76

11065

CAP

11065-1268

$30.07

12021

VALVE-ASSY-REED

12021-0049

$49.12

13280

HOLDER

13280-1118

$21.86

16065

HOLDER-CARBURETOR

16065-0126

$28.98

32152

PIPE,AIR SUCTION VALVE

32152-1900

$40.12

32152A

PIPE,PLUG HOLE

32152-1901

$46.45

39193

PIPE-OIL

39193-0065

$55.16

39193A

PIPE-OIL,CASE-HEAD

39193-1045

$15.00

49002

GUIDE-VALVE

49002-1116

$29.16

92004

STUD,8X30

92004-1121

$4.14

92005

FITTING

92005-1361

$40.12

92033

RING-SNAP

92033-1247

$2.98

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN

92043-1587

$9.80

92055

RING-O,24.7X1.9

92055-1592

$2.19

92150

BOLT,SOCKET,6X20

92150-1880

$3.56

92151

BOLT,11X195

92151-1452

$17.30

92151A

BOLT,8X40

92151-1621

$2.19

92151B

BOLT,8X50

92151-1622

$2.19

92151C

BOLT,6X22

92151-1623

$1.95

92151D

BOLT,6X35

92151-1624

$1.95

92151E

BOLT,6X50

92151-1625

$1.95

92154

BOLT,SOCKET,6X25

92154-0477

$1.43

92154A

BOLT,SOCKET,6X22

92154-0478

$1.66

92173

CLAMP

92173-2123

$10.83

92173A

CLAMP

92173-2124

$4.56

92200

WASHER,22X26X1.2

92200-0746

$1.66

92200A

WASHER,11.5X20.5X1.6

92200-1128

$4.18

120

BOLT-SOCKET,5X14

120CC0514

$1.10

600

BALL-STEEL,1/4

600A0800

$0.59

670

O RING,9MM

670D1509

$3.57

670A

O RING,10MM

670D1510

$3.57

670B

O RING,14MM

670D2014

$4.18

670C

O RING

670E1507

$4.29

670D

O RING,22MM

670E2022

$7.86
