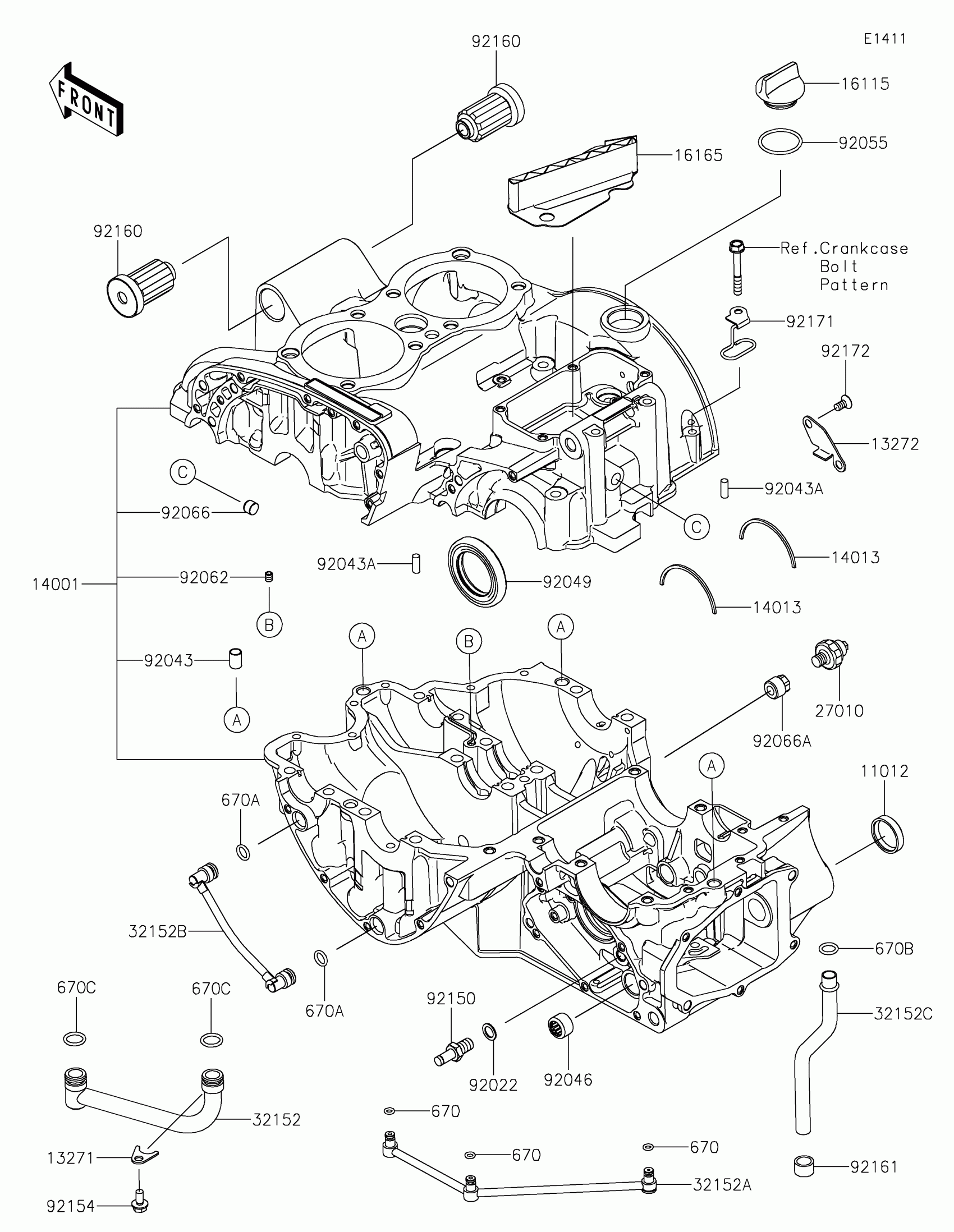

Kawasaki W800 CAFE Crankcase Diagram

#

Description
Price

11012

CAP

11012-1567

$9.49

13271

PLATE,OIL PIPE

13271-1187

$2.19

13272

PLATE,BREATHER

13272-0982

$3.29

14001

SET-CRANKCASE

14001-0694

$1,071.89

14013

RING-POSITION,T=1.98

14013-1004

$3.78

16115

CAP-OIL FILLER

16115-1009

$10.86

16165

SEPARATOR,BREATHER

16165-1068

$33.74

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32152

PIPE,MAIN OIL

32152-1902

$43.29

32152A

PIPE,TRANSMISSION OIL

32152-1903

$58.53

32152B

PIPE,BALANCER OIL

32152-1904

$58.53

32152C

PIPE,BREATHER OIL

32152-1905

$16.56

92022

WASHER,10X15X1.0

92022-1973

$4.17

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,6X16

92043-1690

$3.81

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL,HTC40628

92049-1501

$7.73

92055

RING-O,31.5X2.6

92055-049

$3.29

92062

NOZZLE,6X8,BLACK

92062-1079

$8.37

92066

PLUG,10.5MM

92066-1355

$5.37

92066A

PLUG,MAIN GALLERY

92066-1530

Unavailable

92150

BOLT,RETURN SPRING

92150-1803

$9.22

92154

BOLT,FLANGED,6X12

92154-0485

$1.44

92160

DAMPER,ENGINE MOUNT

92160-1483

Unavailable

92161

DAMPER

92161-0971

$3.29

92171

CLAMP,DRAIN TUBE

92171-1124

$13.54

92172

SCREW-CSK-CROS,6X12

92172-0747

$0.85

670

O RING

670D1505

$3.29

670A

O RING,10MM

670D2010

$1.41

670B

O RING,12MM

670D2012

$2.19

670C

O RING,14MM

670D2014

$4.18
