2002 Kawasaki W650 (Canada Only) Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

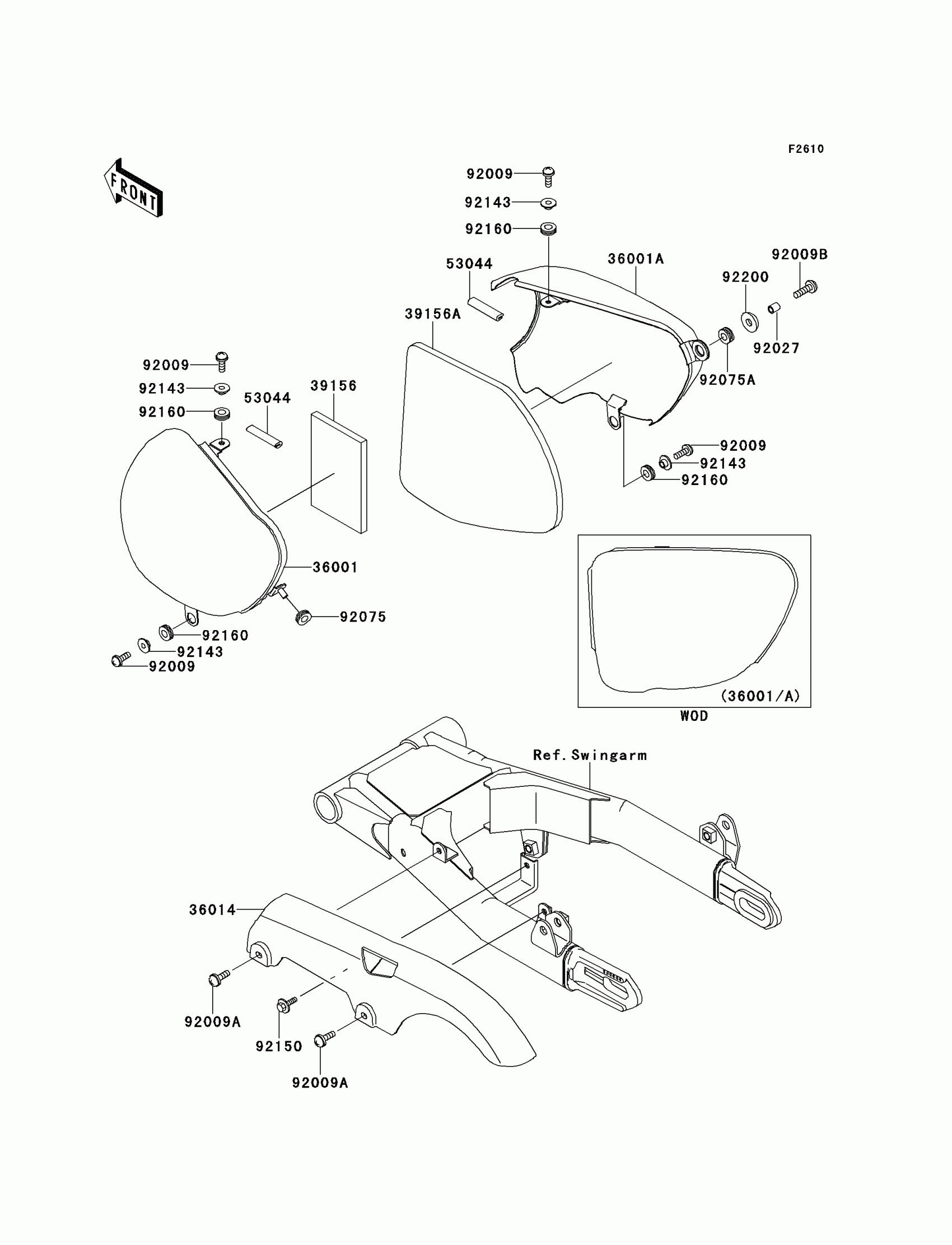

2002 Kawasaki W650 (Canada Only) Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,EBONY

36001-1632-H8

1
Out of stock

36001A

COVER-SIDE,RH,EBONY

36001-1636-H8

1
Out of stock

36014

CASE-CHAIN

36014-1234

1
Out of stock

39156

PAD,SIDE COVER,LH

39156-1635

1
Out of stock

39156A

PAD,SIDE COVER,RH

39156-1636

1
Out of stock

53044

TRIM,L=40

53044-1320

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92009A

SCREW,6X12

92009-1877

1
Out of stock

92009B

SCREW,6X20

92009-3763

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

92143

COLLAR,L=7.4

92143-1019

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92200

WASHER

92200-1153

1
Out of stock
