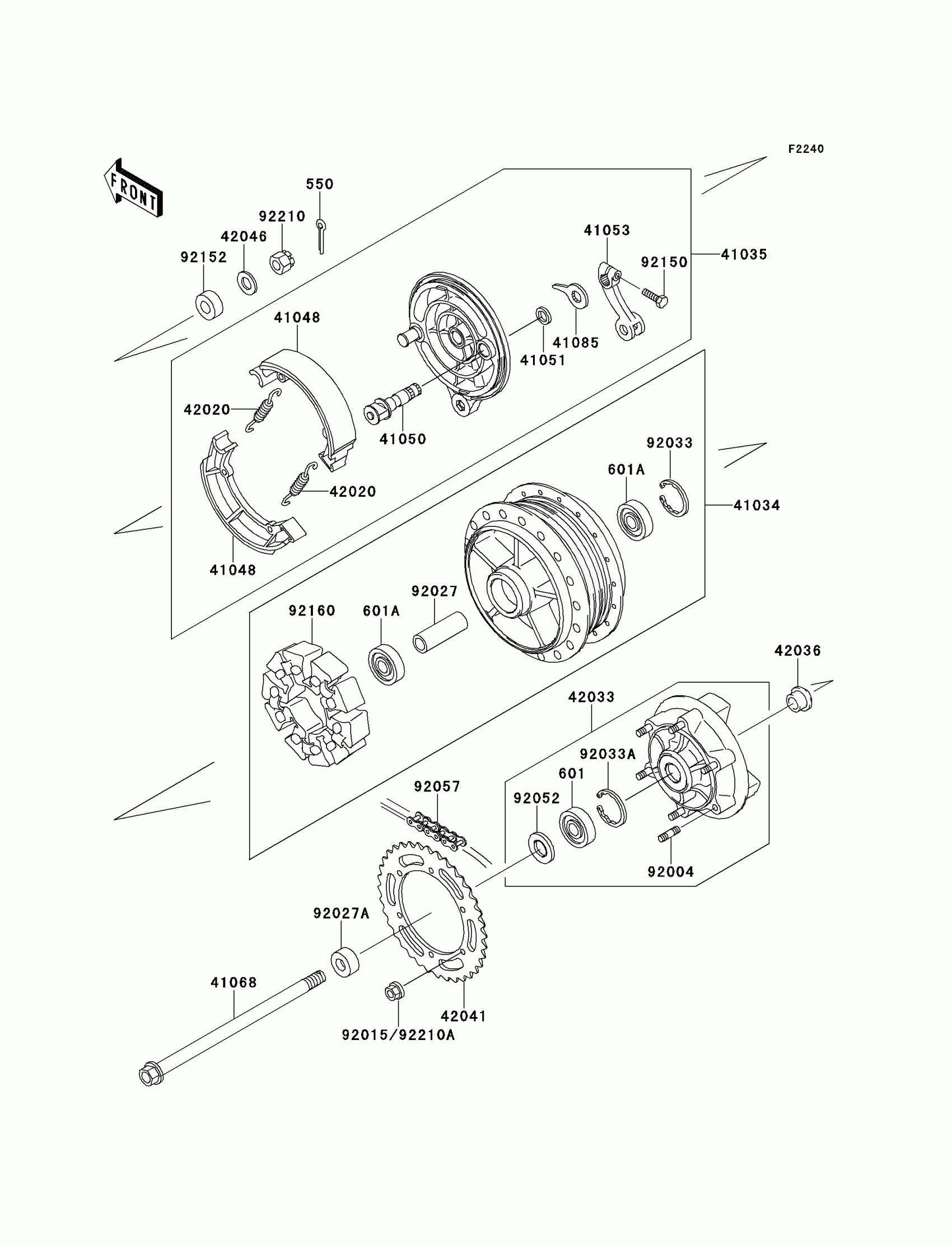

Find the part on the Rear Wheel/chain diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601A

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock

41034

DRUM-ASSY,REAR BRAKE

41034-1298

1
Out of stock

41035

PANEL-ASSY-BRAKE,RR

41035-1509

1
Out of stock

41048

SHOE-BRAKE

41048-1130

1
Out of stock

41050

CAM-BRAKE

41050-1065

1
Out of stock

41051

SEAL,BRAKE CAM

41051-003

1
Out of stock

41053

LEVER-BRAKE CAM

41053-1093

1
Out of stock

41068

AXLE,RR

41068-1413

1
Out of stock

41085

INDICATOR

41085-1060

1
Out of stock

42020

SPRING,BRAKE SHOE

42020-004

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1207

1
Out of stock

42036

SLEEVE,RR AXLE,L=22

42036-1233

1
Out of stock

42041

SPROCKET-HUB,39T

42041-1371

1
Out of stock

42046

WASHER,17.3X32X3.2

42046-009

1
Out of stock

92004

STUD,10X19

92004-1275

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92027

COLLAR,L=104

92027-1714

1
Out of stock

92027A

COLLAR,RR HUB

92027-1784

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,52MM

92033-1043

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK525MV-OX104L

92057-1474

1
Out of stock

92150

BOLT,8X27

92150-1797

1
Out of stock

92152

COLLAR,RR AXLE,RH,L=14.5

92152-1155

1
Out of stock

92160

DAMPER,SHOCK,RR HUB

92160-1524

1
Out of stock

92210

NUT,CASTLE,16MM

92210-1171

1
Out of stock
